Sep 8, 2026

US12733099 - Electronics packaging for moving platforms

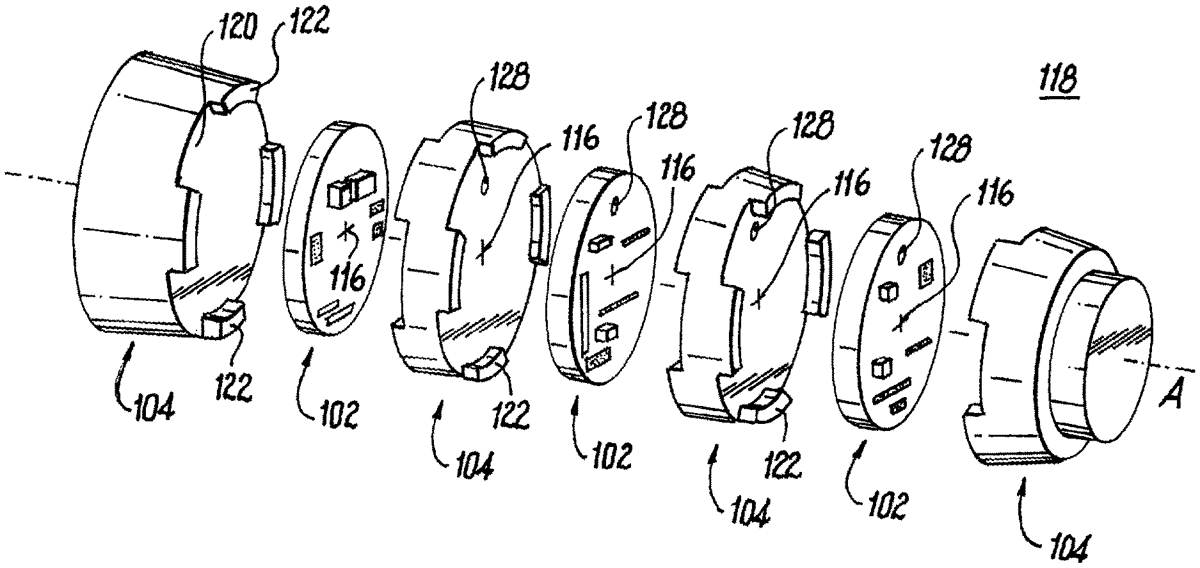

In accordance with at least one aspect of this disclosure, a system includes one or more electronics boards and one or more plates configured to interleave the one or more electronics boards in a stack along an axis. When in the stack, an outer surface of the one or more plates is configured to form an outer mold line of a portion of a moving platform. Each of the one or more plates includes an inner diameter and an outer diameter, where the outer surface has an outer circumference at the outer diameter.

Assignee: Raytheon Company
Inventors: Gary Willenbring, Jason Graham, Neal R. Whatcott, Jacob Modjeski
Filing date: 2022-03-27

This patent describes a system for packaging electronics boards using interleaved plates that create an outer mold line for a moving platform. The design ensures that the plates and boards are stacked efficiently, optimizing space and structural integrity.

Claim 1

1 . A system, comprising: one or more electronics boards; and one or more plates configured to interleave the one or more electronics boards in a stack along an axis, each plate including a face configured to seat against a majority of a face of one of the one or more electronic boards; wherein, in the stack, an outer surface of the one or more plates is configured to form an outer mold line of a portion of an exterior surface of a moving platform, and wherein the outer surface has an outer circumference at an outer diameter of each of the one or more plates. one or more electronics boards; and one or more plates configured to interleave the one or more electronics boards in a stack along an axis, each plate including a face configured to seat against a majority of a face of one of the one or more electronic boards; wherein, in the stack, an outer surface of the one or more plates is configured to form an outer mold line of a portion of an exterior surface of a moving platform, and wherein the outer surface has an outer circumference at an outer diameter of each of the one or more plates.
