Sep 8, 2026

US12729932 - Semi-open pistol storage device

Provided is a semi-open pistol storage device, including a body with an accommodating cavity for storing the pistol. The body is provided with a lock catch structure and an unlocking mechanism. The lock catch structure is provided with a lock catch bracket, and a lock beam assembly. The lock catch bracket is fixedly connected to the body, the lock beam assembly is rotatably connected to the lock catch bracket, and one end of the lock beam assembly, with a rotation radius thereof as a motion trajectory, pass through a trigger guard of the pistol to lock the pistol. The unlocking mechanism is provided with an unlocking bump, which can be used for unlocking the lock catch structure to make the lock beam assembly retract from the trigger guard, thereby releasing the trigger guard and enabling the pistol to be drawn from the storage device.

Assignee: Shenzhen Hanmai Technology Co., Ltd
Inventors: Wenyuan Zhang
Filing date: 2025-03-10

storagepistoldevice

The semi-open pistol storage device features a body with a cavity for storing a pistol, equipped with a lock catch structure and an unlocking mechanism that allows for secure locking and easy access. The design includes a rotatable lock beam assembly that engages the trigger guard of the pistol, enabling the user to unlock and draw the firearm efficiently.

Claim 1

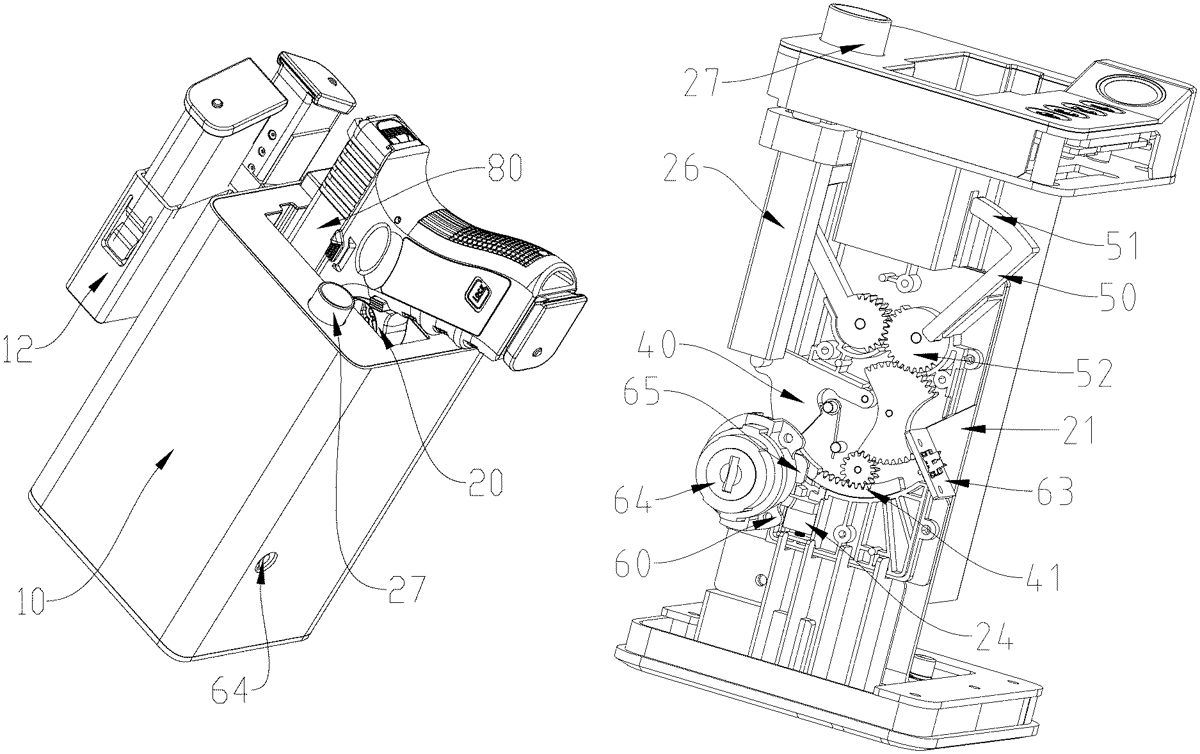

1 . A semi-open pistol storage device, comprising a body ( 10 ) with an accommodating cavity ( 11 ), wherein the accommodating cavity ( 11 ) is used for storing a pistol ( 80 ), the body ( 10 ) is provided with a lock catch structure ( 20 ), and an unlocking mechanism ( 60 ); the lock catch structure ( 20 ) is provided with a lock catch bracket ( 21 ), and a lock beam assembly ( 30 ); the lock catch bracket ( 21 ) is fixedly connected to the body ( 10 ), the lock beam assembly ( 30 ) is rotatably connected to the lock catch bracket ( 21 ), and one end of the lock beam assembly ( 30 ), with a rotation radius thereof as a motion trajectory, pass through a trigger guard ( 81 ) of the pistol ( 80 ) to lock the pistol ( 80 ); the unlocking mechanism ( 60 ) is provided with an unlocking bump ( 61 ), which is able to unlock the lock catch structure ( 20 ) to make the lock beam assembly ( 30 ) retract from the trigger guard ( 81 ), thus releasing the trigger guard ( 81 ) and enabling the pistol ( 80 ) to be drawn from the storage device; wherein the lock beam assembly ( 30 ) is provided with an annular lock beam ( 40 ), the annular lock beam ( 40 ) is rotatably connected to the lock catch bracket ( 21 ) along a center shaft thereof, one end of the annular lock beam is provided with a lock hook ( 44 ), and the other end of the annular lock beam ( 40 ) is provided with a handle post ( 45 ); and by pushing the handle post ( 45 ), the annular lock beam ( 40 ) is able to be rotated by a certain angle, thus enabling the lock hook ( 44 ) to pass through the trigger guard ( 81 ) of the pistol ( 80 ) with a rotation radius as a motion trajectory to lock the pistol ( 80 ). wherein the lock beam assembly ( 30 ) is provided with an annular lock beam ( 40 ), the annular lock beam ( 40 ) is rotatably connected to the lock catch bracket ( 21 ) along a center shaft thereof, one end of the annular lock beam is provided with a lock hook ( 44 ), and the other end of the annular lock beam ( 40 ) is provided with a handle post ( 45 ); and by pushing the handle post ( 45 ), the annular lock beam ( 40 ) is able to be rotated by a certain angle, thus enabling the lock hook ( 44 ) to pass through the trigger guard ( 81 ) of the pistol ( 80 ) with a rotation radius as a motion trajectory to lock the pistol ( 80 ).
