Sep 8, 2026

US12729921 - Charging handle for a firearm

The charging handle for a firearm includes a gas blowback mitigation feature. This gas blowback mitigation feature is configured to reduce the volume of combustion gases exiting beneath the charging handle when firing the host firearm, particularly when a sound suppressor is attached.

Assignee: JA IP Holding, LLC
Inventors: Ryan Vining, Austin Menard, Brandon Elias
Filing date: 2025-09-05

firearmcharginghandle

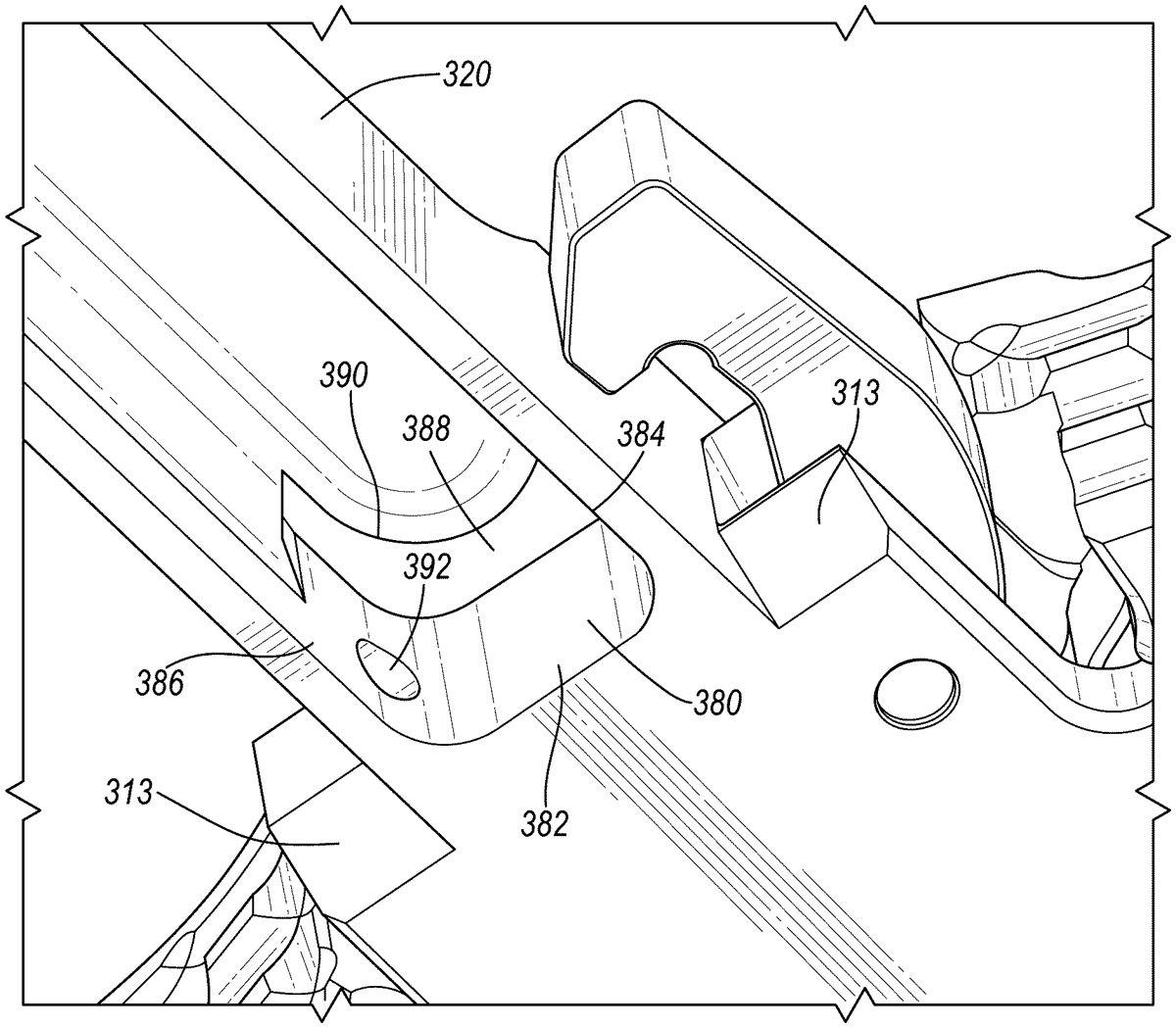

The patent describes a charging handle for firearms that incorporates a gas blowback mitigation feature to minimize the escape of combustion gases, especially when using a sound suppressor. The design includes a central shaft that engages the bolt carrier and features a cutout on its underside to enhance functionality.

Claim 1

1 . A charging handle for a firearm, the charging handle comprising: a body; a central shaft extending forwardly from the body, the central shaft being configured to engage a bolt carrier of the firearm; and a cutout formed in an underside of the central shaft, the cutout defining a cavity bounded by a rear sidewall, two lateral sidewalls, and a bottom. a body; a central shaft extending forwardly from the body, the central shaft being configured to engage a bolt carrier of the firearm; and a cutout formed in an underside of the central shaft, the cutout defining a cavity bounded by a rear sidewall, two lateral sidewalls, and a bottom.
