US12716692 - Portable ballistic shield with integrated weapon bracket

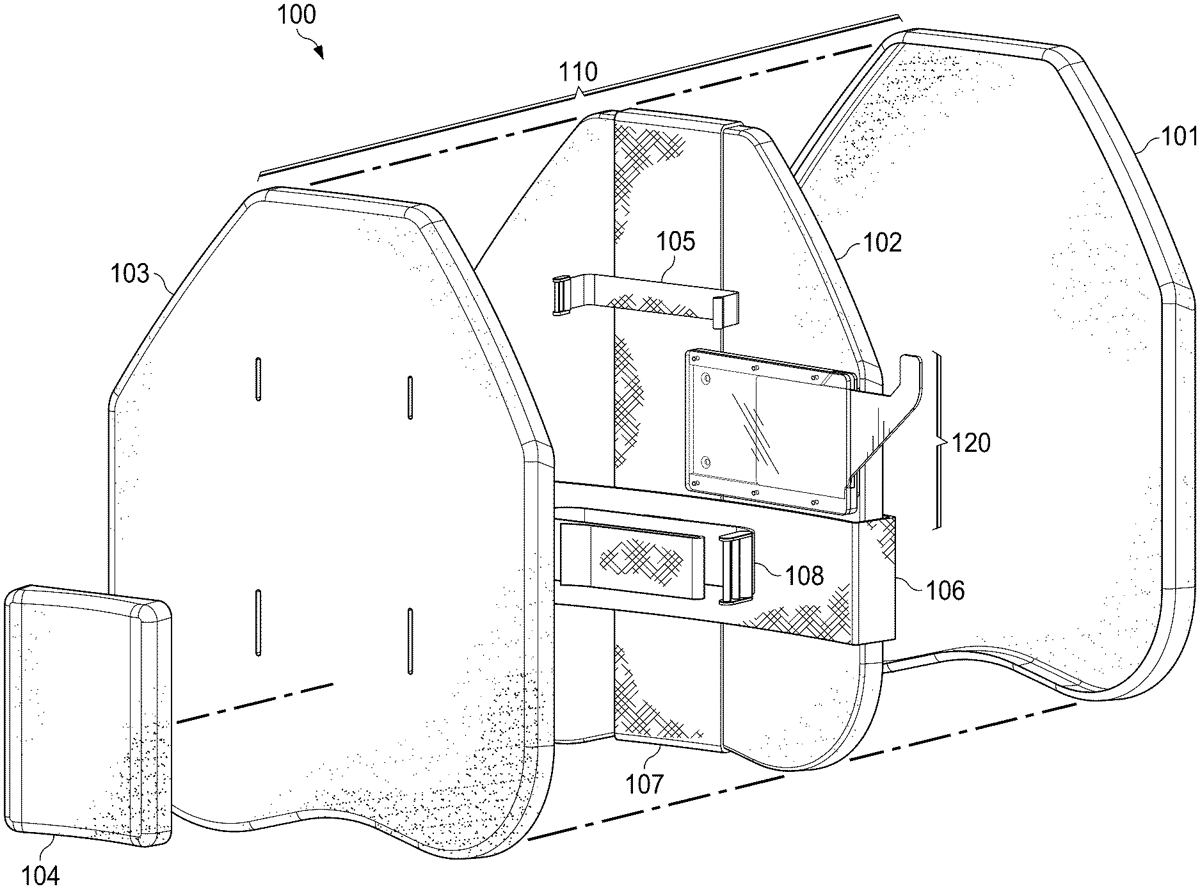

In one example, a portable shield includes a first cover, a second cover, a panel, a panel retention system, and a weapon support bracket. The second cover is configured to couple to the first cover and thereby from a cavity between the first and second covers. The panel is configured to fit within the cavity and to resist penetration of a weapon-fired projectile having a kinetic energy greater than 500 foot-pounds. The panel retention system is coupled to the first or second shield cover and configured to bear the load of the panel and to hold the panel in a fixed place within the cavity. The weapon support bracket is coupled to the panel retention system and has a bracket arm selectively moveable between an extended position and a retracted position. The extended position extends the bracket arm beyond respective edges of the first and second shield covers. The bracket arm provides a surface configured to support the forend portion of a firearm.

Assignee: Hallas IP Group, LLC
Inventors: Kennith Hall
Filing date: 2025-04-08

ballisticshieldfirearmsupport

The patent describes a portable ballistic shield designed to resist high-energy projectiles and includes a weapon support bracket that can be adjusted between extended and retracted positions. This innovative design allows for the secure mounting of a firearm while providing protection to the user.

Claim 1

1 . A portable shield, comprising: a first cover; a second cover configured to couple to the first cover and to thereby form a cavity between the first and second covers; a panel configured to fit within the cavity and to resist penetration of a projectile having a kinetic energy greater than 500 foot-pounds; a panel retention system coupled to the first or second shield cover and configured to bear the load of the panel and to hold the panel in a fixed place within the cavity; and a weapon support bracket coupled to the panel retention system and having a bracket arm selectively moveable between an extended position and a retracted position, the extended position extending the bracket arm beyond respective edges of the first and second shield covers, the bracket arm providing a surface configured to support the forend portion of a firearm. a first cover; a second cover configured to couple to the first cover and to thereby form a cavity between the first and second covers; a panel configured to fit within the cavity and to resist penetration of a projectile having a kinetic energy greater than 500 foot-pounds; a panel retention system coupled to the first or second shield cover and configured to bear the load of the panel and to hold the panel in a fixed place within the cavity; and a weapon support bracket coupled to the panel retention system and having a bracket arm selectively moveable between an extended position and a retracted position, the extended position extending the bracket arm beyond respective edges of the first and second shield covers, the bracket arm providing a surface configured to support the forend portion of a firearm.
