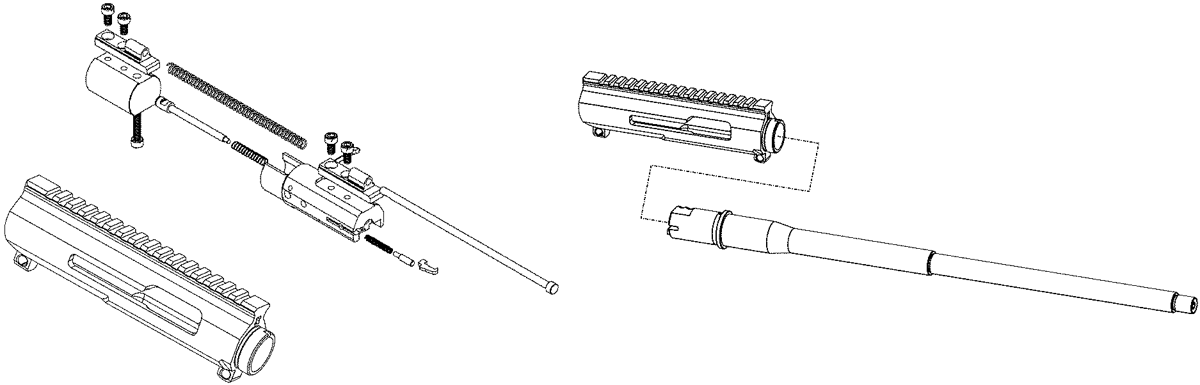

USD1142811 - Firearm upper assembly
firearmupper assembly
This patent grant covers the ornamental design of a firearm upper assembly, detailing its unique visual characteristics. The design aims to enhance the aesthetic appeal of the firearm while maintaining functionality.
Claim 1
The ornamental design for a firearm upper assembly, as shown and described.
Google Patents
https://patents.google.com/patent/USD1142811
USPTO PDF
https://image-ppubs.uspto.gov/dirsearch-public/print/downloadPdf/D1142811
