US12710251 - Sight and accessory mount assembly for a firearm

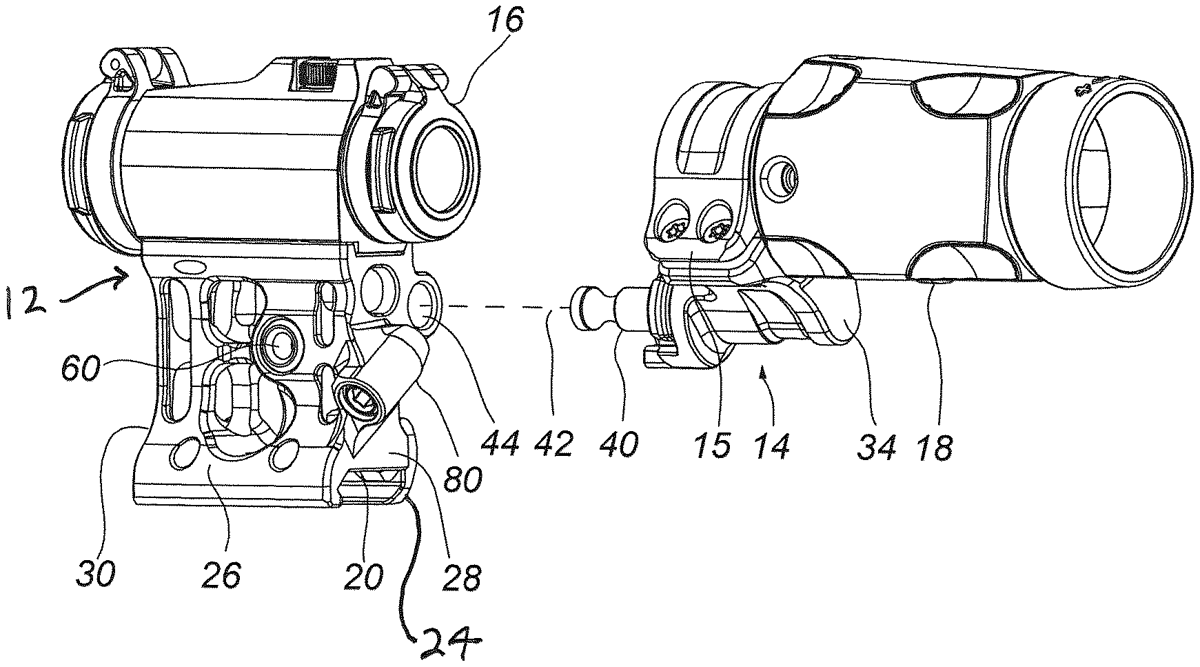

A sight and accessory mount assembly for a firearm having a rail includes a sight mount configured to carry a sight, and an accessory mount configured to carry an accessory. The accessory mount extends rearwardly from, and is pivotally connected to, the sight mount when the sight and accessory mount is attached to the firearm rail. The accessory mount is rotatable between a first end position and a second end position relative to the first sight mount, wherein in the first end position the accessory mount and an accessory that may be carried by the accessory mount are aligned with the sight mount and a sight that may be carried by the sight mount, and in the second end position the accessory mount and an accessory that may be carried by the accessory mount are pivoted away from the sight mount.

Assignee: Spuhr i Dalby AB
Inventors: Håkan Spuhr
Filing date: 2024-05-01

firearmaccessorysightmount

The patent describes a sight and accessory mount assembly for firearms that allows for the attachment of a sight and an accessory on a rail system, with the accessory mount pivotally connected to the sight mount. This design enables the accessory to be aligned with the sight in one position and pivoted away in another, enhancing versatility and usability.

Claim 1

1 . A sight and accessory mount assembly for a firearm having a rail, the sight and accessory mount assembly comprising: a sight mount configured to carry a sight in a fixed position relative to the rail, and to be attached to the rail with the sight mount positioned at least partly between the sight and the firearm; and an accessory mount configured to carry a firearm accessory, wherein the accessory mount is pivotably connected to the sight mount, and wherein the accessory mount protrudes from the sight mount in a direction aligned with the firearm, wherein the accessory mount is pivotable between a first end position and a second end position relative to the sight, and wherein in the first end position the firearm accessory is aligned with the sight, and in the second end position the firearm accessory is pivoted away from the sight; wherein the sight mount has a rear side and an opposite front side, and wherein the accessory mount extends from one of the rear side and the front side. a sight mount configured to carry a sight in a fixed position relative to the rail, and to be attached to the rail with the sight mount positioned at least partly between the sight and the firearm; and an accessory mount configured to carry a firearm accessory, wherein the accessory mount is pivotably connected to the sight mount, and wherein the accessory mount protrudes from the sight mount in a direction aligned with the firearm, wherein the accessory mount is pivotable between a first end position and a second end position relative to the sight, and wherein in the first end position the firearm accessory is aligned with the sight, and in the second end position the firearm accessory is pivoted away from the sight; wherein the sight mount has a rear side and an opposite front side, and wherein the accessory mount extends from one of the rear side and the front side.
