US12704360 - Carbon fiber ammunition casing

A carbon fiber reinforced ammunition casing consists of a singular piece or two complementary longitudinal half sections coupled together. The half sections are formed with radial edges having complementary tongues and grooves to allow coupling of the half sections to complete the casing. A weld is applied along each seam where the half sections couple together and excess weld material is removed by press proofing. Each singular piece or half section is formed by injection molding or additive manufacturing of a mixture of carbon fiber and polymer.

Assignee: Harold Beal
Inventors: Harold F. Beal, Jordan Tyler Dishman, Connie Diane Jackson
Filing date: 2025-11-25

ammunitioncasingcarbonfiber

The patent describes a method for manufacturing a carbon fiber reinforced ammunition casing using a combination of carbon fiber segments and polymer material, which can be formed into a filament for 3-D printing. The casing can be constructed as a singular piece or as two complementary half sections that are welded together along their seams.

Claim 1

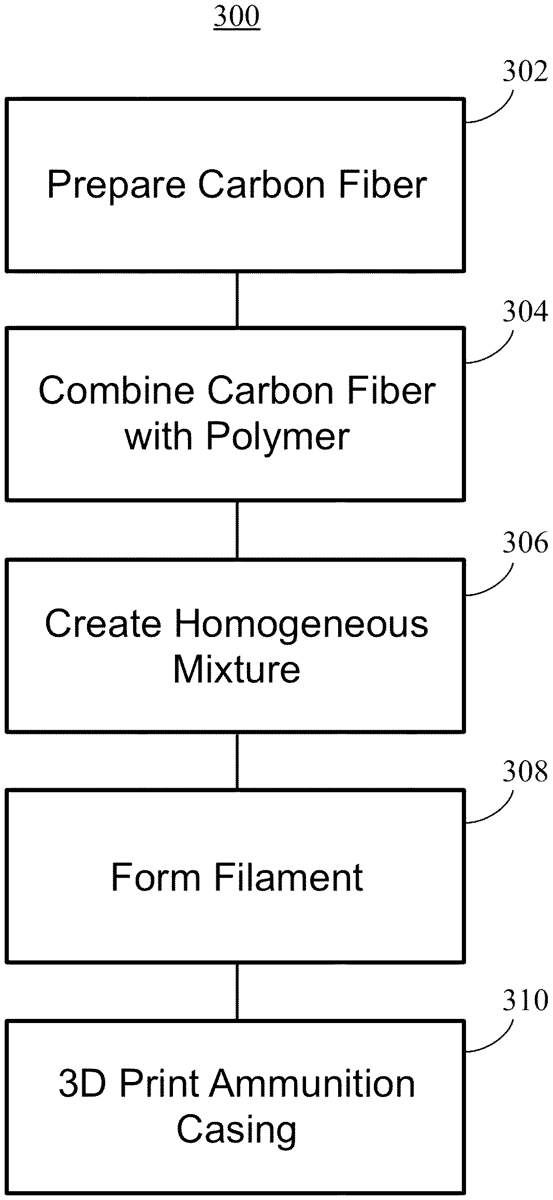

1 . A method for manufacturing an ammunition casing, comprising: preparing a continuous strand of carbon fiber into short carbon fiber segments; combining the short carbon fiber segments with a polymer material; blending the combined short carbon fiber segments and polymer material into a homogeneous mixture, wherein the short carbon fiber segments are shortened further; forming a filament from the homogeneous mixture; and 3-D printing the ammunition casing from the filament. preparing a continuous strand of carbon fiber into short carbon fiber segments; combining the short carbon fiber segments with a polymer material; blending the combined short carbon fiber segments and polymer material into a homogeneous mixture, wherein the short carbon fiber segments are shortened further; forming a filament from the homogeneous mixture; and 3-D printing the ammunition casing from the filament.
