US12704351 - Closable pistol stabilizer assembly

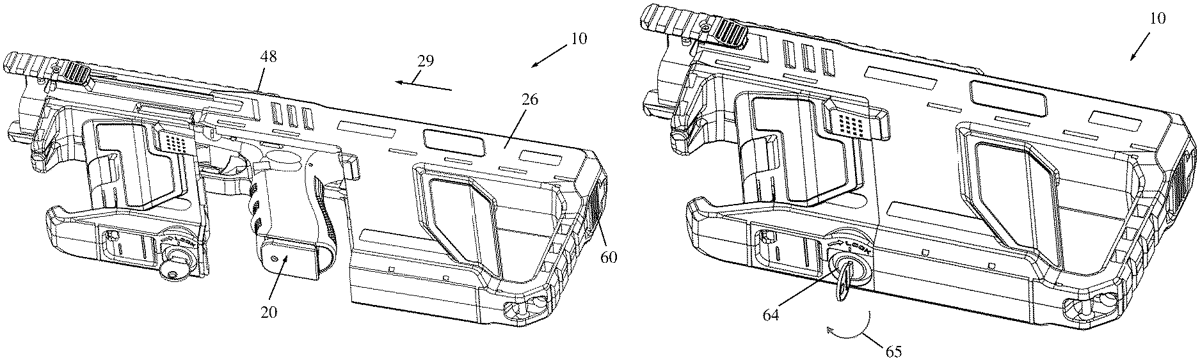

The patent describes a pistol stabilizer assembly that features a chassis with a mounting portion for securely holding a pistol and a buttstock that can be adjusted between closed and extended orientations. In the closed position, the buttstock conceals the pistol, while in the extended position, it allows access to the pistol’s operating components.

Claim 1

1 . A pistol stabilizer assembly comprising: a chassis that has a pistol mounting portion configured to securely support a pistol therein; and a buttstock comprising a forward nose portion that slides along said chassis, wherein in a closed orientation, said buttstock is moved relative to said chassis to couple with said pistol mounting portion, and if a pistol is mounted in said pistol mounting portion, to conceal the pistol, and wherein in an extended orientation, said buttstock is moved relative to said chassis away from said pistol mounting portion to expose operating portions of the pistol. a chassis that has a pistol mounting portion configured to securely support a pistol therein; and a buttstock comprising a forward nose portion that slides along said chassis, wherein in a closed orientation, said buttstock is moved relative to said chassis to couple with said pistol mounting portion, and if a pistol is mounted in said pistol mounting portion, to conceal the pistol, and wherein in an extended orientation, said buttstock is moved relative to said chassis away from said pistol mounting portion to expose operating portions of the pistol.
