US12693099 - Archery tuning system

The archery tuning system includes a target facility with an optical sensor that measures the distance to an archery projectile and calculates intersection points based on this data. Additionally, it features a projectile facility with accelerometers that gather acceleration information, which is processed and transmitted for further analysis.

Claim 1

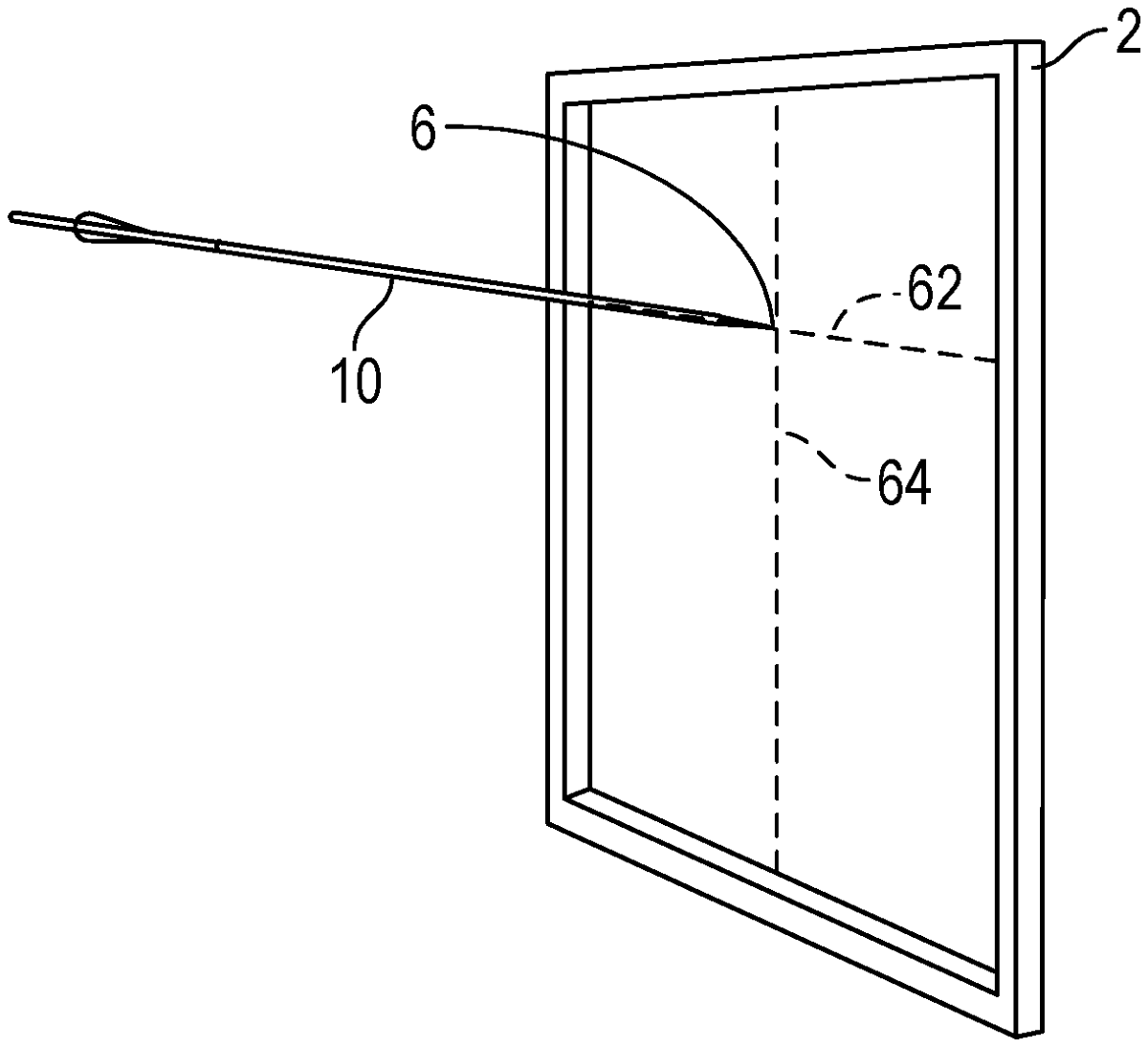

1 . An archery tuning system comprising: an archery target facility, the archery target facility having: a frame providing an interior perimeter; an optical sensor facility connected to the frame, the optical sensor facility adapted to create optical information based on distance measurements from the interior perimeter to an archery projectile present within the interior perimeter of the frame; a target processor adapted to calculate at least two intersection points of the archery projectile within the interior perimeter of the frame, the at least two intersection points based on the optical information; a target transmitter adapted to transmit intersection point information to a receiver; and the receiver including a receiver processor adapted to generate resulting information based on the intersection point information; and an archery projectile facility, the archery projectile facility connected to the archery projectile and having: at least one projectile accelerometer operable to generate projectile acceleration information; a projectile processor operably connected to the at least one projectile accelerometer and adapted to process the projectile acceleration information to generate projectile sampled information; and a projectile transmitter operably connected to the projectile processor and adapted to transmit the projectile sampled information. an archery target facility, the archery target facility having: a frame providing an interior perimeter; an optical sensor facility connected to the frame, the optical sensor facility adapted to create optical information based on distance measurements from the interior perimeter to an archery projectile present within the interior perimeter of the frame; a target processor adapted to calculate at least two intersection points of the archery projectile within the interior perimeter of the frame, the at least two intersection points based on the optical information; a target transmitter adapted to transmit intersection point information to a receiver; and the receiver including a receiver processor adapted to generate resulting information based on the intersection point information; and an archery projectile facility, the archery projectile facility connected to the archery projectile and having: at least one projectile accelerometer operable to generate projectile acceleration information; a projectile processor operably connected to the at least one projectile accelerometer and adapted to process the projectile acceleration information to generate projectile sampled information; and a projectile transmitter operably connected to the projectile processor and adapted to transmit the projectile sampled information.
