US12693094 - Adjustable archery bow sight

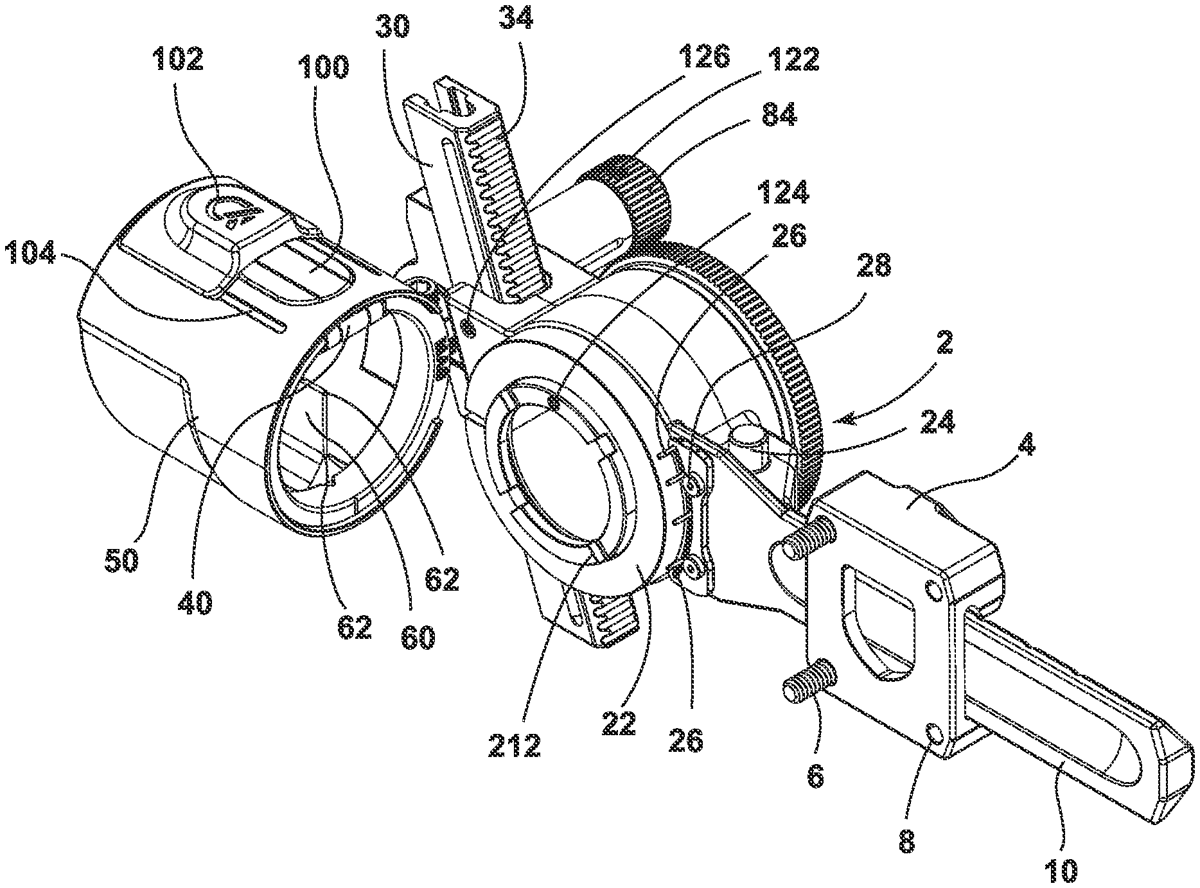

An archery sight with an elevation rail positioned at an angle to the mounting member permits the scope to be sighted for further distances. The scope includes a level positioned at the top of the central opening in the scope housing. A fiber optic cable is also positioned on top of the scope housing to gather the most light. A fiber optic cap can be slid over the fiber optic cable to adjust the amount of light exposure to the fiber optic cable.

Assignee: DIALED ARCHERY, LLC
Inventors: Thad J. Eads, Kyle Davidson, Scott A. Bakken, Taylor Kollman, Jordan Riley
Filing date: 2023-08-25

archerysightbowadjustable

The patent describes an adjustable archery bow sight that features an elevation rail angled to enhance sighting for longer distances, along with a scope that includes a level and a fiber optic cable for improved light exposure. The design allows for lateral movement of the scope in relation to a peep sight on the bow, facilitating precise aiming adjustments.

Claim 1

1 . An archery sight comprising: a mounting member; a dial member coupled to said mounting member, said dial member having a central opening, and a rotatable dial; an elevation rail movably coupled to said dial member, said elevation rail positioned at a non-perpendicular angle with respect to said mounting member; a scope having an inner opening and at least one sight pin; and wherein said scope moves laterally with respect to a peep on a bow when said elevation railed is moved transversely. a mounting member; a dial member coupled to said mounting member, said dial member having a central opening, and a rotatable dial; an elevation rail movably coupled to said dial member, said elevation rail positioned at a non-perpendicular angle with respect to said mounting member; a scope having an inner opening and at least one sight pin; and wherein said scope moves laterally with respect to a peep on a bow when said elevation railed is moved transversely.
