US12687372 - Throwing weapon

The patent describes a throwing weapon featuring a central portion with sharp portions extending both longitudinally and transversely, designed for enhanced aerodynamics and penetration. The sharp portions are structured to include cutting edges, optimizing the weapon’s effectiveness when thrown.

Claim 1

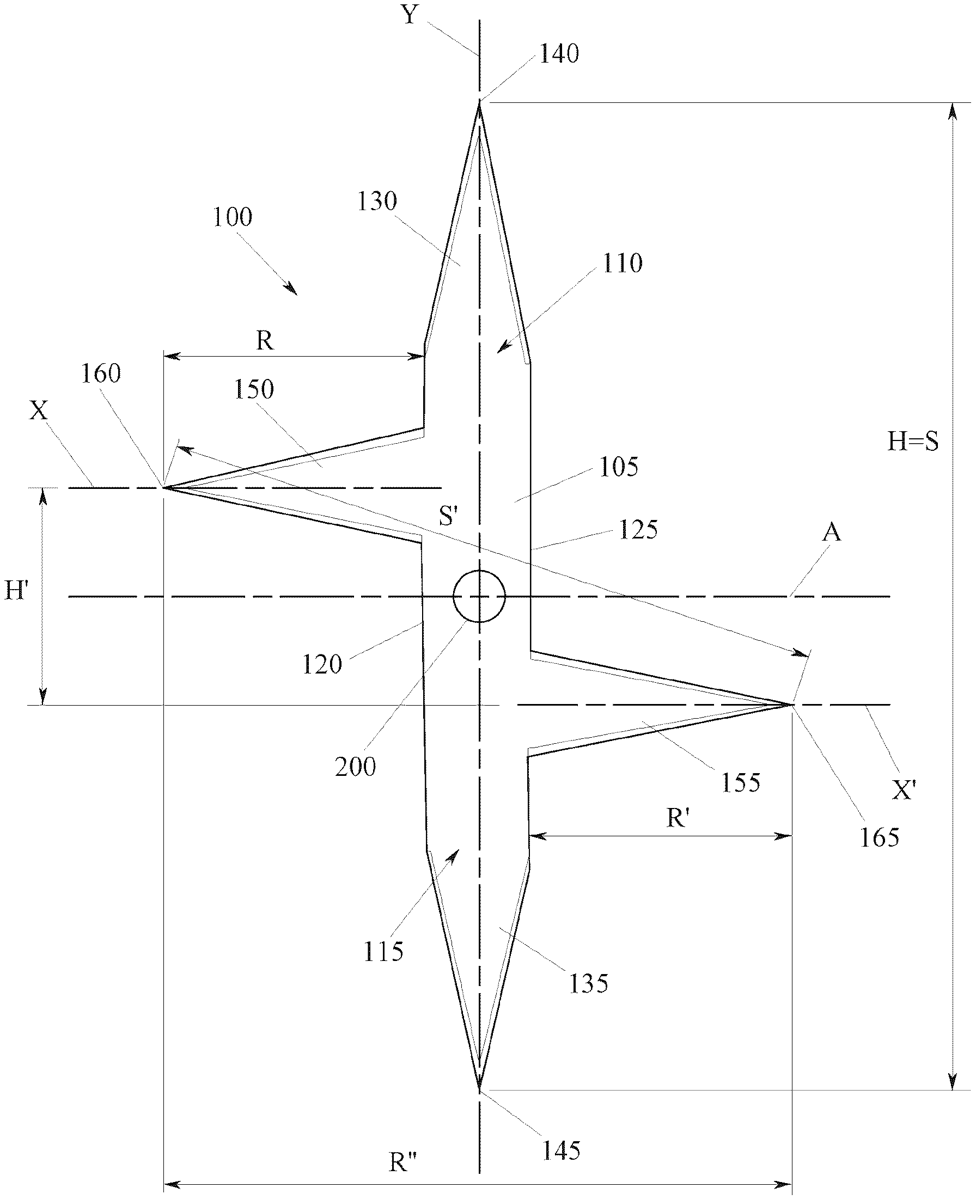

1 . A throwing weapon comprising: a central portion mainly extending along a predetermined longitudinal axis, a pair of first sharp portions, which extend respectively from the opposite axial ends of the central portion in a direction parallel to the longitudinal axis, and a pair of second sharp portions, which protrude transversely from the central portion, wherein said second sharp portions extend from opposite sides of the central portion, in directions orthogonal to the longitudinal axis, and are mutually offset along the longitudinal axis itself, wherein the first sharp portions and the second sharp portions have a planar structure, and wherein the first sharp portions and/or the second sharp portions have cutting edges. a central portion mainly extending along a predetermined longitudinal axis, a pair of first sharp portions, which extend respectively from the opposite axial ends of the central portion in a direction parallel to the longitudinal axis, and a pair of second sharp portions, which protrude transversely from the central portion, wherein said second sharp portions extend from opposite sides of the central portion, in directions orthogonal to the longitudinal axis, and are mutually offset along the longitudinal axis itself, wherein the first sharp portions and the second sharp portions have a planar structure, and wherein the first sharp portions and/or the second sharp portions have cutting edges.
