US12680787 - Protective cover for sighting device
The patent describes a protective cover designed for a sighting device on a firearm, featuring a cover body with a housing and base portion that includes securing protrusions for a tight fit. Additionally, it incorporates an indented cavity to accommodate a button from the sighting device, ensuring secure attachment and protection.
Claim 1

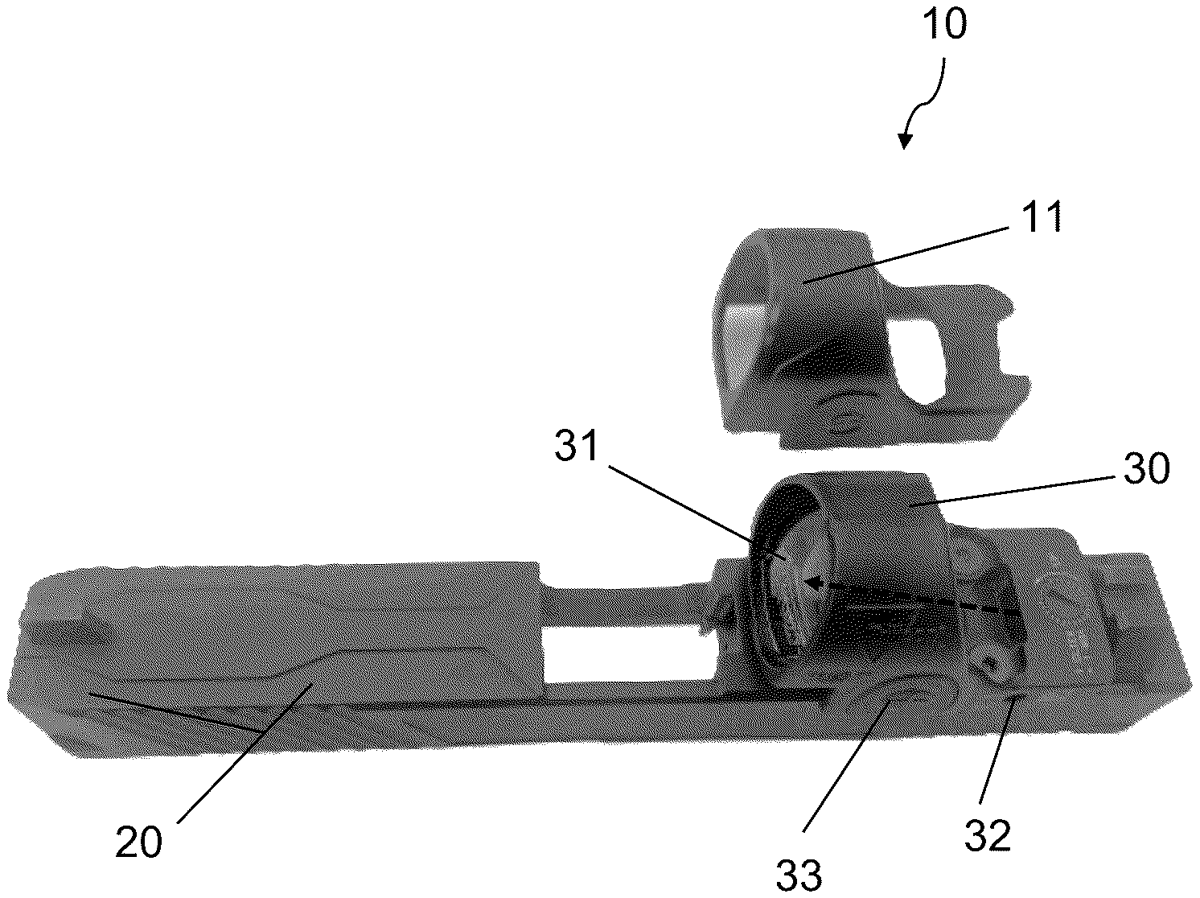

1 . A protective cover for a device installed on a firearm, comprising: a cover body having a housing portion and a base portion integrally and inwardly extended from the housing portion and a concave edge naturally and integrally formed between the housing portion and the base portion; wherein the cover body comprises an inner surface configured to be engaged with the sighting device, wherein the inner surface comprises at least one securing protrusion upwardly and integrally extended from the inner surface and configured to match with an outer surface of the device for tightly securing the cover body on the device; and the cover body defines an interior space and the at least one securing protrusion is disposed within the interior space; wherein the cover body comprises an indented cavity formed on the base portion of the cover body, wherein the indented cavity is inwardly extended from the inner surface of the cover body and configured to match with a button outwardly extended from an outer surface of the device, wherein the button is inserted into the indented cavity. a cover body having a housing portion and a base portion integrally and inwardly extended from the housing portion and a concave edge naturally and integrally formed between the housing portion and the base portion; wherein the cover body comprises an inner surface configured to be engaged with the sighting device, wherein the inner surface comprises at least one securing protrusion upwardly and integrally extended from the inner surface and configured to match with an outer surface of the device for tightly securing the cover body on the device; and the cover body defines an interior space and the at least one securing protrusion is disposed within the interior space; wherein the cover body comprises an indented cavity formed on the base portion of the cover body, wherein the indented cavity is inwardly extended from the inner surface of the cover body and configured to match with a button outwardly extended from an outer surface of the device, wherein the button is inserted into the indented cavity.
