Jul 14, 2026

US12677824 - Small game sling

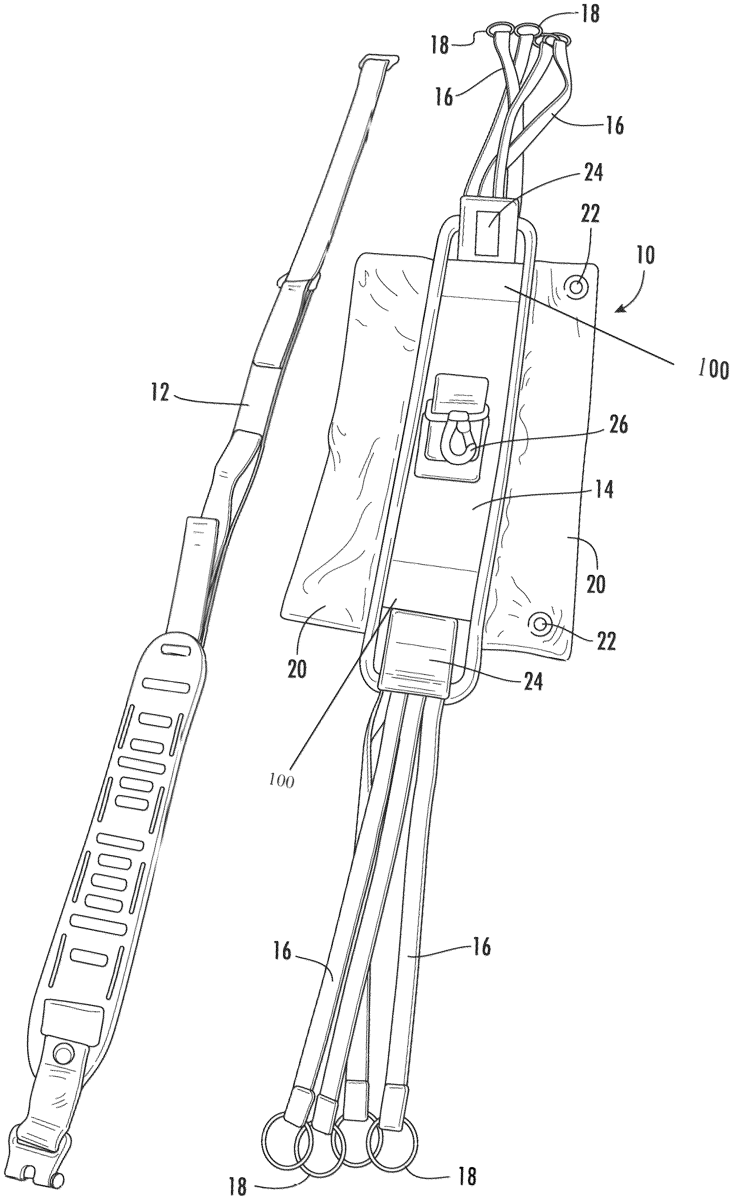

A small game sling includes a main body member and a series of individual retention straps or cords attached to each end of the main body member. One end of the retention straps is attached to the main body member, and a loop, ring or clip is preferably attached to the distal end thereof. The main body member includes a pair of flaps, wherein a first flap is positioned on one side of the main body member, and a second flap is positioned on an opposed side thereof. The flaps, in one embodiment, include attachment means, such as snaps, buttons, hook and loop fastener material (Velcro), or any other attachment mechanism so that the flaps may be folded inwardly over the main body member and attached to one another, so that the small game sling may be removably attached to the strap of a rifle, shotgun, or the like.

Inventors: Guy Watkins Best, Jr., May Watkins Best
Filing date: 2022-12-19

slinghuntingaccessory

The small game sling features a main body member with retention straps that create self-tightening nooses for securing game animals, along with flaps that can be folded over to attach the sling to a weapon strap. This design allows for the weapon strap to remain independently usable when detached from the sling.

Claim 1

1 . A small game sling comprising: a main body member having a first end and a second end, a first longitudinal side and a second longitudinal side; a first retention strap attached to said first end of said main body member, wherein said first retention strap includes a first ring attached to a distal end thereof, so that said retention strap may be fed through said first ring to form a self-tightening noose for securing a game animal thereto; a second retention strap attached to said second end of said main body member, wherein said second retention strap includes a second ring attached to a distal end thereof, so that said second retention strap may be fed through said second ring to form a self-tightening noose for securing a game animal thereto; a first flap extending outwardly from said first longitudinal side of said main body member; a second flap extending outwardly from said second longitudinal side of said main body member; said first flap and said second flap including an attachment mechanism to removably attach said first flap to said second flap; and a weapon strap adapted to be removably attached to a weapon, wherein said weapon strap is positioned adjacent said main body member and the first and second flaps are folded over the weapon strap and the main body member to removably secure the weapon strap to the main body member, such that said weapon strap remains independently usable when released from said main body member. a main body member having a first end and a second end, a first longitudinal side and a second longitudinal side; a first retention strap attached to said first end of said main body member, wherein said first retention strap includes a first ring attached to a distal end thereof, so that said retention strap may be fed through said first ring to form a self-tightening noose for securing a game animal thereto; a second retention strap attached to said second end of said main body member, wherein said second retention strap includes a second ring attached to a distal end thereof, so that said second retention strap may be fed through said second ring to form a self-tightening noose for securing a game animal thereto; a first flap extending outwardly from said first longitudinal side of said main body member; a second flap extending outwardly from said second longitudinal side of said main body member; said first flap and said second flap including an attachment mechanism to removably attach said first flap to said second flap; and a weapon strap adapted to be removably attached to a weapon, wherein said weapon strap is positioned adjacent said main body member and the first and second flaps are folded over the weapon strap and the main body member to removably secure the weapon strap to the main body member, such that said weapon strap remains independently usable when released from said main body member.
