US12669314 - Memory-type mechanical toy target

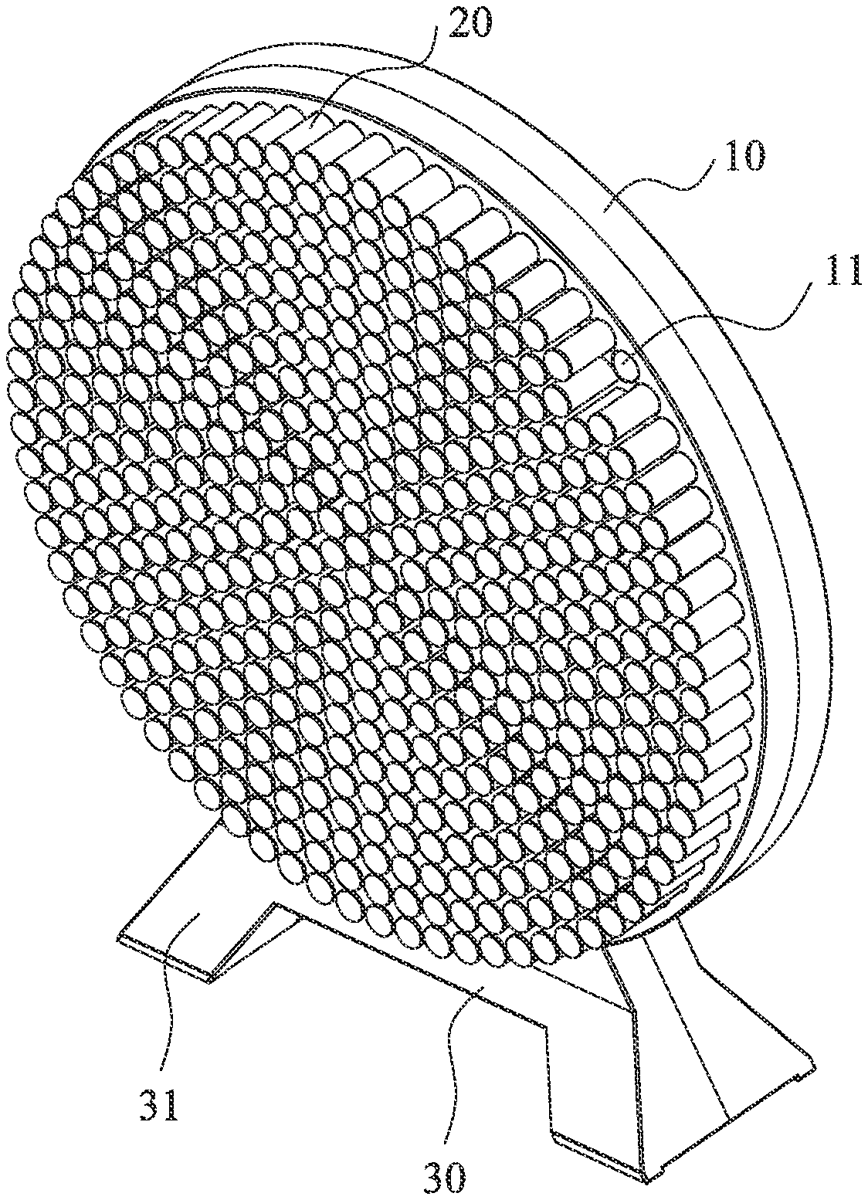

A memory-type mechanical toy target includes a target and multiple marking columns; the target is provided with a plurality of column holes arranged in the array, each of the column holes passes through the target and receives one of the marking columns which can slide therein, and the two ends of each of the marking columns respectively extend out thereof, before shooting, all of the marking columns on the target are protruded out of the front plate of the target with the same height, when any of the marking columns is hit by the toy bullet, it is pushed to move towards the back plate of the target until the column cap of the marking column is propped against the front plate of the target, so as to form corresponding concave, which can intuitively display the hitting point of the toy bullet and accurately mark it.
toytargetmechanical
The patent describes a memory-type mechanical toy target designed to visually indicate hit points by using sliding marking columns that retract upon impact. Each marking column is housed in a column hole and extends out from the target, creating a concave mark when struck by a toy bullet.
Claim 1
1 . A memory-type mechanical toy target, comprising a target and multiple marking columns; said target is provided with a plurality of column holes arranged in an array, each of said column holes passes through said target; each of said column holes contains one of said marking columns which can slide therein, and two ends of each of said marking columns respectively extend out thereof.
