Jun 2, 2026

US12644666 - Grenade launcher attachment for rifles

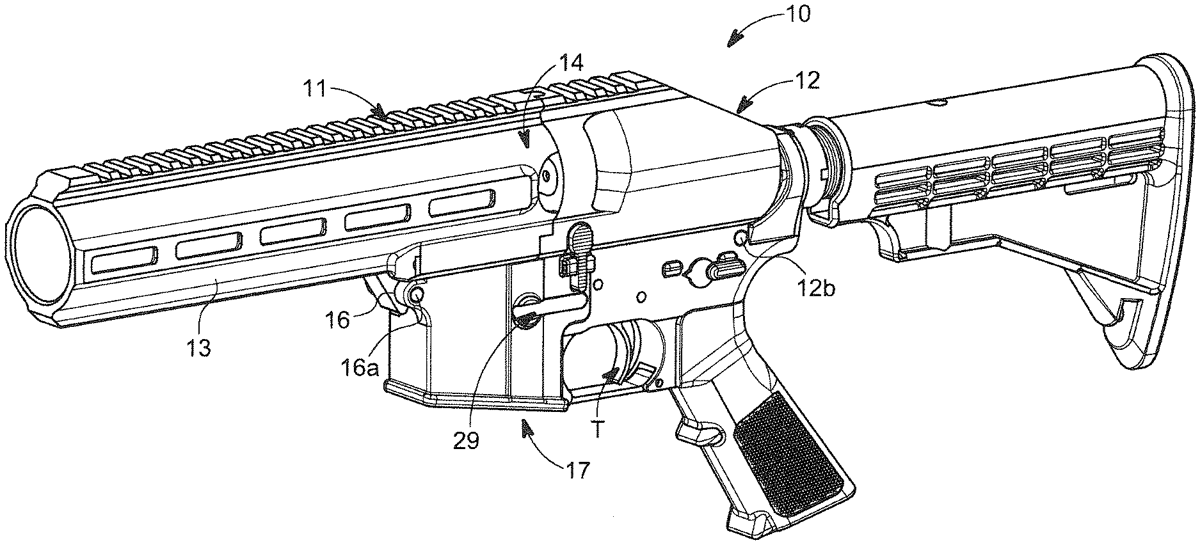

A projectile launcher attachment adapted for a standard unmodified firearm receiver capable of launching a variety of projectiles including flare, smoke round, and gas and less lethal projectiles. The launcher attachment is easily installed having a barrel breach release for loading and unloading rounds using the existing firearm receiver magazine release and provides a single shot break down barrel configuration utilizing the existing firearm attachment pin as a pivot point. A unique firing pin and firing control mechanism is interengaged with the existing firearm trigger and firearm hammer for integral select operation.

Inventors: Teodoro Valerio
Filing date: 2025-04-18

firearmlauncherattachmentprojectile

The patent describes a grenade launcher attachment for standard firearms that allows for the launching of various projectiles, including flares and smoke rounds, while utilizing the existing firearm’s components for ease of installation and operation. It features a unique firing mechanism that integrates with the firearm’s trigger and hammer, enabling a single-shot break down barrel configuration for efficient loading and unloading.

Claim 1

1 . A projectile launching attachment for a firearm comprising, a barrel assembly and a firing pin assembly registerably engaged with a lower receiver assembly of a firearm, said barrel assembly pivotally secured to the lower receiver assembly in longitudinal alignment with said firing pin assembly defining a cartridge loading and ejection barrel breach when so engaged therewith, said firing pin assembly comprises a firing pin arm, with a firing pin extension thereon, a spring urged cocking arm and hammer engagement pin movable for select registration of a receiver hammer extending from said lower receiver assembly from a first position to a secured cocked position. said barrel assembly pivotally secured to the lower receiver assembly in longitudinal alignment with said firing pin assembly defining a cartridge loading and ejection barrel breach when so engaged therewith, said firing pin assembly comprises a firing pin arm, with a firing pin extension thereon, a spring urged cocking arm and hammer engagement pin movable for select registration of a receiver hammer extending from said lower receiver assembly from a first position to a secured cocked position.

Google Patents

https://patents.google.com/patent/US12644666

USPTO PDF

https://image-ppubs.uspto.gov/dirsearch-public/print/downloadPdf/12644666
