US12638267 - Self-contained firearm brace

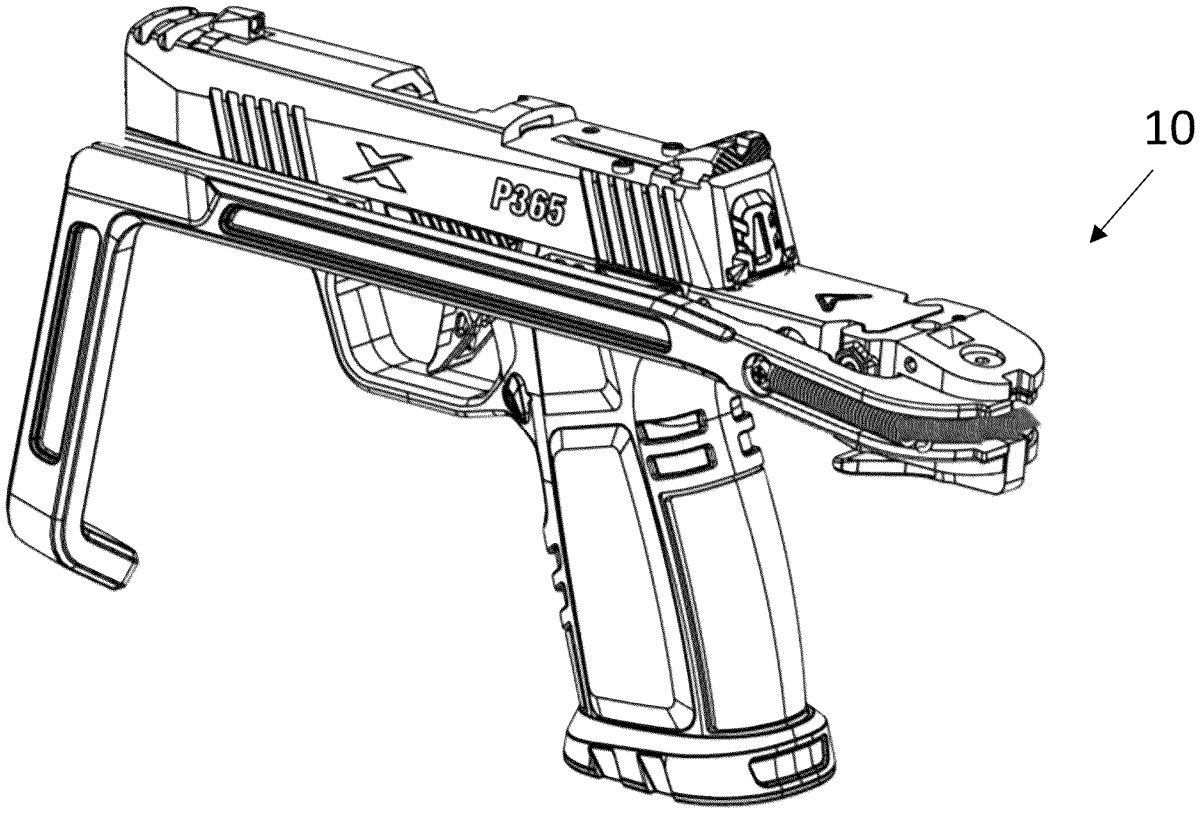

A self-contained foldable firearm brace assembly comprising a firearm coupling, a side fold arm rotatably attached to the coupling, and a release paddle mechanism that allows the side fold arm to lock into open or closed positions. An elastic member is integrated to assist in the automatic deployment of the side fold arm when the locking mechanism is disengaged.

Assignee: Tyrant Designs CNC, LLC
Inventors: Thomas Janczura, Brent Brubaker, Christopher Greenwalt
Filing date: 2025-05-27

firearmbraceaccessory

The patent describes a self-contained foldable firearm brace assembly that features a side fold arm, a firearm coupling, and an integrated elastic member for automatic deployment. The assembly includes a release paddle mechanism that allows the side fold arm to securely lock in both open and closed positions.

Claim 1

1 . A firearm brace assembly comprising: a side fold arm having a side fold arm proximal end and side fold arm distal end, a side arm coupling member extending from the side fold arm proximal end, and a rear brace member extending from a distal end; a firearm coupling having a rear coupling feature configured to couple to a firearm, a first side arm coupling member extending from a firearm coupling top portion, a second side arm coupling member extending from a firearm coupling bottom portion, the first side arm coupling member and second side arm coupling member spaced apart by a coupling member spacing wall forming a sider arm coupling slot configured to accommodate the side arm coupling member; the side arm coupling member rotatably coupled between the first side arm coupling member and second side arm coupling member; an elastic member coupled to the side fold arm proximal end and the firearm coupling; a release paddle coupled to the firearm coupling, the release paddle comprising a release paddle actuator, a release paddle locking member, a release paddle pivot member; and a release paddle biasing member coupled to the release paddle and the firearm coupling, the release paddle biasing member biasing the release paddle into a locked position. a side fold arm having a side fold arm proximal end and side fold arm distal end, a side arm coupling member extending from the side fold arm proximal end, and a rear brace member extending from a distal end; a firearm coupling having a rear coupling feature configured to couple to a firearm, a first side arm coupling member extending from a firearm coupling top portion, a second side arm coupling member extending from a firearm coupling bottom portion, the first side arm coupling member and second side arm coupling member spaced apart by a coupling member spacing wall forming a sider arm coupling slot configured to accommodate the side arm coupling member; the side arm coupling member rotatably coupled between the first side arm coupling member and second side arm coupling member; an elastic member coupled to the side fold arm proximal end and the firearm coupling; a release paddle coupled to the firearm coupling, the release paddle comprising a release paddle actuator, a release paddle locking member, a release paddle pivot member; and a release paddle biasing member coupled to the release paddle and the firearm coupling, the release paddle biasing member biasing the release paddle into a locked position.
