May 26, 2026

US12638260 - Systems and methods for enhanced firearm suppression

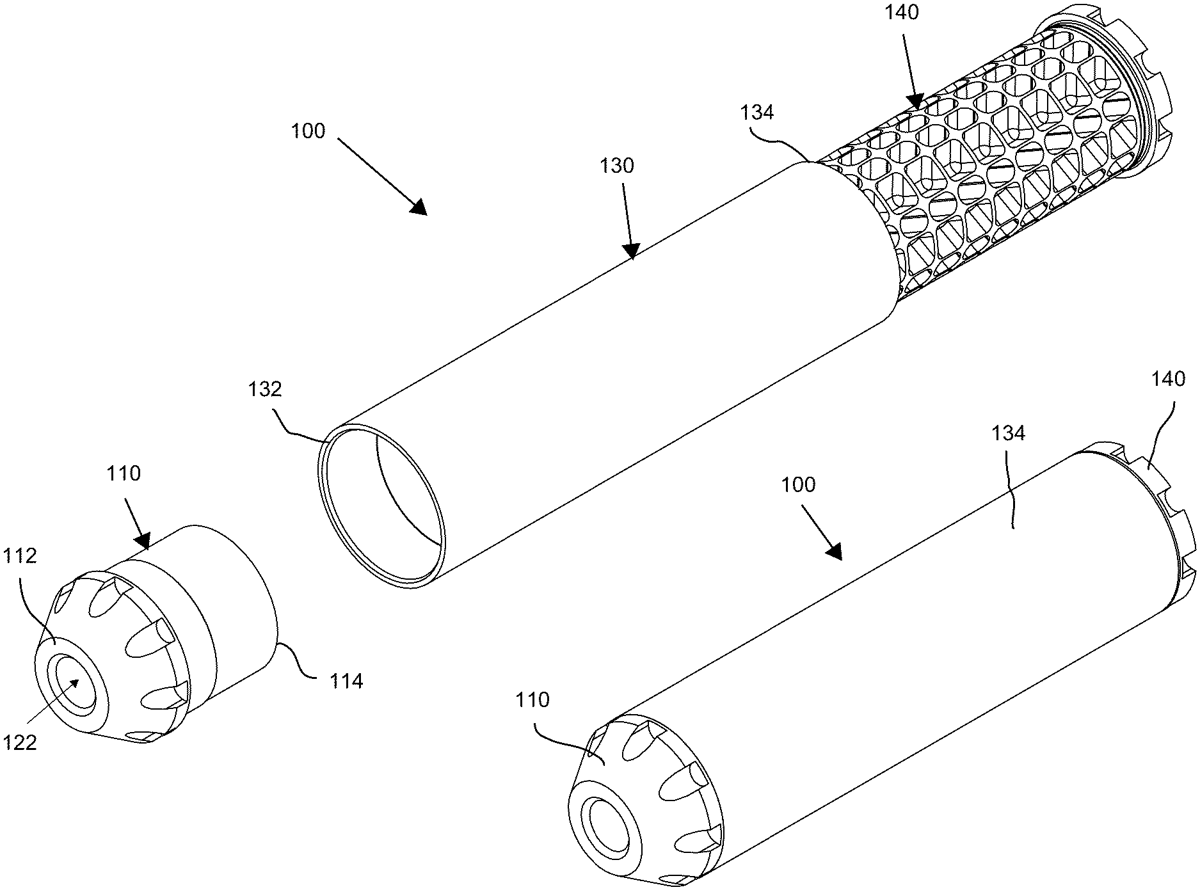

A firearm suppressor. In an embodiment, the suppressor includes an outer tube and a baffle core disposed within the outer tube. The baffle core includes a body having an exterior surface spaced from the inside surface of the outer tube. A bore extends through the body from an inlet to an outlet permitting a bullet to pass through the baffle core. A plurality of slots or through holes extend through the body between the bore and the external surface of the body permitting gases to expand outward toward the outer tube. A plurality of blind cavities are formed into the external surface of the body and extending into the body without penetrating the bore. These blind cavities provide additional surface area and slow the exit of gases from the suppressor and further cool the gases.

Assignee: North Country Armory
Inventors: Nick Ryan Johnson, Kirt James Jensen
Filing date: 2025-05-26

firearmsuppressorammunition

The patent describes a firearm suppressor featuring a baffle core with a bore for bullet passage and a design that includes through holes and blind cavities to enhance gas expansion and cooling. This innovative structure aims to improve the efficiency of sound suppression by increasing surface area and controlling gas exit.

Claim 1

1 . A firearm suppressor, comprising: a tube; a baffle core disposed within the tube, the baffle core including: a body, wherein an external surface of the body is spaced from an internal surface of the tube; a bore extending through the body from an inlet opening to an outlet opening; a plurality of through holes extending through the body between the bore and the external surface of the body; and a plurality of blind cavities formed into the external surface of the body and extending into the body without penetrating the bore. a tube; a baffle core disposed within the tube, the baffle core including: a body, wherein an external surface of the body is spaced from an internal surface of the tube; a bore extending through the body from an inlet opening to an outlet opening; a plurality of through holes extending through the body between the bore and the external surface of the body; and a plurality of blind cavities formed into the external surface of the body and extending into the body without penetrating the bore. a body, wherein an external surface of the body is spaced from an internal surface of the tube; a bore extending through the body from an inlet opening to an outlet opening; a plurality of through holes extending through the body between the bore and the external surface of the body; and a plurality of blind cavities formed into the external surface of the body and extending into the body without penetrating the bore.
