USD1126348 - Rifle hand guard
riflehandguardfirearm

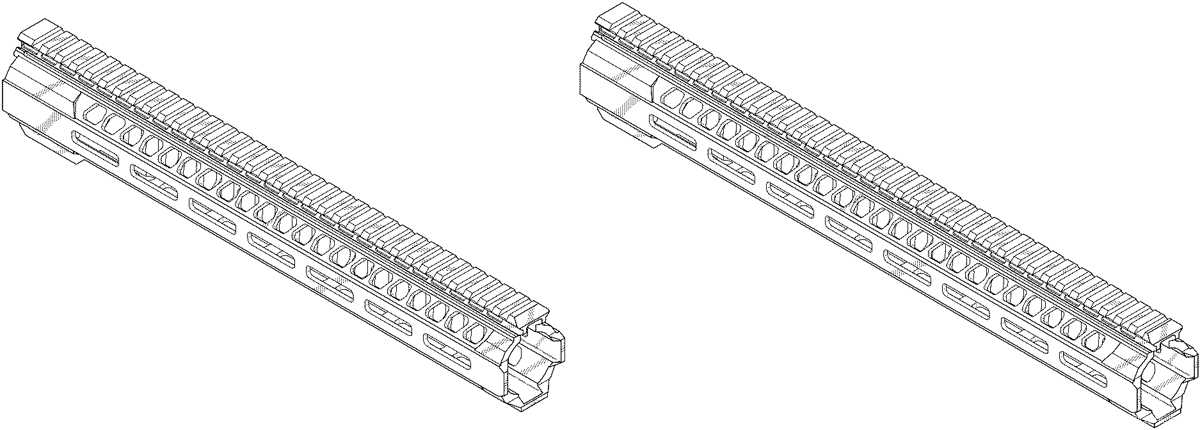

This patent grant pertains to the ornamental design of a rifle hand guard, emphasizing its unique aesthetic features. The design is specifically illustrated and described in the accompanying drawings.
Claim 1
The ornamental design for a rifle hand guard, as shown and described.
