US12624917 - Hybrid stabilizer rod

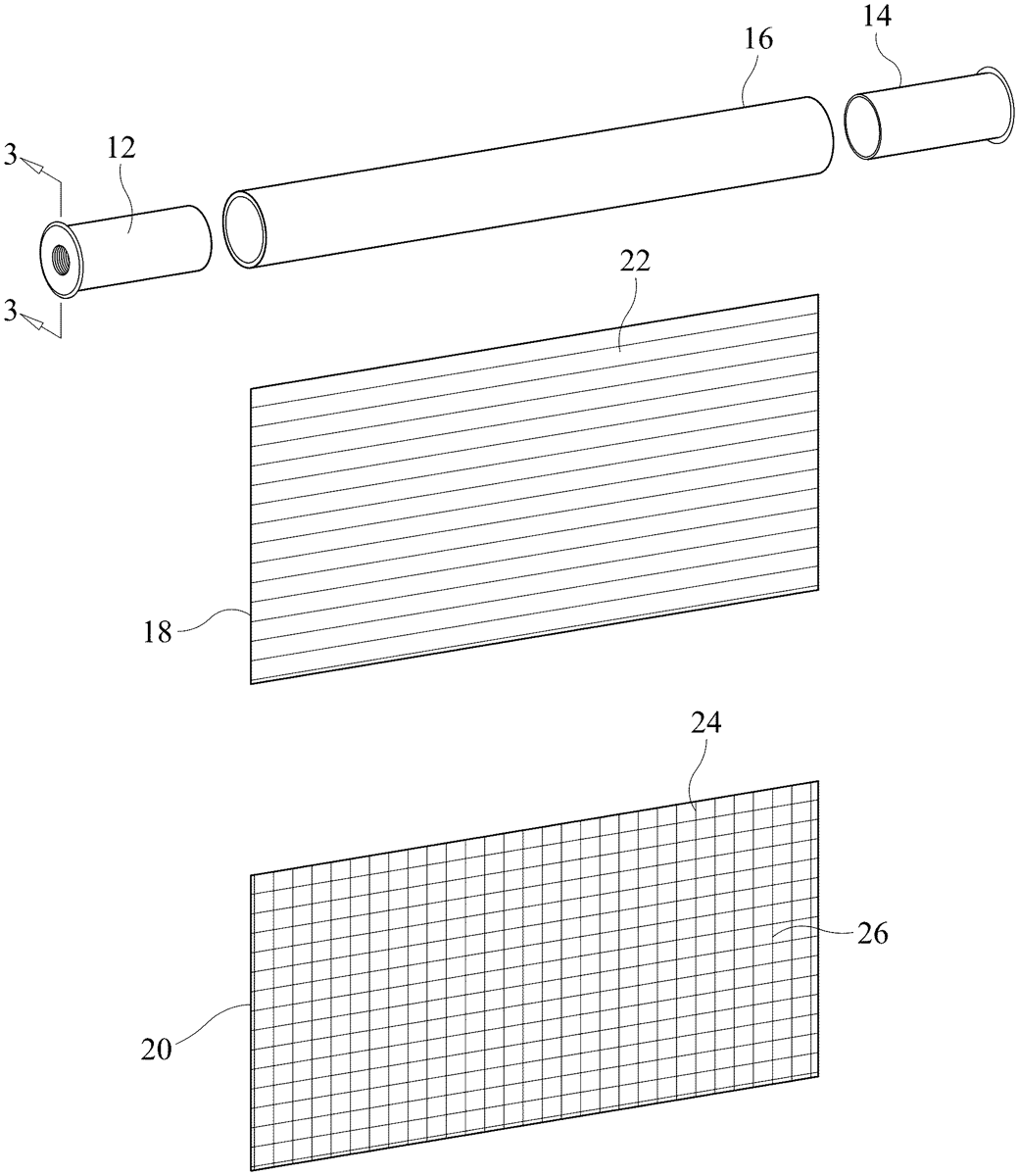

A hybrid stabilizer rod preferably includes a stabilizer tube, a first end cap and a second end cap. The stabilizer tube preferably includes a base tube, a first carbon fiber sheet and a second carbon fiber sheet. The first carbon fiber sheet includes a plurality of parallel fibers. The second carbon fiber sheet includes a plurality of first and second fibers. The first carbon fiber sheet is wrapped around the base tube. The second carbon fiber sheet is wrapped around the first carbon fiber sheet. The first and second end caps preferably include a thin head formed on a first end of a cap body and a tapered bore formed in a second end of the cap body. A threaded tap is formed in the first end of the cap body. An outer perimeter of cap body is sized to be received by an inner perimeter of the base tube.

Inventors: Dorge O. Huang
Filing date: 2024-05-15

stabilizerrodfirearmaccessory

The hybrid stabilizer rod features a metallic base tube designed to minimize vibration, wrapped in carbon fiber sheets for enhanced stability. It includes end caps with a threaded tap and tapered bore for secure attachment.

Claim 1

1 . A hybrid stabilizer rod, comprising: a base tube fabricated from a metallic material, said base tube resists transferring vibration; at least one carbon fiber sheet is wrapped around an outer perimeter of said base tube, wherein said at least one carbon fiber sheet is secured to said base tube; and a first end cap is retained in a first end of said base tube; and a second end cap is retained in a second end of said base tube, said end caps each include a head formed on a first end and a tapered bore formed in a second end, a threaded tap is formed in said first end of said end caps. a base tube fabricated from a metallic material, said base tube resists transferring vibration; at least one carbon fiber sheet is wrapped around an outer perimeter of said base tube, wherein said at least one carbon fiber sheet is secured to said base tube; and a first end cap is retained in a first end of said base tube; and a second end cap is retained in a second end of said base tube, said end caps each include a head formed on a first end and a tapered bore formed in a second end, a threaded tap is formed in said first end of said end caps.
