May 12, 2026

US12624577 - Lockable gun mount

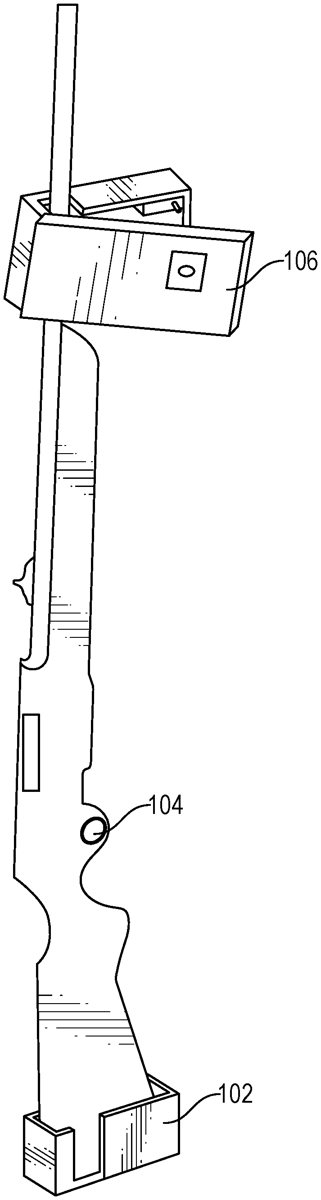

A lockable gun mount features a stock receiver, a trigger block, and a barrel lock. The stock receiver includes a base, sidewalls, a receiving aperture, and one or more fasteners. The trigger block includes a trigger rod and a wall member. The barrel lock includes a wall member, a hinged door coupled to the wall member, and a locking mechanism configured to secure the hinged door to the wall member. In some examples, the barrel lock further includes a biometric sensor. A cumulative force between the stock receiver, the trigger receiver, and the barrel lock prevents the gun from being removed from the lockable gun mount when secured to a wall or flat surface.

Inventors: Daniel Kesler
Filing date: 2023-02-03

gunmountaccessory

The lockable gun mount is designed to securely hold a firearm in place using a stock receiver, trigger block, and barrel lock, with a locking mechanism that may include a biometric sensor for enhanced security. This system prevents unauthorized access and ensures that the gun remains firmly attached to a wall or flat surface when locked.

Claim 1

1 . A lockable gun mount, comprising: a stock receiver configured to receive a stock of a gun, the stock receiver comprising sidewalls and securable to a surface at a first location, the sidewalls comprising a slot configured to enable a user to insert or remove fasteners through the stock receiver and into the surface; a trigger block securable to the surface at a second location, the trigger block configured to prevent a trigger of the gun from being actuated; and a barrel lock securable to the surface at a third location, the barrel lock comprising a wall member comprising a barrel aperture and a hinged door coupled to the wall member, the hinged door configured to secure a barrel within the barrel aperture of the wall member when closed, the barrel lock comprising a locking mechanism for selectively locking or releasing the hinged door to thereby lock or release the barrel in the barrel lock, wherein the locking mechanism of the barrel lock further comprises a biometric sensor. a stock receiver configured to receive a stock of a gun, the stock receiver comprising sidewalls and securable to a surface at a first location, the sidewalls comprising a slot configured to enable a user to insert or remove fasteners through the stock receiver and into the surface; a trigger block securable to the surface at a second location, the trigger block configured to prevent a trigger of the gun from being actuated; and a barrel lock securable to the surface at a third location, the barrel lock comprising a wall member comprising a barrel aperture and a hinged door coupled to the wall member, the hinged door configured to secure a barrel within the barrel aperture of the wall member when closed, the barrel lock comprising a locking mechanism for selectively locking or releasing the hinged door to thereby lock or release the barrel in the barrel lock, wherein the locking mechanism of the barrel lock further comprises a biometric sensor.
