Apr 21, 2026

US12607434 - Device for tracking target and system including the same

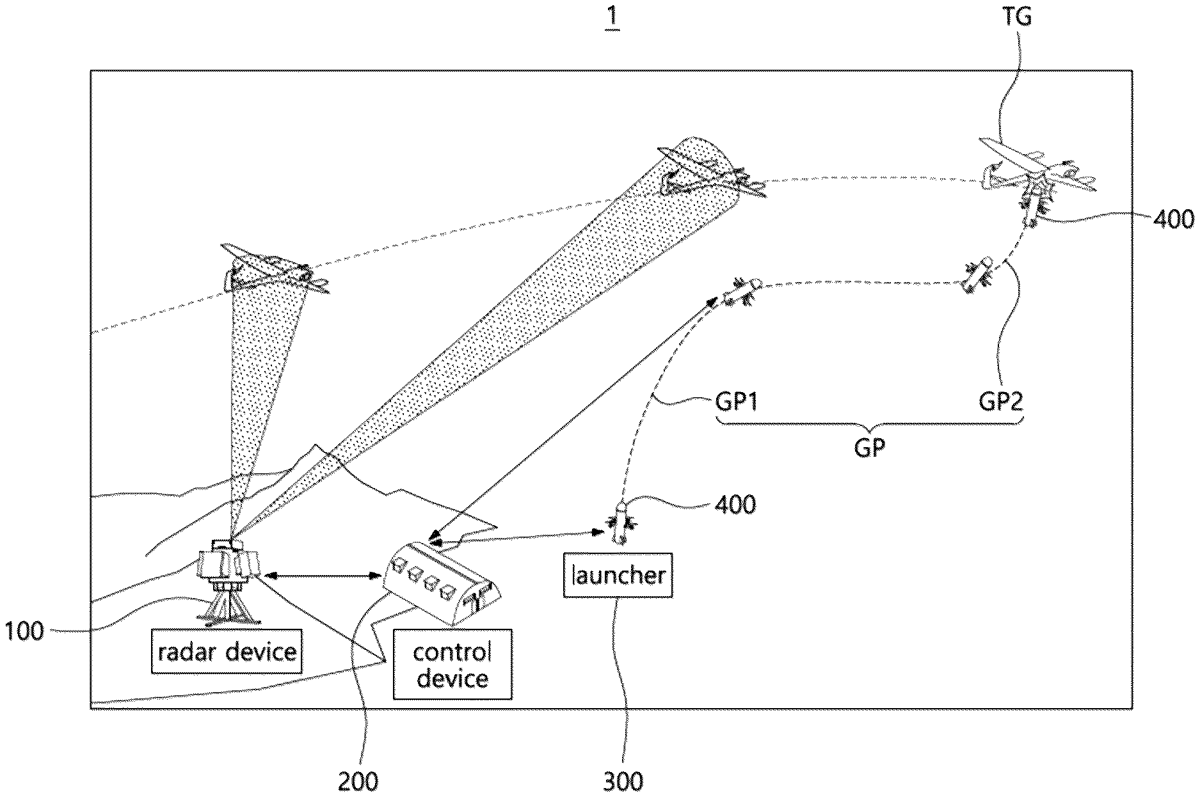

A target tracking device for tracking a target TG, comprising: a memory storing at least one instruction; and at least one processor executing the at least one instruction, wherein the at least one processor: identifies the target based on at least one of radar data acquired through a radar and vision data acquired through a camera, and performs a guidance process to approach the identified target, performs a first guidance process at a first tracking time point to track the target in a certain manner, and performs a second guidance process at a second tracking time point, which is chronologically subsequent to the first tracking time point, to track the target in a manner different from the certain manner.

Assignee: NEARTHLAB INC.
Inventors: Youngsuk Chung, Hoyoung Na, Daeyun Shin, Dongyeon Lee, Donggeun Lee
Filing date: 2024-10-21

The patent describes a target tracking device that utilizes radar and camera data to identify and track a target through a two-phase guidance process. The device executes different tracking methods at distinct time points to enhance its tracking capabilities.

Claim 1

1 . A target tracking device for tracking a target TG, comprising: a memory storing at least one instruction; and at least one processor executing the at least one instruction, wherein the at least one processor: identifies the target based on at least one of radar data acquired through a radar and vision data acquired through a camera, and performs a guidance process to approach the identified target, performs a first guidance process at a first tracking time point to track the target in a certain manner, and performs a second guidance process at a second tracking time point, which is chronologically subsequent to the first tracking time point, to track the target in a manner different from the certain manner. a memory storing at least one instruction; and at least one processor executing the at least one instruction, wherein the at least one processor: identifies the target based on at least one of radar data acquired through a radar and vision data acquired through a camera, and performs a guidance process to approach the identified target, performs a first guidance process at a first tracking time point to track the target in a certain manner, and performs a second guidance process at a second tracking time point, which is chronologically subsequent to the first tracking time point, to track the target in a manner different from the certain manner.

Google Patents

https://patents.google.com/patent/US12607434

USPTO PDF

https://image-ppubs.uspto.gov/dirsearch-public/print/downloadPdf/12607434
