Apr 21, 2026

US12607432 - Holster for conducted energy device with control access

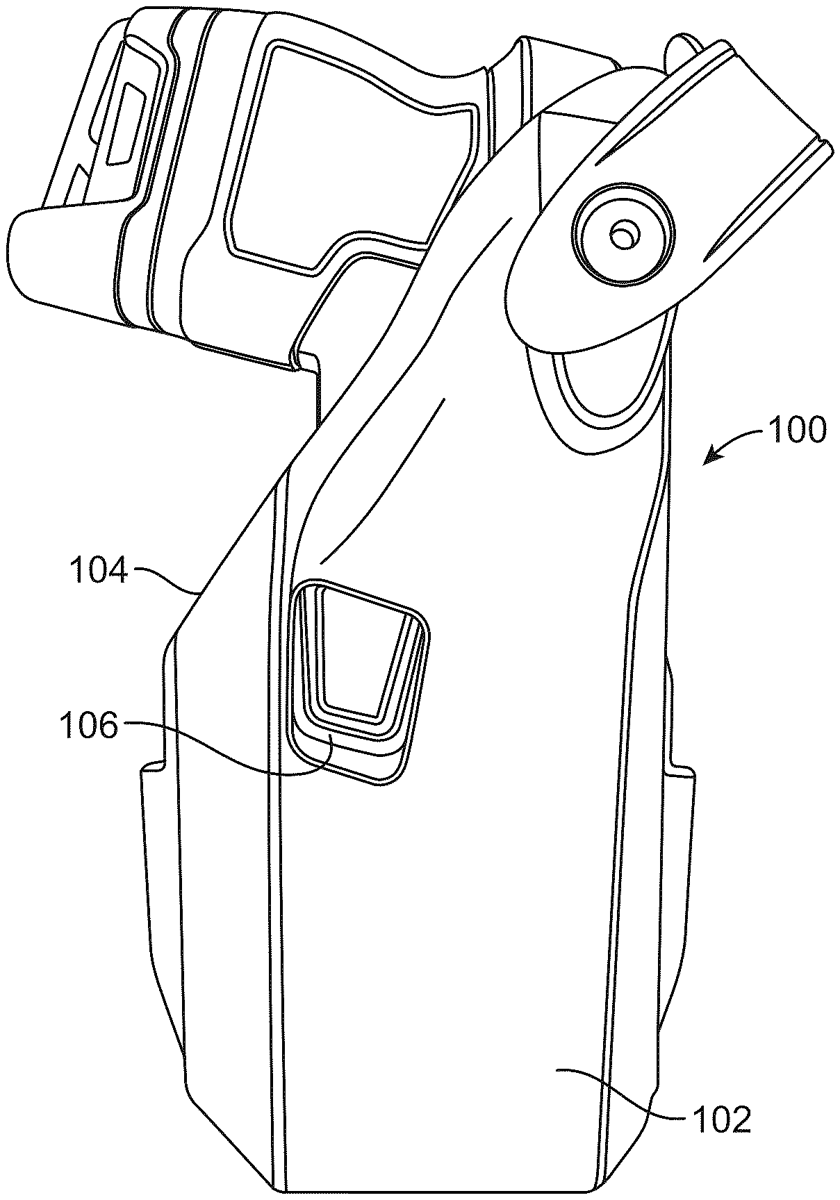

The present invention discloses a holster for a conducted energy device. The holster comprises a holster body having a cavity to receive the conducted energy device. The conducted energy device comprises one or more switches to control one or more functions of the conducted energy device. The holster further comprises one or more access modules integrated at an outer surface of the holster body. The access module is configured to activate the switches while the conducted energy device is secured within the holster to control the functions including energization of the conducted energy device. The access module includes an opening to expose the switch. The opening enables a user to access the switch.

Inventors: Robert Wilson, Ryan Jones
Filing date: 2024-05-08

holsterconducted_energy_device

The patent describes a holster designed for a conducted energy device that allows users to control its functions while the device is secured inside the holster. It features an integrated access module with a depressible portion that activates the device’s switches without removing it from the holster.

Claim 1

1 . A holster for a conducted energy device, comprising: a holster body having a cavity to receive the conducted energy device, wherein the conducted energy device comprises one or more switches to control one or more functions of the conducted energy device, and an access module integrated at an outer surface of the holster body at a location corresponding to a user-actuatable switch, the access module comprising a depressible portion integrally formed with the holster body and configured to be depressed by a user for a predefined depth while the conducted energy device remains secured within the cavity, depression of the depressible portion contacting and pressing against the user-actuatable switch to activate the switch and thereby control the one or more functions including energization of the conducted energy device. a holster body having a cavity to receive the conducted energy device, wherein the conducted energy device comprises one or more switches to control one or more functions of the conducted energy device, and an access module integrated at an outer surface of the holster body at a location corresponding to a user-actuatable switch, the access module comprising a depressible portion integrally formed with the holster body and configured to be depressed by a user for a predefined depth while the conducted energy device remains secured within the cavity, depression of the depressible portion contacting and pressing against the user-actuatable switch to activate the switch and thereby control the one or more functions including energization of the conducted energy device.
