Mar 31, 2026

US12590787 - Modular system for ammunition processing, storage, and transportation

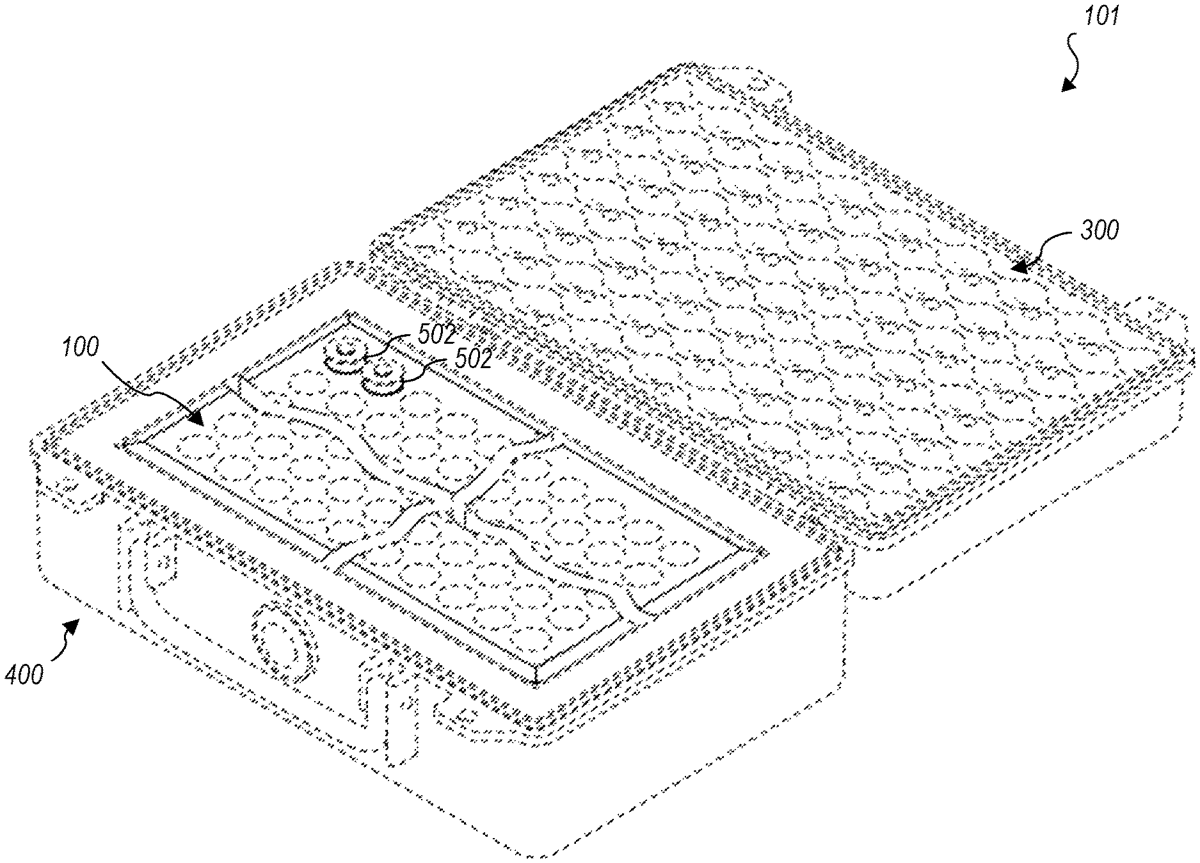

A modular ammunition storage system comprising an insert block and a plurality of cartridge pockets formed into the insert block, such that a distal end of each cartridge pocket may be closed above the bottom surface of the insert block and a proximal end of each cartridge pocket is open at the top surface of the insert block, wherein each cartridge pocket is configured to receive and removably secure a cartridge having a particular shape and caliber. The insert block is receivable and removably securable by an ammunition box insert that surrounds the perimeter of the insert block, the ammunition box insert itself surrounding the interior perimeter of the carrying case into which the insert block and ammunition box insert are received. Different insert blocks configured to hold different caliber ammunition may be provided, and interchanged with one another in the carrying case.

Inventors: Brian C. Woodward
Filing date: 2023-09-20

ammunitionstoragemodular

The patent describes a modular ammunition storage system featuring an insert block with multiple cartridge pockets designed to securely hold cartridges of various shapes and calibers. This insert block can be interchangeably placed within an ammunition box insert, allowing for efficient storage and transportation of different types of ammunition.

Claim 1

1 . A modular ammunition storage system comprising: an insert block received into a carrying case, the insert block having a front side, a back side, a first lateral side, a second lateral side, a top surface, and a bottom surface, collectively forming a main body of the insert block that has a height, a length, and a width; and a plurality of cartridge pockets formed into the insert block, each cartridge pocket being open in the top surface of the insert block such that a distal end of each cartridge pocket may be closed above the bottom surface of the insert block and a proximal end of each cartridge pocket is open at the top surface of the insert block, wherein each cartridge pocket is configured to receive and removably secure a cartridge having a particular shape and caliber, wherein the insert block is selectively received and removably securable within an ammunition box insert within the carrying case, such that the ammunition box insert surrounds an outer perimeter of the insert block, which is received into the ammunition box insert such that the top surface of the insert block is flush with a top surface of the ammunition box insert. an insert block received into a carrying case, the insert block having a front side, a back side, a first lateral side, a second lateral side, a top surface, and a bottom surface, collectively forming a main body of the insert block that has a height, a length, and a width; and a plurality of cartridge pockets formed into the insert block, each cartridge pocket being open in the top surface of the insert block such that a distal end of each cartridge pocket may be closed above the bottom surface of the insert block and a proximal end of each cartridge pocket is open at the top surface of the insert block, wherein each cartridge pocket is configured to receive and removably secure a cartridge having a particular shape and caliber, wherein the insert block is selectively received and removably securable within an ammunition box insert within the carrying case, such that the ammunition box insert surrounds an outer perimeter of the insert block, which is received into the ammunition box insert such that the top surface of the insert block is flush with a top surface of the ammunition box insert.
