Mar 31, 2026

US12590785 - Target pins and target pin holster system

A target pin holster system includes target pins, which are used to secure a paper target face to a penetrable archery target, and a holster that securely stores the target pins when they are not in use. Each target pin houses an embedded magnet which is attracted to a magnet embedded in the target pin retention holster resulting in safe and secure storage for the target pins when they are not in use.

Inventors: Corey Haas
Filing date: 2024-01-15

targetarcherypinsholster

The patent describes a target pin holster system designed for securing paper targets to archery targets, featuring target pins with embedded magnets for safe storage. Each target pin includes a magnet that interacts with a corresponding magnet in the holster, ensuring the pins are securely retained when not in use.

Claim 1

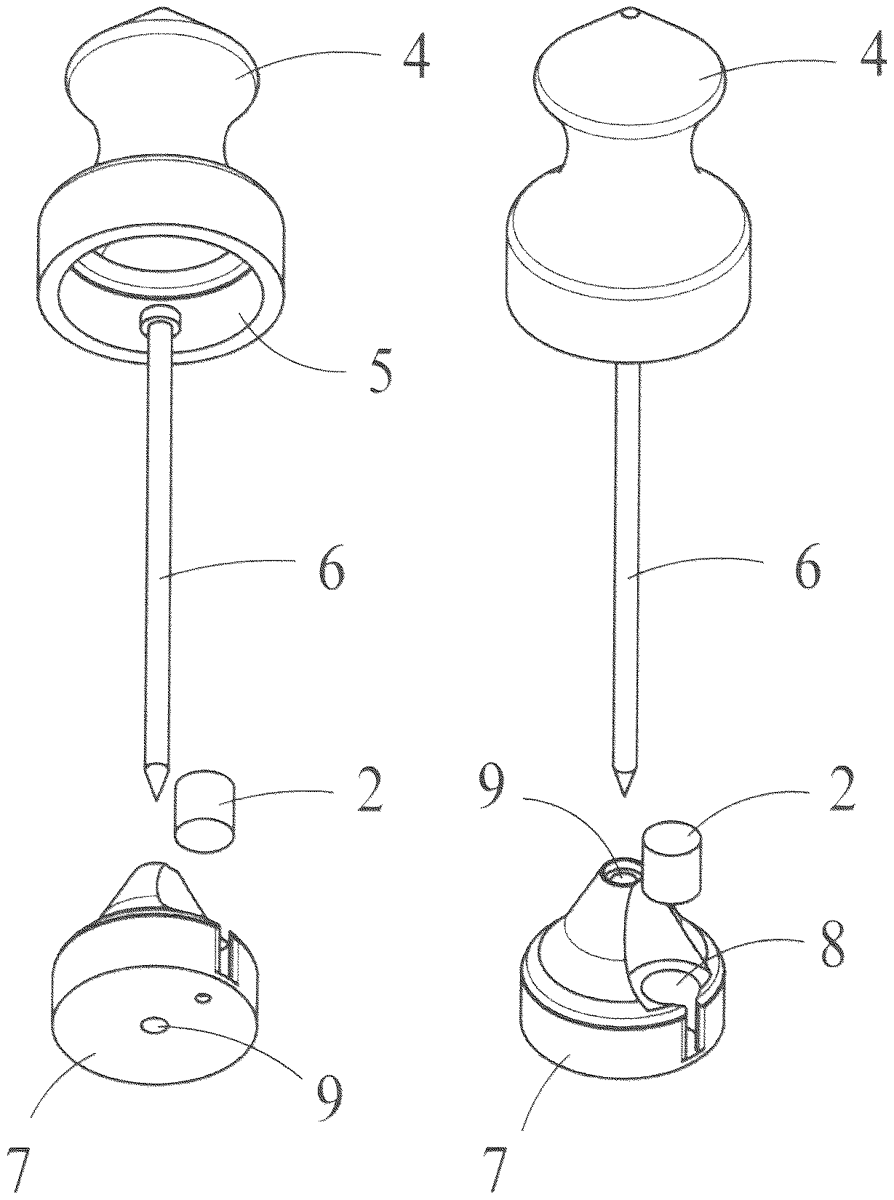

1 . A target pin, comprising: a target pin body includes a top and a bottom; a pin magnet is retained in said bottom of said target pin body; and a target nail extends from said bottom of said target pin body. a target pin body includes a top and a bottom; a pin magnet is retained in said bottom of said target pin body; and a target nail extends from said bottom of said target pin body.
