Mar 31, 2026

US12590782 - Archery bow sight support systems

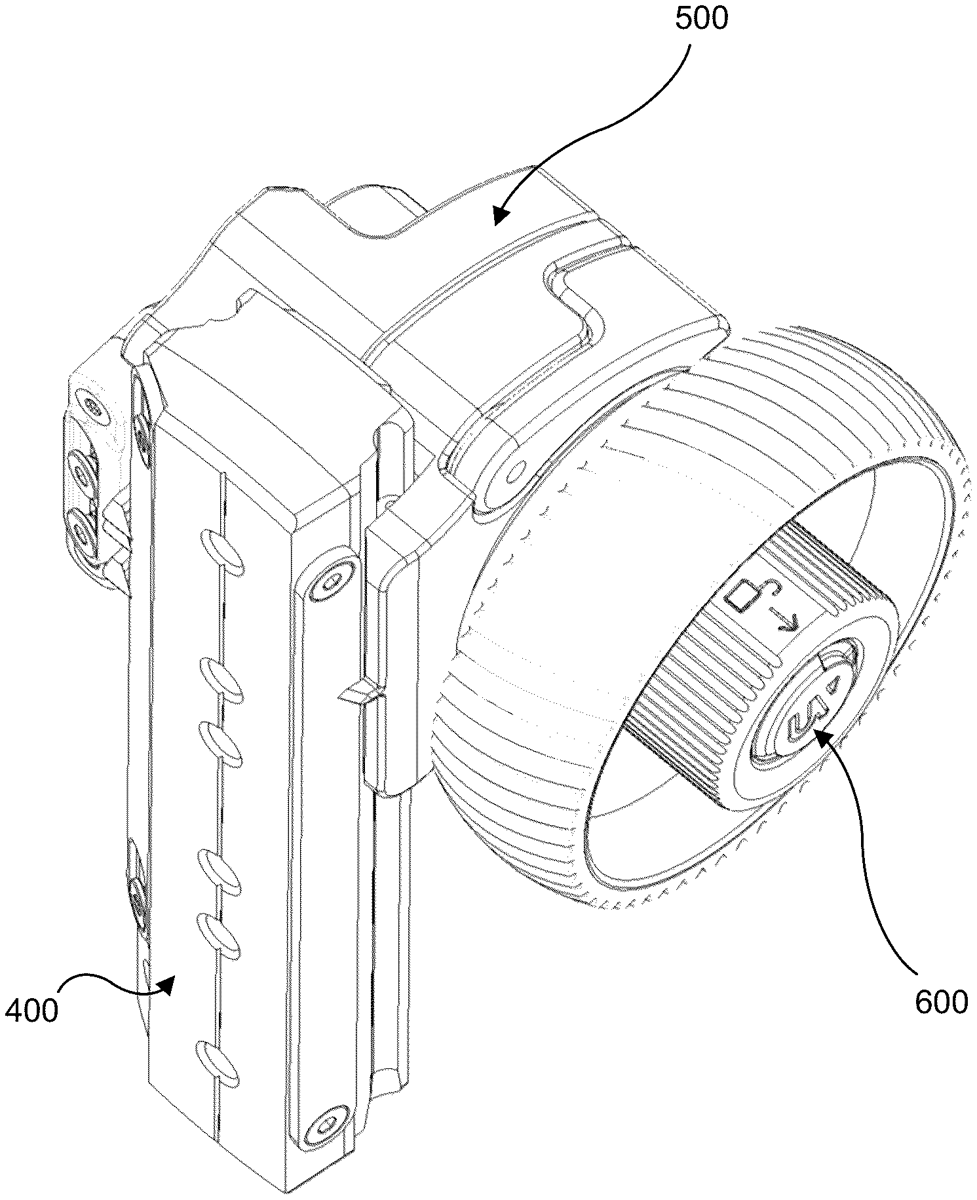

The disclosed technology includes a support system for an optical sighting device of a bow. The support system includes a support structure configured to attach to a bow and an elevation assembly configured to move along an elevation direction relative to the support structure. The support structure can include an elevation actuator configured to cause the elevation assembly to move along the elevation direction when the elevation actuator is actuated and a windage assembly configured to move along a windage direction relative to the support structure. The windage direction can be approximately perpendicular to the elevation direction. The support structure can further include a windage actuator configured to cause the windage assembly to move along the windage direction when the windage actuator is actuated. The windage actuator can be disposed at least partially in the elevation actuator.

Assignee: Ultraview Archery, Inc.
Inventors: John Boezi, III, Zachary Bruce Harris, Simon Yimeng Li, Kolby John Hanley, William Sauway Law, Ron Jack Smith
Filing date: 2023-08-16

archerybowsightsupportsystem

The patent describes a support system for an optical sighting device on a bow, featuring both elevation and windage assemblies that can be adjusted using respective actuators. The design allows for precise adjustments in both elevation and windage directions, enhancing the accuracy of archery.

Claim 1

1 . A support system for an optical sighting device of a bow, the support system comprising: a support structure configured to attach to a bow; an elevation assembly configured to move along an elevation direction relative to the support structure; an elevation actuator configured to cause the elevation assembly to move along the elevation direction when the elevation actuator is actuated; a windage assembly configured to move along a windage direction relative to the support structure, the windage direction being approximately perpendicular to the elevation direction; and a windage actuator configured to cause the windage assembly to move along the windage direction when the windage actuator is actuated, the windage actuator being disposed at least partially in the elevation actuator. a support structure configured to attach to a bow; an elevation assembly configured to move along an elevation direction relative to the support structure; an elevation actuator configured to cause the elevation assembly to move along the elevation direction when the elevation actuator is actuated; a windage assembly configured to move along a windage direction relative to the support structure, the windage direction being approximately perpendicular to the elevation direction; and a windage actuator configured to cause the windage assembly to move along the windage direction when the windage actuator is actuated, the windage actuator being disposed at least partially in the elevation actuator.
