Jan 13, 2026

US12523448 - Infrared firearm sight camera attachment, system and method

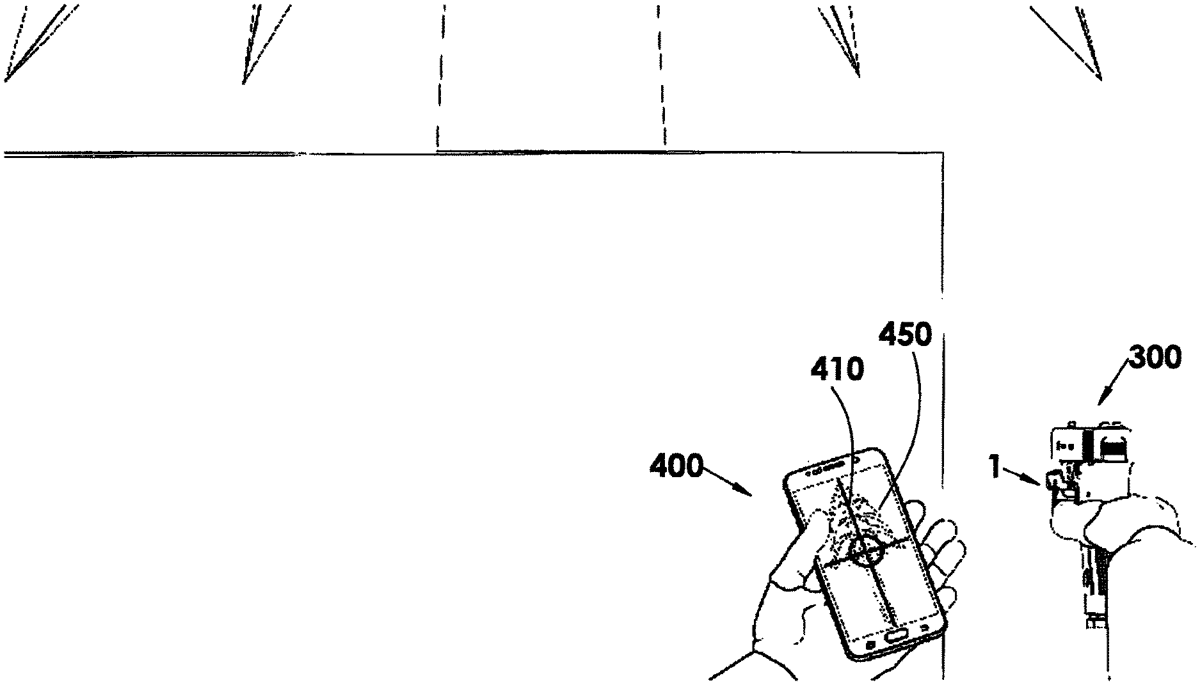

Devices, systems and methods for providing firearms, including handguns, with infrared sights and a camera which can be held in one shooter's hand. The camera can send live video which can display a target to a portable display, such as a smart phone, smart watch or smart glasses, that is held in another hand of the shooter, so that the shooter remains out of harms' way if the target is armed. The novel sight can include hybrids of combinations of infrared and bright white visible lights, and use all visible bright white light. A motion sensor or magnetometer sensor can be separately used to cause the novel sight to become activated. Wireless charging can be accomplished with charging circuits, charging pads and USB cables and ports. A multi-position locking system can allow for a rail key to be used for spacing the novel sight at up to twelve different positions relative to the firearm.

The patent describes an innovative target sighting system for firearms that integrates a camera and LED lights, allowing shooters to view live target images on a portable display while keeping a safe distance. It features adjustable mounting mechanisms, a magnetometer sensor for activation, and the capability for wireless charging, enhancing usability and safety during firearm operation.

Claim 1

1 . A target sighting system for use with a firearm, comprising in combination: a target sighting attachment for the firearm having a camera, a plurality of front facing Light Emitting Diodes (LEDs) adjacent the camera, and an image sender for sending a live target image from the camera to another location, an attachment mechanism for attaching the target sighting attachment to the firearm, wherein the attachment mechanism includes: a horizontal camera adjustor for adjusting horizontal position of the camera; and a vertical camera adjustor for adjusting vertical position of the camera; a magnetometer sensor in the attachment to detect a close range magnetic field; an external magnet magnetically attached adjacent the target sighting attachment; and a portable digital display device adjacent to the firearm with the target sighting attachment for displaying the target image on a display, wherein the firearm with the target sighting attachment is adapted to be held by one hand of a user while the portable digital display device is adapted to be held by another hand of the user, wherein separating the external magnet from being adjacent the target sighting mechanism activates the target sighting attachment from a sleep mode to an active mode where the target image is displayed on the display and recorded. a target sighting attachment for the firearm having a camera, a plurality of front facing Light Emitting Diodes (LEDs) adjacent the camera, and an image sender for sending a live target image from the camera to another location, an attachment mechanism for attaching the target sighting attachment to the firearm, wherein the attachment mechanism includes: a horizontal camera adjustor for adjusting horizontal position of the camera; and a vertical camera adjustor for adjusting vertical position of the camera; a magnetometer sensor in the attachment to detect a close range magnetic field; an external magnet magnetically attached adjacent the target sighting attachment; and a portable digital display device adjacent to the firearm with the target sighting attachment for displaying the target image on a display, wherein the firearm with the target sighting attachment is adapted to be held by one hand of a user while the portable digital display device is adapted to be held by another hand of the user, wherein separating the external magnet from being adjacent the target sighting mechanism activates the target sighting attachment from a sleep mode to an active mode where the target image is displayed on the display and recorded.

Google Patents

https://patents.google.com/patent/US12523448

USPTO PDF

https://image-ppubs.uspto.gov/dirsearch-public/print/downloadPdf/12523448
