Nov 11, 2025

US12467719 - Compact dovetail pistol sight adjustment tool

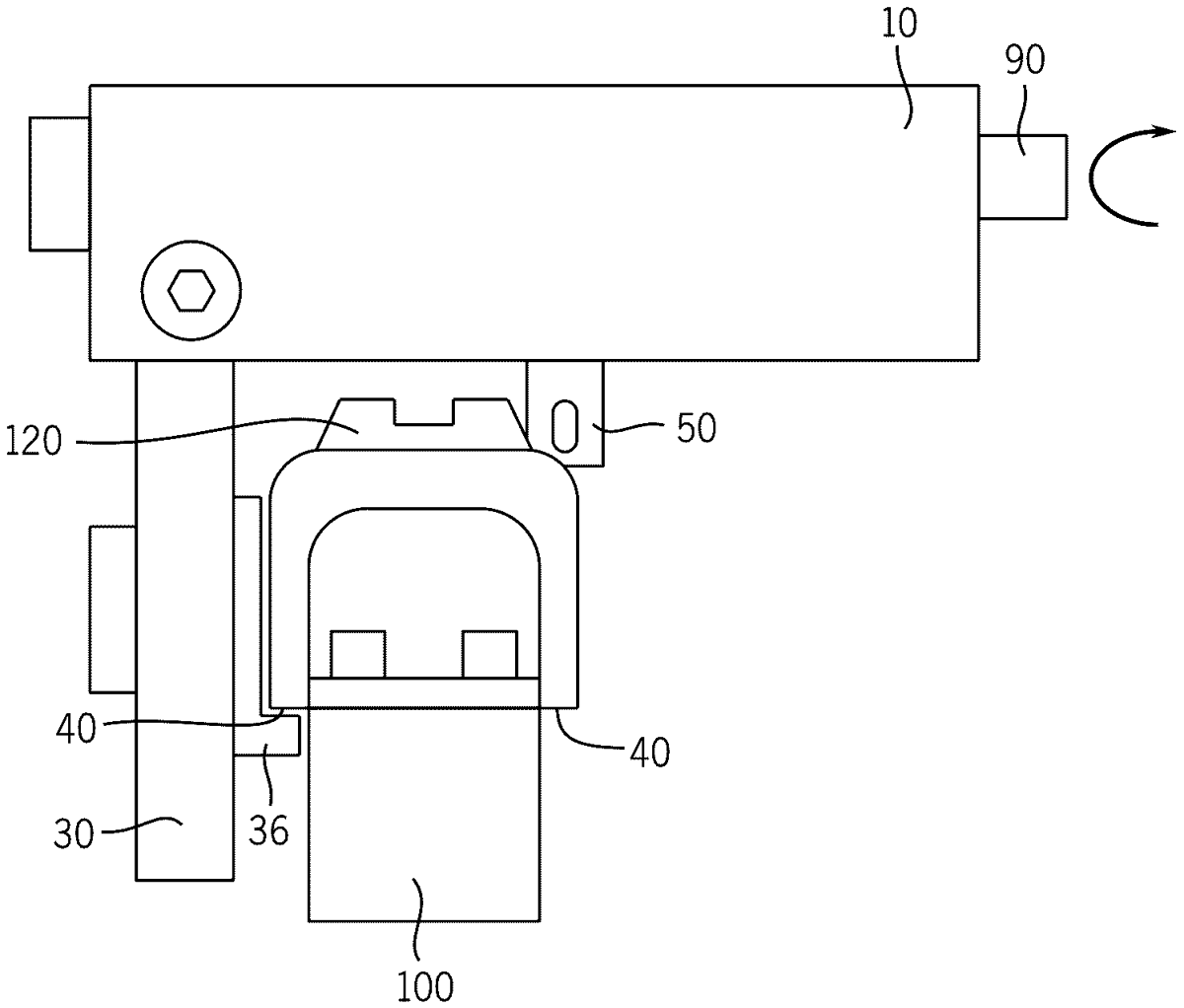

A compact dovetail pistol sight adjustment tool is provided. The compact dovetail pistol sight adjustment tool has a main housing, a folding leg, a folding sight pusher, an adjustable ratchet and a hex drive. The compact dovetail pistol sight adjustment tool can be transformed into a collapsed orientation for easy storage and transportation.

Assignee: TITAN PRODUCT DEVELOPMENT, LLC
Inventors: Kristian Nielsen
Filing date: 2024-09-27

The patent describes a compact tool designed for adjusting dovetail pistol sights, featuring a main housing, a folding leg, and a movable sight pusher. This tool can be collapsed for convenient storage and transportation, enhancing its usability for firearm enthusiasts.

Claim 1

1 . A compact dovetail firearm sight adjustment tool comprising: a main housing having a top, a bottom, a first side, a second side, a front and a back; a folding leg pivotally attached to the second side of the main housing; a movable sight pusher; and wherein the sight pusher pushes a dovetail sight of a firearm from a first position to a second position with respect to the stationary firearm. a main housing having a top, a bottom, a first side, a second side, a front and a back; a folding leg pivotally attached to the second side of the main housing; a movable sight pusher; and wherein the sight pusher pushes a dovetail sight of a firearm from a first position to a second position with respect to the stationary firearm.
