US12449222 - Firearm mounting system

The patent describes a firearm mounting system featuring a base assembly with a tension control sub-system, a bracket, and a pivotable swing arm that includes both vertical and horizontal support legs. This design allows for elevational control of the firearm through a support plate that connects to the firearm, enhancing stability and adjustability.

Claim 1

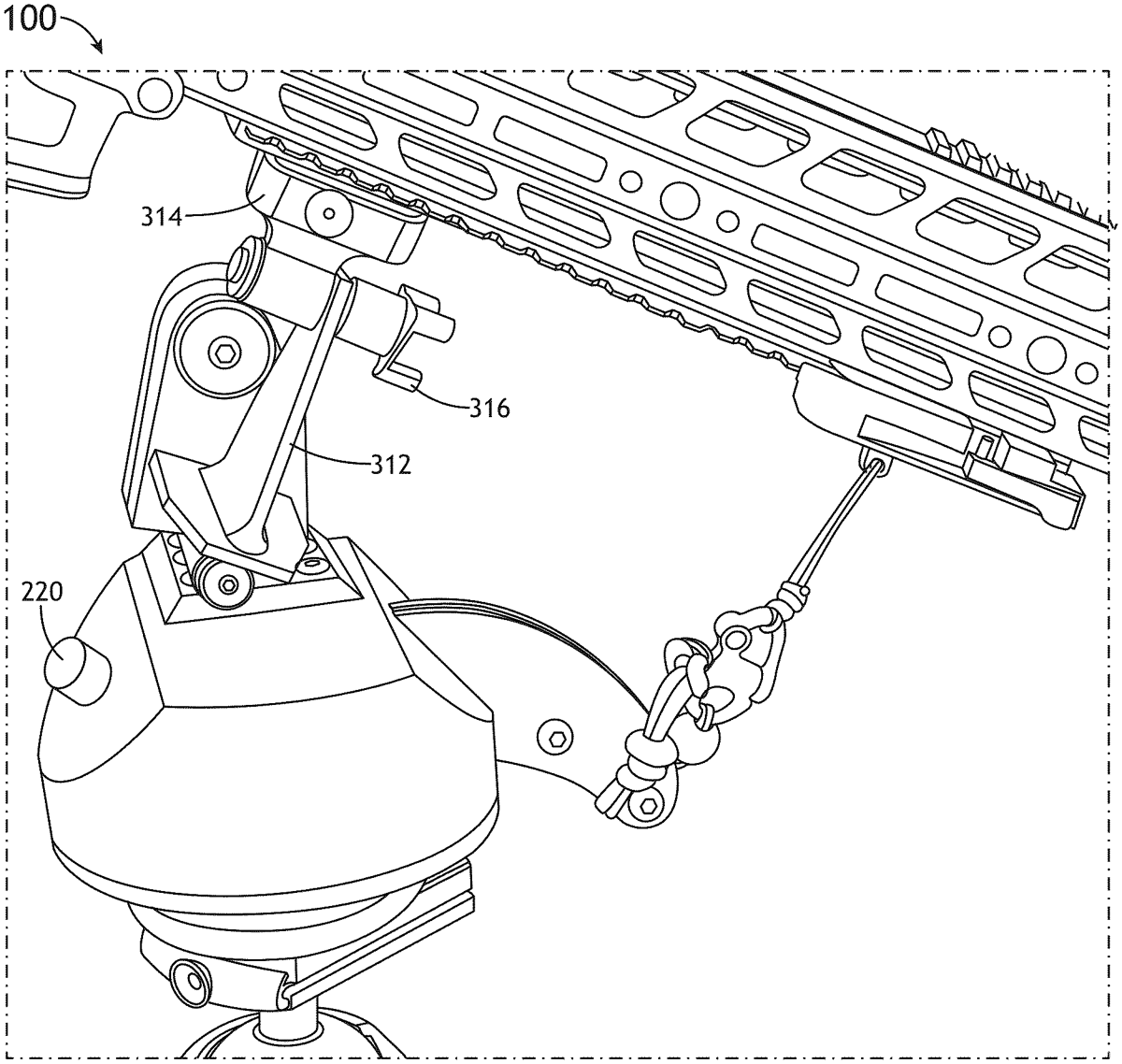

1. A firearm mounting system, comprising: a base assembly, the base assembly further comprising: a base body; and a tension control sub-system; a bracket coupled to a top surface of the base body; a swing arm pivotably coupled to the bracket, wherein the swing arm further comprises a vertical support leg and a horizontal support leg configured to pivot about an axis; a support plate coupled to the horizontal support leg of the swing arm, wherein the support plate is configured to provide elevational control of the firearm mounting system; and at least one support coupling configured to couple the support plate to at least a portion of a firearm. a base assembly, the base assembly further comprising: a base body; and a tension control sub-system; a base body; and a tension control sub-system; a bracket coupled to a top surface of the base body; a swing arm pivotably coupled to the bracket, wherein the swing arm further comprises a vertical support leg and a horizontal support leg configured to pivot about an axis; a support plate coupled to the horizontal support leg of the swing arm, wherein the support plate is configured to provide elevational control of the firearm mounting system; and at least one support coupling configured to couple the support plate to at least a portion of a firearm.
