Oct 7, 2025

US12435959 - Three target thrower system

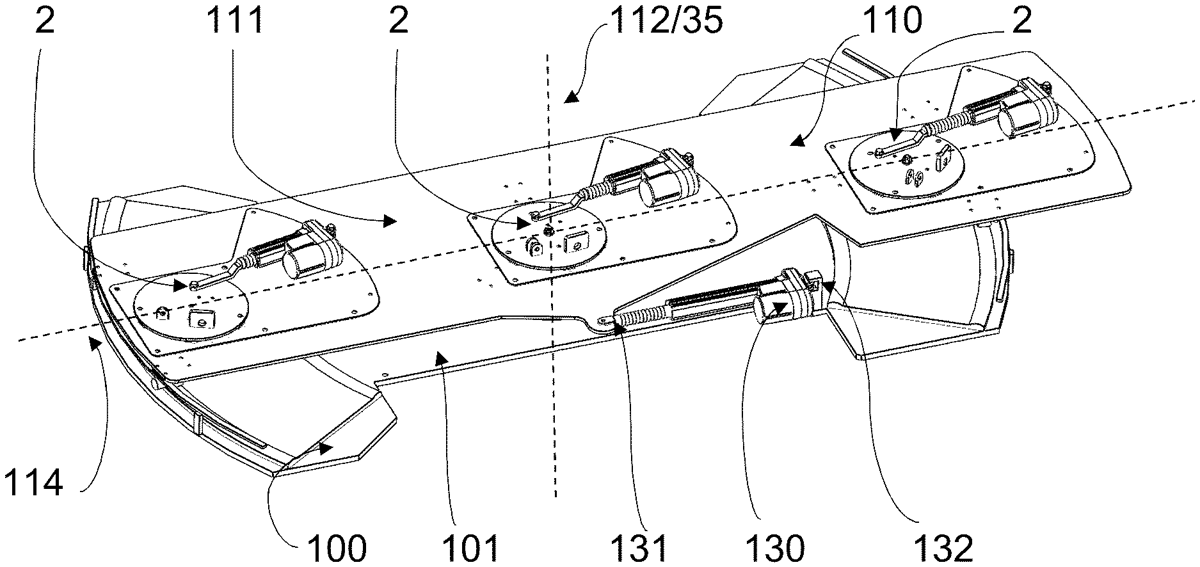

A target throwing system for sport shooting includes, successively along a direction of alignment, a first target throwing machine, a second target throwing machine, and a third target throwing machine, each of the first machine, the second machine and the third machine includes a throwing unit movable in rotation relative to a base, a throwing arm movable in rotation relative to the throwing unit ( 3 ), wherein the base is a base common to the first target throwing machine, the second target throwing machine and the third target throwing machine, and in that it includes a stand on which the common base is movable in rotation along a base axis.

Assignee: LAPORTE HOLDING
Inventors: Jean-Michel Laporte
Filing date: 2022-01-25

The patent describes a target throwing system for sport shooting that consists of three machines aligned in succession, each featuring a rotating throwing unit and arm. The system is designed with a common base that allows for rotational movement along a base axis, enabling each machine to cover different angular sectors of deflection.

Claim 1

A target throwing system for sport shooting comprising, successively along a direction of alignment, a first target throwing machine, a second target throwing machine, and a third target throwing machine, each of the first machine, the second machine and the third machine comprising: a throwing unit movable in rotation relative to a base, a throwing arm movable in rotation relative to the throwing unit, a throwing unit movable in rotation relative to a base, a throwing arm movable in rotation relative to the throwing unit, wherein the base is a base common to the first target throwing machine, the second target throwing machine and the third target throwing machine, and in that it includes a stand on which the common base is movable in rotation along a base axis, further wherein each amongst the first machine, the second machine and the third machine is configured to respectively sweep a first angular sector of deflection, a second angular sector of deflection and a third angular sector of deflection, said sectors being different from each other.
