Sep 30, 2025

US12427847 - Electrified military vehicle

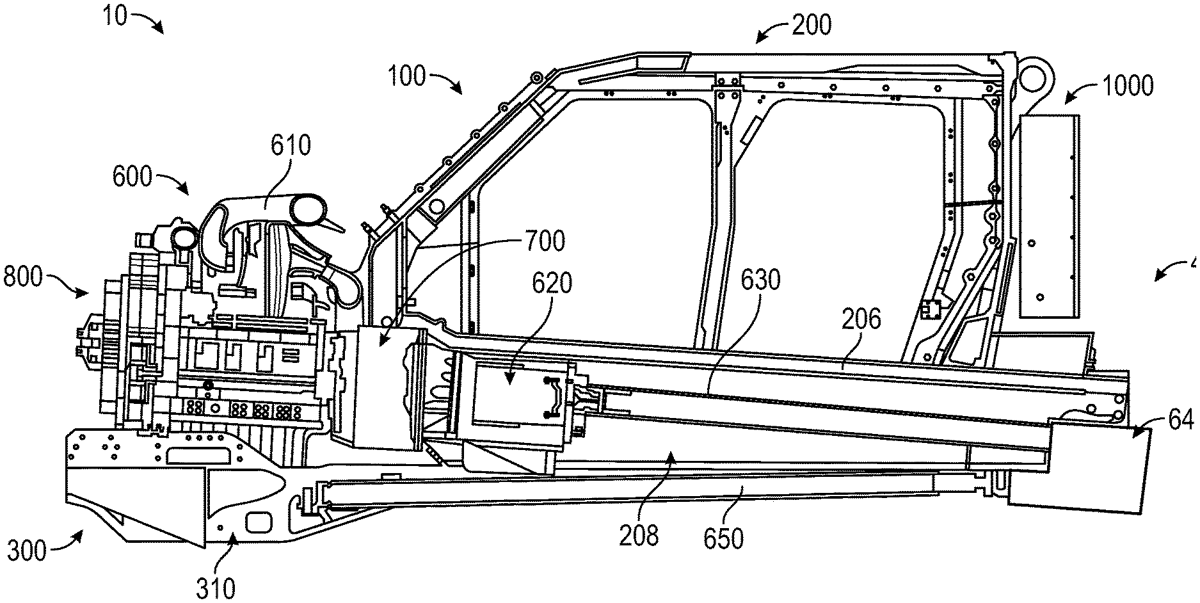

A military vehicle includes a passenger cabin having a tunnel extending along at least a portion of a bottom thereof, a bed positioned behind the passenger cabin, a battery system positioned within the bed, and a driveline. The driveline includes an engine positioned forward of the passenger cabin, one or more accessories coupled to the engine, and a motor/generator coupled to the engine and electrically coupled to the battery system. The motor/generator is at least partially positioned within the tunnel.

Assignee: OSHKOSH DEFENSE, LLC
Inventors: Chad Smith, Dave Marek, Neil Dekarske, Mike Bolton, Ryan Crabtree, Joseph Dehaan, Rachell Harsh, Michael Koenigs, Shawn Naglik, Mitchel Nordahl, Evan Schertz, Mikel Ullman, Jessica Szymanski, Bradon Zeitler, Deepak Shukla, Ed Trinklein, Tim Voight, Mike Yanacek, Matt Mathison, Nader Nasr
Filing date: 2023-12-18

The patent describes a military vehicle featuring a driveline that can operate in both electric-only and engine modes, allowing for silent operation when needed. It includes a battery system and a controller that switches modes based on the battery’s charge level.

Claim 1

A military vehicle comprising: a passenger cabin having a tunnel extending along at least a portion of a bottom thereof; a bed positioned behind the passenger cabin; a battery system positioned within the bed; a driveline including: an engine positioned forward of the passenger cabin; one or more accessories coupled to the engine; and a motor/generator coupled to the engine and electrically coupled to the battery system, the motor/generator at least partially positioned within the tunnel; wherein the driveline is operable in an electric-only or silent mode where (i) the engine is off and (ii) the motor/generator receives power from the battery system to drive an axle of the military vehicle; and wherein the driveline is operable in an engine mode where the engine at least partially drives the axle; and a controller configured to switch the driveline from the electric-only or silent mode to the engine mode in response to a state-of-charge of the battery system falling below a charge threshold. a passenger cabin having a tunnel extending along at least a portion of a bottom thereof; a bed positioned behind the passenger cabin; a battery system positioned within the bed; a driveline including: an engine positioned forward of the passenger cabin; one or more accessories coupled to the engine; and a motor/generator coupled to the engine and electrically coupled to the battery system, the motor/generator at least partially positioned within the tunnel; wherein the driveline is operable in an electric-only or silent mode where (i) the engine is off and (ii) the motor/generator receives power from the battery system to drive an axle of the military vehicle; and wherein the driveline is operable in an engine mode where the engine at least partially drives the axle; and an engine positioned forward of the passenger cabin; one or more accessories coupled to the engine; and a motor/generator coupled to the engine and electrically coupled to the battery system, the motor/generator at least partially positioned within the tunnel; wherein the driveline is operable in an electric-only or silent mode where (i) the engine is off and (ii) the motor/generator receives power from the battery system to drive an axle of the military vehicle; and wherein the driveline is operable in an engine mode where the engine at least partially drives the axle; and a controller configured to switch the driveline from the electric-only or silent mode to the engine mode in response to a state-of-charge of the battery system falling below a charge threshold.
