Sep 23, 2025

US12422228 - Monitor device having bullet dispersion prevention function for shooting game

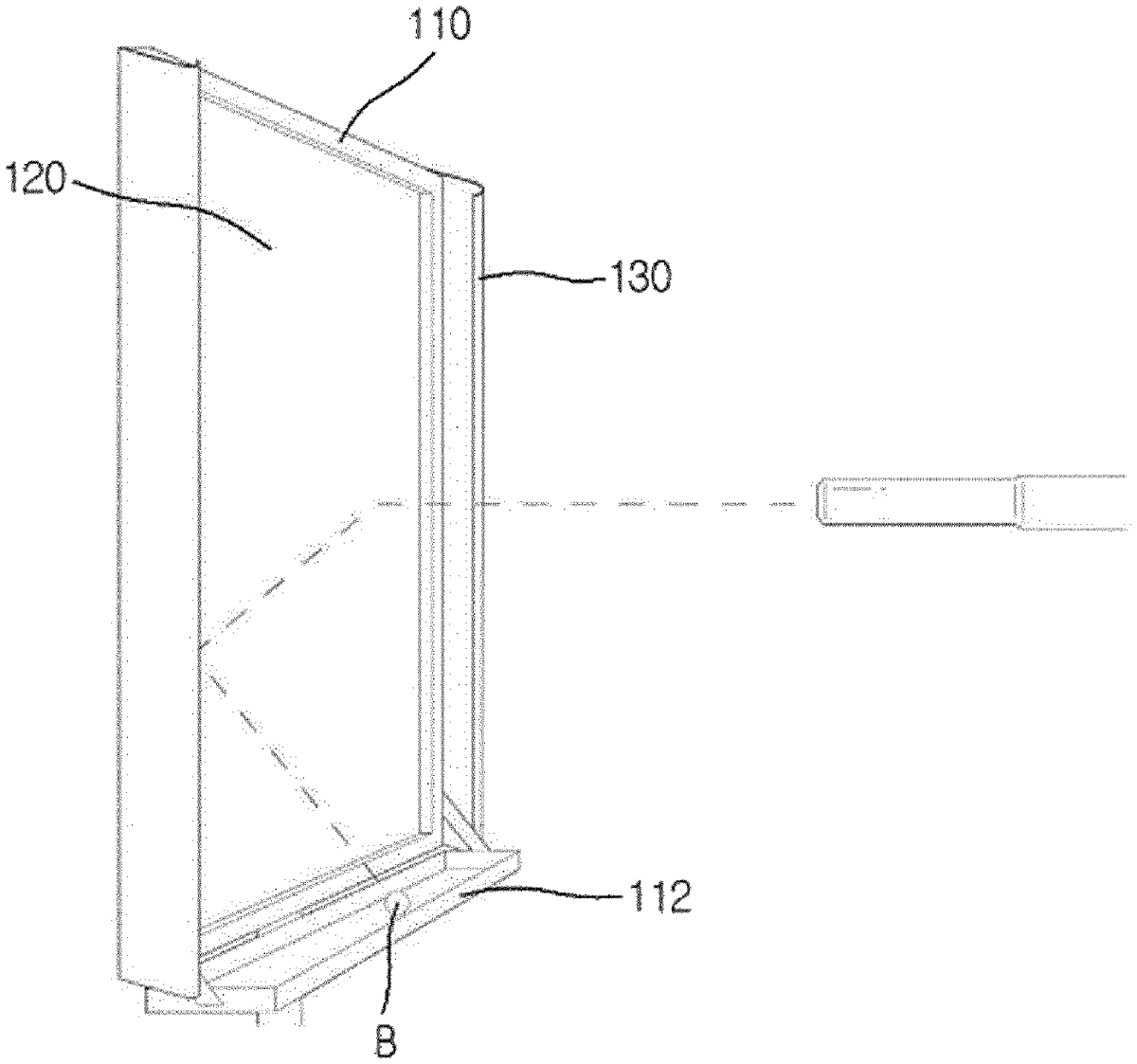

A monitor device according to an embodiment of the present disclosure has a bullet dispersion prevention function for a shooting game. The monitor device includes a frame coupled along a circumferential surface of the display apparatus and protruding out of a front surface of the display device, an impact-absorbing shooting pad coupled to an end of the protruding frame, formed to be transparent to show an image displayed on the display device, and configured to, when a bullet hits a hitting surface at an angle within a preset angle range from the vertical, absorb impact of the bullet so that the bullet hitting the hitting surface falls downward, and a bullet dispersion prevention unit configured to, when a bullet hits the impact-absorbing shooting pad at an angle exceeding the preset angle range from the vertical, enable the bullet to fall downward without being scattered outward.

Assignee: GUNPOWER CORPORATION
Inventors: Young Pyo Hong
Filing date: 2020-09-03

The patent describes a monitor device designed for shooting games that features a bullet dispersion prevention function, utilizing an impact-absorbing shooting pad to manage bullet impacts. This device ensures that bullets hitting at specific angles are absorbed and fall downward, while also preventing scattering when bullets hit at steeper angles.

Claim 1

A monitor device coupled to a display device comprising: a frame coupled along a circumferential surface of the display apparatus and protruding out of a front surface of the display device; an impact-absorbing shooting pad coupled to an end of the protruding frame, formed to be transparent to show an image displayed on the display device, and configured to, when a bullet hits a hitting surface at an angle within a preset angle range from the vertical, absorb impact of the bullet so that the bullet hitting the hitting surface does not go through the impact-absorbing shooting pad and falls downward; and a bullet dispersion prevention unit configured to, when a bullet hits the impact-absorbing shooting pad at an angle exceeding the preset angle range from the vertical, enable the bullet bounced from the impact-absorbing shooting pad to fall downward without being scattered outward. a frame coupled along a circumferential surface of the display apparatus and protruding out of a front surface of the display device; an impact-absorbing shooting pad coupled to an end of the protruding frame, formed to be transparent to show an image displayed on the display device, and configured to, when a bullet hits a hitting surface at an angle within a preset angle range from the vertical, absorb impact of the bullet so that the bullet hitting the hitting surface does not go through the impact-absorbing shooting pad and falls downward; and a bullet dispersion prevention unit configured to, when a bullet hits the impact-absorbing shooting pad at an angle exceeding the preset angle range from the vertical, enable the bullet bounced from the impact-absorbing shooting pad to fall downward without being scattered outward.
