US12410986 - Projectile loader having streamlined external body and internal opening mechanism

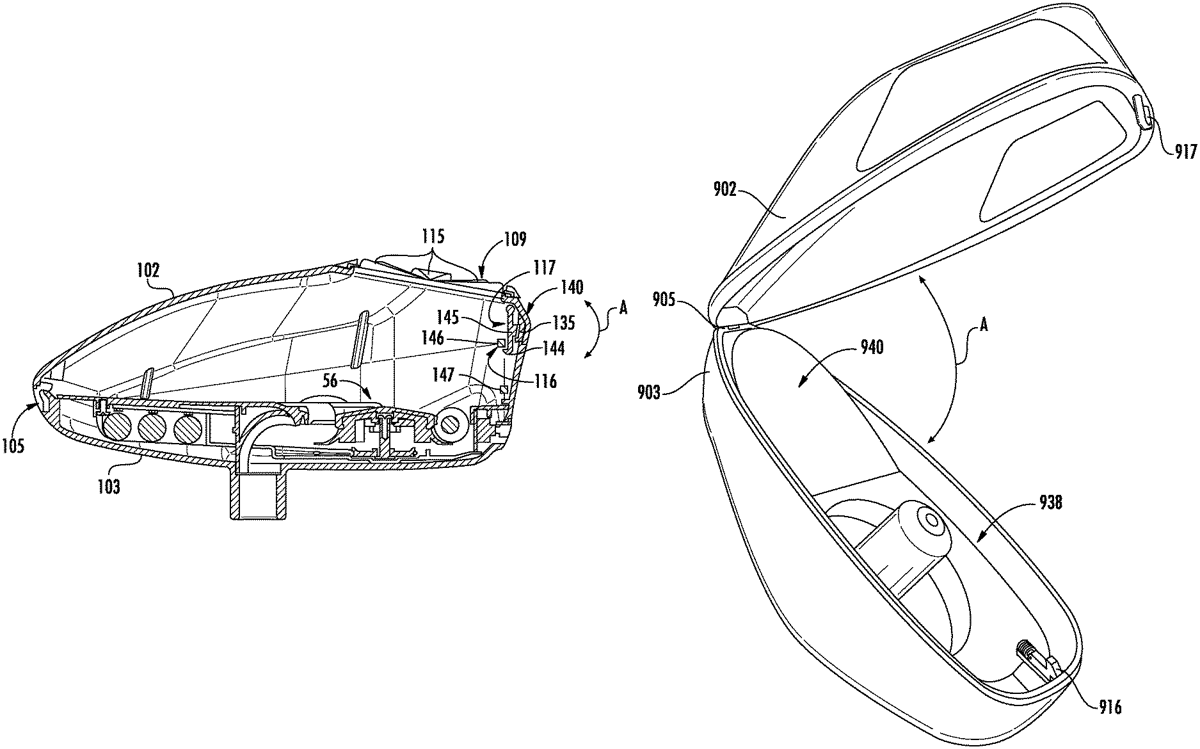

The patent describes a projectile loader with a hinged body that consists of two portions, allowing for movement between open and closed positions. It features an internal release mechanism that can only be accessed through a top opening, enhancing the loader’s streamlined design.

Claim 1

1. A projectile loader, comprising: a body having an upper portion and defining an interior area for housing internal components, the body comprising an opening for loading projectiles into the projectile loader; the body being split into a first portion and a second portion; the first portion attached to the second portion, the first portion and second portion moveable relative to each other between an open position and a closed position; and a release mechanism configured to selectively permit detaching the first portion and the second portion, wherein an actuator of the release mechanism is located completely within the interior area of the body, and wherein the actuator of the release mechanism is only accessible via the opening. a body having an upper portion and defining an interior area for housing internal components, the body comprising an opening for loading projectiles into the projectile loader; the body being split into a first portion and a second portion; the first portion attached to the second portion, the first portion and second portion moveable relative to each other between an open position and a closed position; and a release mechanism configured to selectively permit detaching the first portion and the second portion, wherein an actuator of the release mechanism is located completely within the interior area of the body, and wherein the actuator of the release mechanism is only accessible via the opening.
