Sep 2, 2025

US12405089 - Locating fastener for firearm optic

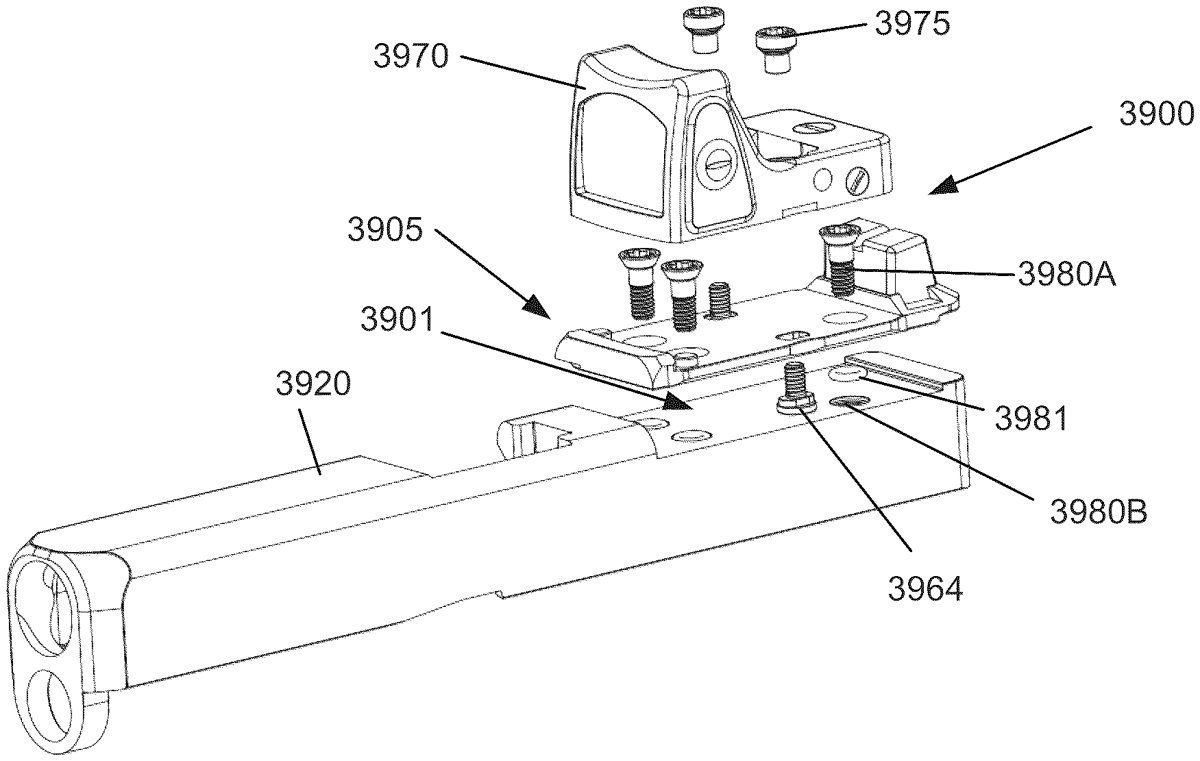

In various embodiments, an apparatus comprises a locating optic assembly mount arranged to receive an optic or a bracket on which the optic is installed, wherein the locating optic assembly mount includes: one or more locating fastener openings to receive one or more locating fasteners with threaded sections and non-threaded shoulders, wherein the non-threaded shoulders extend through the optic or bracket and below a surface located below the optic or bracket, each locating fastener opening including: a threaded hole to mate with the threaded section of the corresponding locating fastener; and a counter opening located above the threaded hole, wherein the counter opening is arranged to slip fit with the non-threaded shoulder of the corresponding locating fastener to align a center axis of the locating fastener with a center axis of the locating fastener openings. Other embodiments may be disclosed and/or claimed.

Assignee: AXTS, INC.
Inventors: Joshua A. Underwood
Filing date: 2023-10-03

firearmopticmount

The patent describes an apparatus for mounting an optic on a firearm, featuring a locating optic assembly mount with threaded fasteners and non-threaded shoulders that ensure proper alignment and stability. This design aims to protect the threaded connections from shearing forces during operation by utilizing a rearward urging mechanism against a buttressing surface.

Claim 1

An apparatus usable in a firearm system, the firearm system having a front end including an opening a fired projectile exits from, and a rear end opposite the front end, the apparatus comprising: an assembly mountable on the firearm system, wherein at least one part of the assembly is fastenable to at least one surface of at least one base part, using one or more threaded lengths associated with the at least one surface of the at least one base part; the at least one part and the at least one base part including: a threaded opening, and a non-threaded opening defining a tapered opening arranged to rearwardly urge the at least one part of the assembly against at least one buttressing surface, in response to fastening the at least one part of the assembly to the at least one base part using the threaded opening, wherein the at least one buttressing surface is not part of the one or more threaded lengths; the rearward urging against the at least one buttressing surface to protect the one or more threaded lengths from sheering forces when a rearward force, in a direction from the front end of the firearm system to a rear end of the firearm system, is applied to the firearm system. an assembly mountable on the firearm system, wherein at least one part of the assembly is fastenable to at least one surface of at least one base part, using one or more threaded lengths associated with the at least one surface of the at least one base part; the at least one part and the at least one base part including: a threaded opening, and a non-threaded opening defining a tapered opening arranged to rearwardly urge the at least one part of the assembly against at least one buttressing surface, in response to fastening the at least one part of the assembly to the at least one base part using the threaded opening, wherein the at least one buttressing surface is not part of the one or more threaded lengths; the rearward urging against the at least one buttressing surface to protect the one or more threaded lengths from sheering forces when a rearward force, in a direction from the front end of the firearm system to a rear end of the firearm system, is applied to the firearm system. a threaded opening, and a non-threaded opening defining a tapered opening arranged to rearwardly urge the at least one part of the assembly against at least one buttressing surface, in response to fastening the at least one part of the assembly to the at least one base part using the threaded opening, wherein the at least one buttressing surface is not part of the one or more threaded lengths; the rearward urging against the at least one buttressing surface to protect the one or more threaded lengths from sheering forces when a rearward force, in a direction from the front end of the firearm system to a rear end of the firearm system, is applied to the firearm system.
