US12379739 - Modular controller system for use with a weapon

The invention describes a modular controller system designed for integration with firearms, allowing users to control both the weapon and an accessory device, such as a drone, using a single hand. This system features a grip with buttons accessible by the user’s fingers while maintaining proximity to the weapon’s trigger, enhancing operational efficiency.

Claim 1

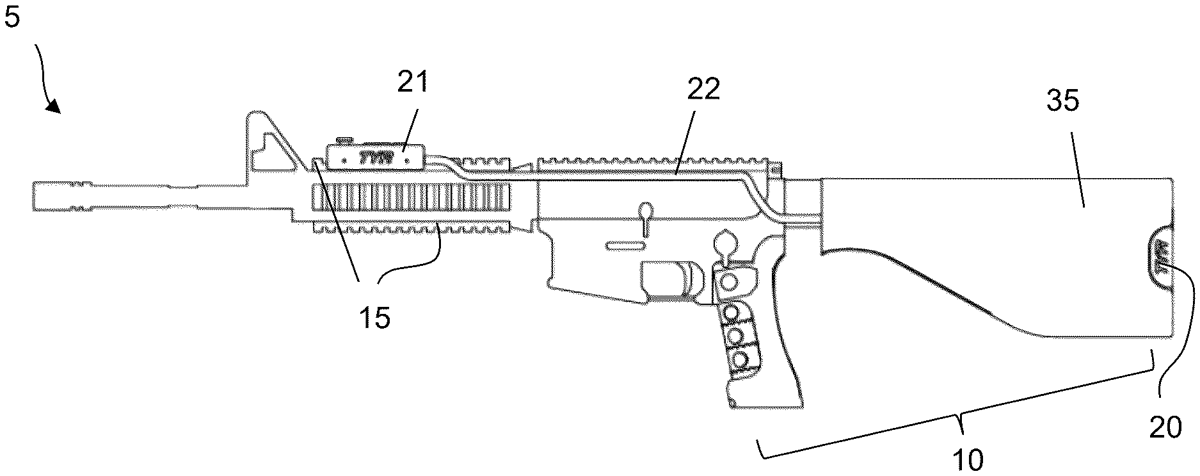

1. A controller system for installing on a weapon, the controller system comprising: a grip defined by a front face comprising one or more buttons and a rear face; a base comprising a first end defined by an opening and a channel and an opposed second end; wherein when installed on a weapon, the grip buttons are accessible by a middle finger, ring finger, and pinkie finger of a user while a pointer finger of the user is positioned adjacent to a trigger of the weapon, allowing a single hand of the user to access the grip buttons and the trigger of the weapon; wherein the grip buttons control a feature of an accessory device; wherein the weapon has an original buttstock and pistol grip removed and replaced by the grip and base. a grip defined by a front face comprising one or more buttons and a rear face; a base comprising a first end defined by an opening and a channel and an opposed second end; wherein when installed on a weapon, the grip buttons are accessible by a middle finger, ring finger, and pinkie finger of a user while a pointer finger of the user is positioned adjacent to a trigger of the weapon, allowing a single hand of the user to access the grip buttons and the trigger of the weapon; wherein the grip buttons control a feature of an accessory device; wherein the weapon has an original buttstock and pistol grip removed and replaced by the grip and base.
