Aug 5, 2025

US12378848 - Initiator assemblies for perforating gun systems

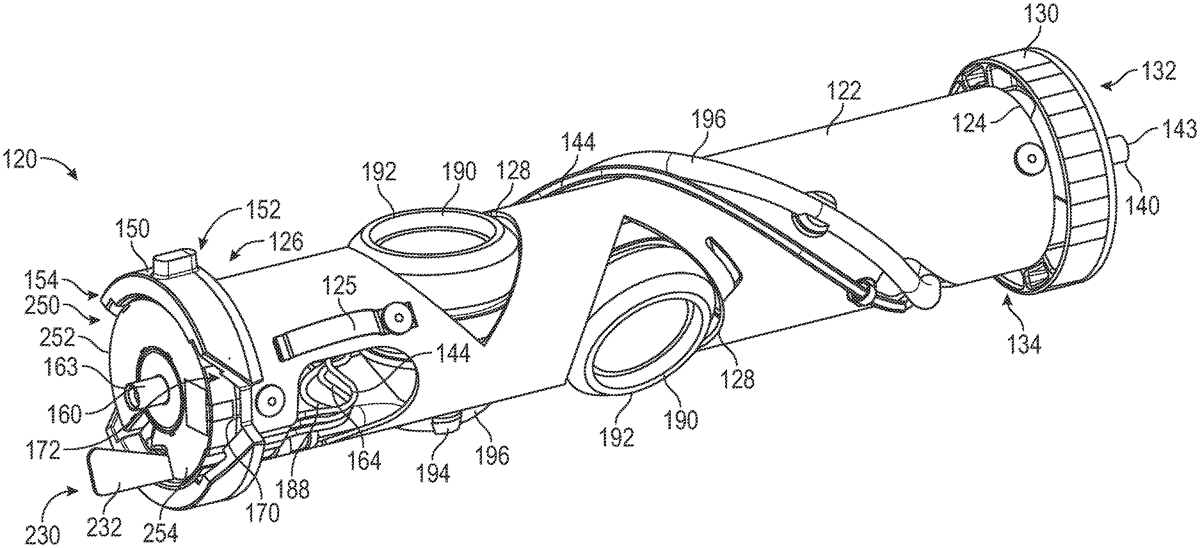

A perforating gun system includes an outer housing, a charge carrier assembly slidably receivable in the outer housing, wherein the charge carrier assembly includes a charge carrier having a central axis, a first endplate coupled to a first end of the charge carrier, and a second endplate coupled to a second end of the charge carrier, and an annular initiator assembly connectable to the charge carrier assembly, wherein the initiator assembly has a central opening whereby a central axis of the initiator assembly extends centrally through the central opening and parallel with the central axis of the charge carrier, wherein the initiator assembly is configured to detonate a detonator of the perforating gun system in response to receiving a firing signal.

Assignee: G&H Diversified Manufacturing LP
Inventors: James Edward Kash, Benjamin Vascal Knight, Ryan Ward, Timmothy Lee, Charles Levine
Filing date: 2023-11-07

The patent describes a perforating gun system featuring a charge carrier assembly and an annular initiator assembly designed to detonate a detonator upon receiving a firing signal. The initiator assembly includes an electrical switch and has a central opening that allows for external accessibility without radial overlap, enhancing safety and functionality.

Claim 1

A perforating gun system, comprising: an outer housing; a charge carrier assembly slidably receivable in the outer housing, wherein the charge carrier assembly comprises a charge carrier having a central axis, a first endplate coupled to a first end of the charge carrier, and a second endplate coupled to a second end of the charge carrier; and an annular initiator assembly comprising an electrical switch and connectable to the charge carrier assembly, wherein the initiator assembly has a central opening whereby a central axis of the initiator assembly extends centrally through the central opening and parallel with the central axis of the charge carrier, wherein the central opening is entirely externally accessible along the central axis of the initiator assembly between opposing ends of the central opening whereby the electrical switch does not radially overlap the central opening; wherein the initiator assembly is configured to detonate a detonator of the perforating gun system in response to receiving a firing signal. an outer housing; a charge carrier assembly slidably receivable in the outer housing, wherein the charge carrier assembly comprises a charge carrier having a central axis, a first endplate coupled to a first end of the charge carrier, and a second endplate coupled to a second end of the charge carrier; and an annular initiator assembly comprising an electrical switch and connectable to the charge carrier assembly, wherein the initiator assembly has a central opening whereby a central axis of the initiator assembly extends centrally through the central opening and parallel with the central axis of the charge carrier, wherein the central opening is entirely externally accessible along the central axis of the initiator assembly between opposing ends of the central opening whereby the electrical switch does not radially overlap the central opening; wherein the initiator assembly is configured to detonate a detonator of the perforating gun system in response to receiving a firing signal.
