US12372323 - Crossbow arrow rest

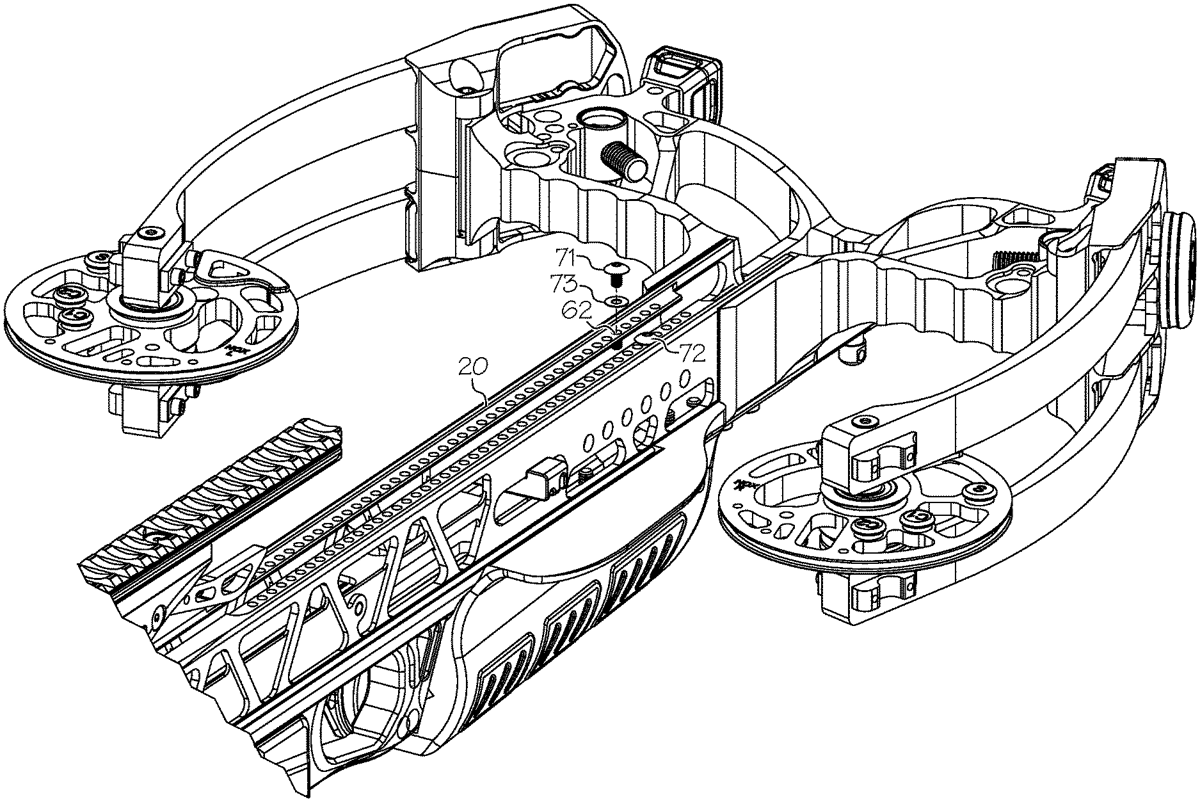

The patent describes a crossbow featuring a frame that supports an adjustable arrow rest at two distinct locations, with varying distances from the latch. This design allows for enhanced stability and versatility in arrow positioning during use.

Claim 1

1. A crossbow comprising: a frame comprising a groove; a bow portion comprising a bowstring; a latch; a trigger; and an arrow rest supported by the frame at a first location, the frame arranged to support the arrow rest at a second location, a distance between the latch and the first location being different from a distance between the latch and the second location, the arrow rest comprising a first fastener and a second fastener, the first location comprising a first aperture and a second aperture arranged on opposite sides of the groove, the first fastener engaged with the first aperture and the second fastener engaged with the second aperture. a frame comprising a groove; a bow portion comprising a bowstring; a latch; a trigger; and an arrow rest supported by the frame at a first location, the frame arranged to support the arrow rest at a second location, a distance between the latch and the first location being different from a distance between the latch and the second location, the arrow rest comprising a first fastener and a second fastener, the first location comprising a first aperture and a second aperture arranged on opposite sides of the groove, the first fastener engaged with the first aperture and the second fastener engaged with the second aperture.
