US12372318 - Trigger shoe assembly

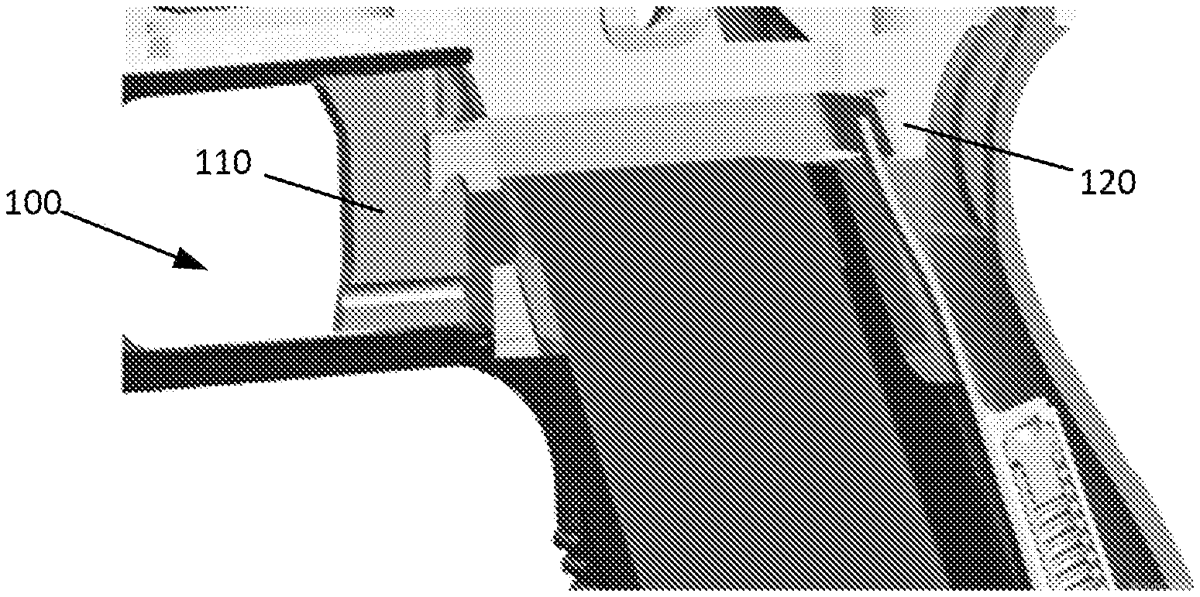

The patent describes a trigger shoe assembly for firearms that includes a trigger shoe, a trigger bow, and a set screw designed to secure the components together. The assembly features a unique design with angled surfaces that facilitate the engagement of the trigger bow and trigger shoe, ensuring reliable operation.

Claim 1

1. A firearm comprising: a slide assembly; a barrel; a frame; and a trigger shoe assembly comprising: a trigger shoe having a back portion defining a rear channel; a trigger bow having a front tab configured to be received by the rear channel, wherein the front tab and rear channel define corresponding angled surfaces facilitating seating of the front tab within the rear channel, the rear channel terminating at a lip engaging with a notch of the front tab for full engagement of the trigger shoe with the trigger bow; and a set screw biasing the trigger bow into full engagement with the trigger shoe, wherein the set screw extends vertically through a top rear portion of the trigger shoe and engages a top portion of the front tab of the trigger bow. a slide assembly; a barrel; a frame; and a trigger shoe assembly comprising: a trigger shoe having a back portion defining a rear channel; a trigger bow having a front tab configured to be received by the rear channel, wherein the front tab and rear channel define corresponding angled surfaces facilitating seating of the front tab within the rear channel, the rear channel terminating at a lip engaging with a notch of the front tab for full engagement of the trigger shoe with the trigger bow; and a set screw biasing the trigger bow into full engagement with the trigger shoe, wherein the set screw extends vertically through a top rear portion of the trigger shoe and engages a top portion of the front tab of the trigger bow. a trigger shoe having a back portion defining a rear channel; a trigger bow having a front tab configured to be received by the rear channel, wherein the front tab and rear channel define corresponding angled surfaces facilitating seating of the front tab within the rear channel, the rear channel terminating at a lip engaging with a notch of the front tab for full engagement of the trigger shoe with the trigger bow; and a set screw biasing the trigger bow into full engagement with the trigger shoe, wherein the set screw extends vertically through a top rear portion of the trigger shoe and engages a top portion of the front tab of the trigger bow.
