Jul 22, 2025

US12366428 - Adjustable tension device

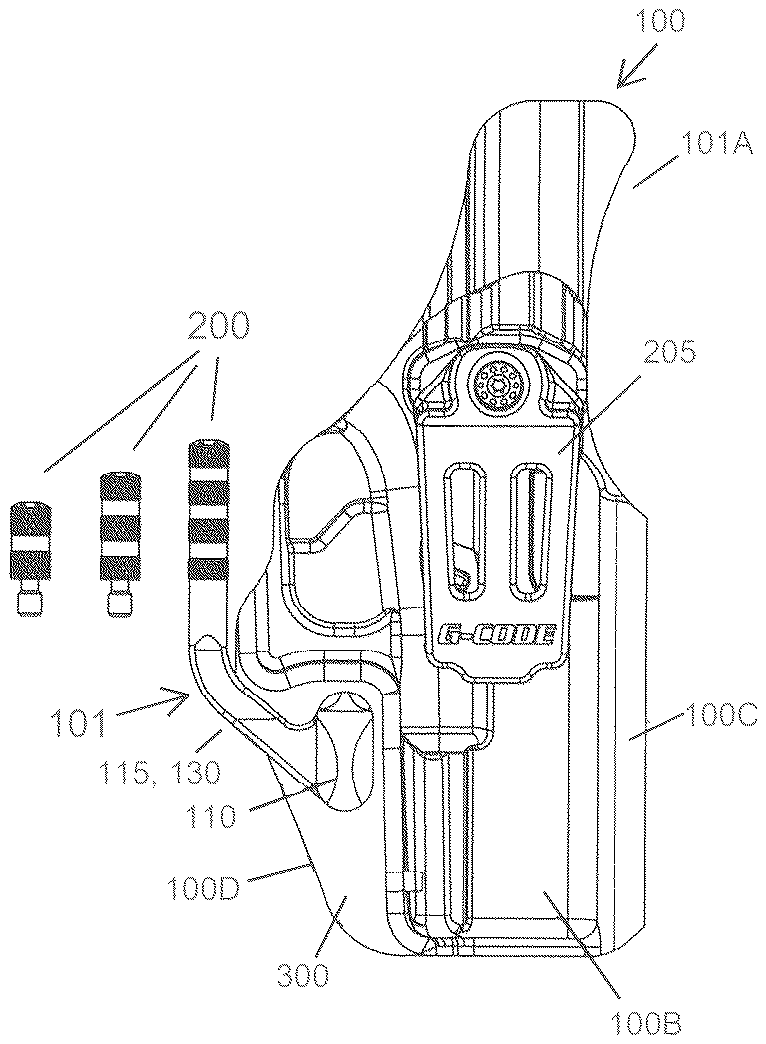

An adjustable tension device for use in connection with accessories designed to be worn inside of a user's waistband. The tension device is operable to attach to said accessory and provide an added point of leverage against the user's clothing, thereby holding the accessory snugly against the user's body. The tension device includes a base, and fixed arm, and a plurality of extensions of varying lengths, wherein said extensions are able to attach to the fixed arm, thereby providing varying arm lengths depending on the orientation of the accessory in relation to the user's body.

Inventors: Scott V Evans
Filing date: 2022-10-12

The patent describes an adjustable tension device designed to secure a holster or accessory inside a user’s waistband, enhancing stability and comfort by leveraging the user’s clothing. It features a base, a fixed arm with two members separated by a bend, and an extension arm that can be adjusted for varying lengths to accommodate different orientations of the accessory.

Claim 1

An adjustable tension device for use with a holster comprising: a base, a fixed arm having a first member and a second member, the first member and the second member separated by a bend portion, and an extension arm, wherein the first member of the fixed arm extends in a diagonal direction away from the base up to the bend portion, wherein the second member extends in a direction that is offset from the orientation of the first member, wherein the second member of the fixed arm is removably coupled to the extension arm. a base, a fixed arm having a first member and a second member, the first member and the second member separated by a bend portion, and an extension arm, wherein the first member of the fixed arm extends in a diagonal direction away from the base up to the bend portion, wherein the second member extends in a direction that is offset from the orientation of the first member, wherein the second member of the fixed arm is removably coupled to the extension arm.
