US12345507 - System, apparatus, and method for a movable ballistic barrier

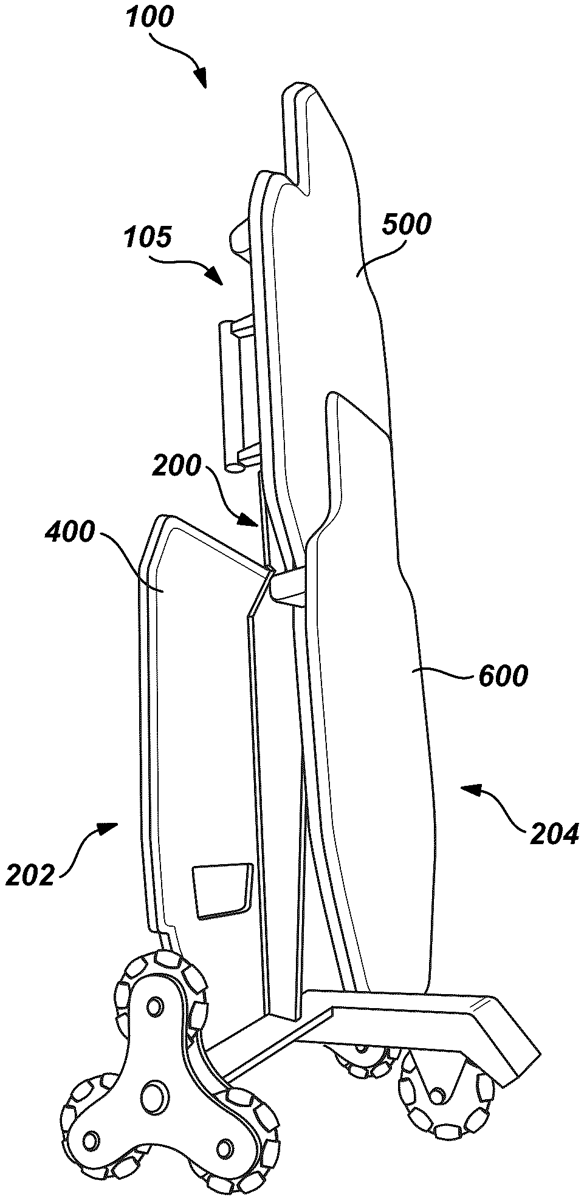

The patent describes an apparatus designed to support two removable ballistic shields using a structural frame and a wheel assembly for mobility. The wheel assembly is rotatably attached to the frame’s base and features multiple axles that facilitate rotation around the structural connector.

Claim 1

1. An apparatus for supporting a first ballistic shield and a second ballistic shield, comprising: a structural frame; and a wheel assembly rotatably attached to a structural connector of a base assembly of the structural frame; wherein the structural frame is configured to removably attach to the first ballistic shield; wherein the structural frame is configured to removably attach to the second ballistic shield; and wherein the wheel assembly includes a plurality of axles spaced away from the structural connector and configured to rotate about the structural connector when the wheel assembly rotates. a structural frame; and a wheel assembly rotatably attached to a structural connector of a base assembly of the structural frame; wherein the structural frame is configured to removably attach to the first ballistic shield; wherein the structural frame is configured to removably attach to the second ballistic shield; and wherein the wheel assembly includes a plurality of axles spaced away from the structural connector and configured to rotate about the structural connector when the wheel assembly rotates.
