US12345498 - Grenade device of a toy gun with an adjustable firing muzzle and an adjusting method thereof

A grenade device of a toy gun with an adjustable firing muzzle provided by the present invention comprises: a case, a pressure chamber, a projectile chamber, a switch valve, a launch tube, an outer cover, and a switch cover. The pressure chamber is in the case and receives a pressurized fluid. The projectile chamber is in the case and loaded plural projectile bodies in. The switch valve is between the pressure chamber and the pressure inlet, and is in a starting position to guide the pressurized fluid from the pressure chamber to the projectile chamber. The launch tube has a first and second end. The launch tube cooperates with the pressure chamber and the pressurized fluid to inject the projectile bodies. The outer cover is connected with the case, and has an opening. The switch cover has a through hole and is at a first or second position.

Assignee: KRISS INDUSTRIES ASIA LTD.
Inventors: Kai-Hung Hsieh
Filing date: 2024-02-14

The patent describes a grenade device for a toy gun that features an adjustable firing muzzle, allowing for the injection of multiple projectile bodies using pressurized fluid. It includes components such as a pressure chamber, projectile chamber, and a switch valve to control the flow of the pressurized fluid, enabling different configurations for projectile arrangement.

Claim 1

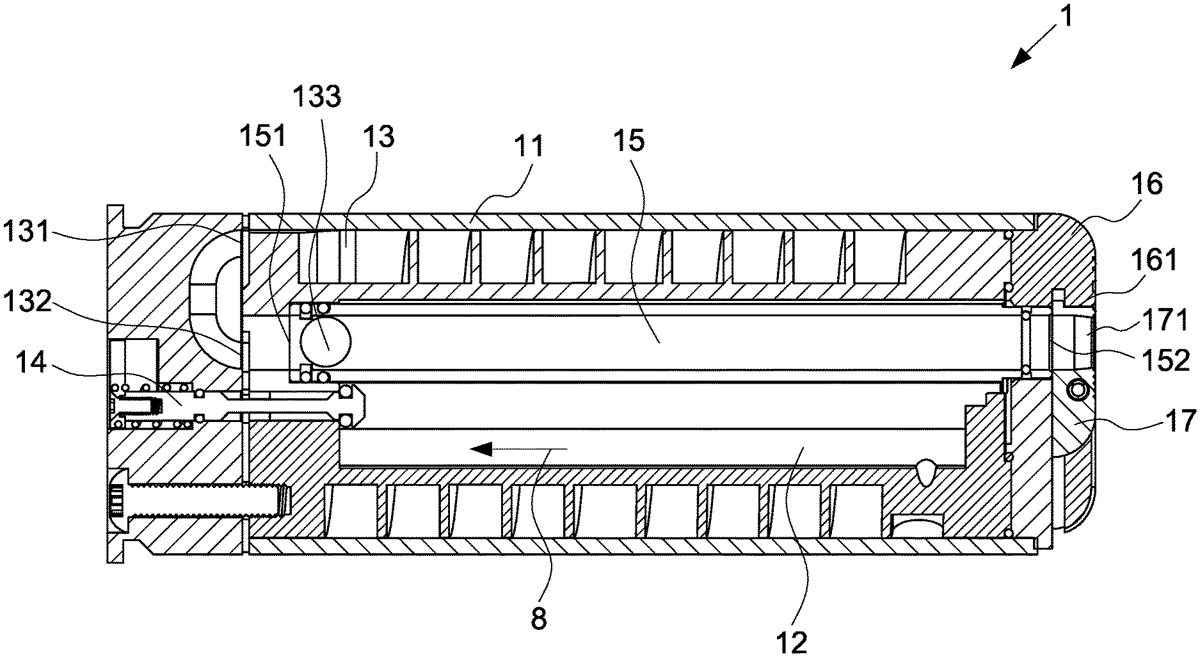

A grenade device of a toy gun with an adjustable firing muzzle comprising: a case ( 11 ); a pressure chamber ( 12 ), located in the case ( 11 ) and receiving a pressurized fluid ( 8 ); a projectile chamber ( 13 ), located in the case ( 11 ), loaded a plurality of projectile bodies ( 133 ) in, and having a pressure inlet ( 131 ) and a pressure outlet ( 132 ); a switch valve ( 14 ), located in between the pressure chamber ( 12 ) and the pressure inlet ( 131 ), wherein the switch valve ( 14 ) is located in a staring position, in order to guide the pressurized fluid ( 8 ) from the pressure chamber ( 12 ) to the projectile chamber ( 13 ); a launch tube ( 15 / 15 a ), having a first end ( 151 ) and a second end ( 152 ), the first end ( 151 ) being connected with the pressure outlet ( 132 ), wherein the launch tube ( 15 / 15 a ) cooperates with the pressure chamber ( 12 ) and the pressurized fluid 8 to inject the projectile bodies ( 133 ); an outer cover ( 16 / 16 a ), being connected with a side of the case ( 11 ), having an opening ( 161 / 161 a ), which is adjacent to the second end ( 152 ) of the launch tube ( 15 / 15 a ); and a switch cover ( 17 / 17 a ), having a through hole ( 171 ) and located at a first position ( 21 / 21 a ) or a second position ( 22 ); wherein the plurality of the projectile bodies ( 133 ) projected by the launch tube ( 15 / 15 a ) are arranged into a first status ( 31 ) if the switch cover ( 17 / 17 a ) is at the first position ( 21 ) and the opening ( 161 / 161 a ) is close to the through hole ( 171 ), and the plurality of the projectile bodies ( 133 ) projected by the launch tube ( 15 / 15 a ) are arranged into a second status ( 32 ) if the switch cover ( 17 / 17 a ) is at the second position ( 22 ) and the opening ( 161 / 161 a ) is separated from the through hole ( 171 ). a case ( 11 ); a pressure chamber ( 12 ), located in the case ( 11 ) and receiving a pressurized fluid ( 8 ); a projectile chamber ( 13 ), located in the case ( 11 ), loaded a plurality of projectile bodies ( 133 ) in, and having a pressure inlet ( 131 ) and a pressure outlet ( 132 ); a switch valve ( 14 ), located in between the pressure chamber ( 12 ) and the pressure inlet ( 131 ), wherein the switch valve ( 14 ) is located in a staring position, in order to guide the pressurized fluid ( 8 ) from the pressure chamber ( 12 ) to the projectile chamber ( 13 ); a launch tube ( 15 / 15 a ), having a first end ( 151 ) and a second end ( 152 ), the first end ( 151 ) being connected with the pressure outlet ( 132 ), wherein the launch tube ( 15 / 15 a ) cooperates with the pressure chamber ( 12 ) and the pressurized fluid 8 to inject the projectile bodies ( 133 ); an outer cover ( 16 / 16 a ), being connected with a side of the case ( 11 ), having an opening ( 161 / 161 a ), which is adjacent to the second end ( 152 ) of the launch tube ( 15 / 15 a ); and a switch cover ( 17 / 17 a ), having a through hole ( 171 ) and located at a first position ( 21 / 21 a ) or a second position ( 22 ); wherein the plurality of the projectile bodies ( 133 ) projected by the launch tube ( 15 / 15 a ) are arranged into a first status ( 31 ) if the switch cover ( 17 / 17 a ) is at the first position ( 21 ) and the opening ( 161 / 161 a ) is close to the through hole ( 171 ), and the plurality of the projectile bodies ( 133 ) projected by the launch tube ( 15 / 15 a ) are arranged into a second status ( 32 ) if the switch cover ( 17 / 17 a ) is at the second position ( 22 ) and the opening ( 161 / 161 a ) is separated from the through hole ( 171 ).
