Jun 24, 2025

US12339099 - Point blank delta scope reticle

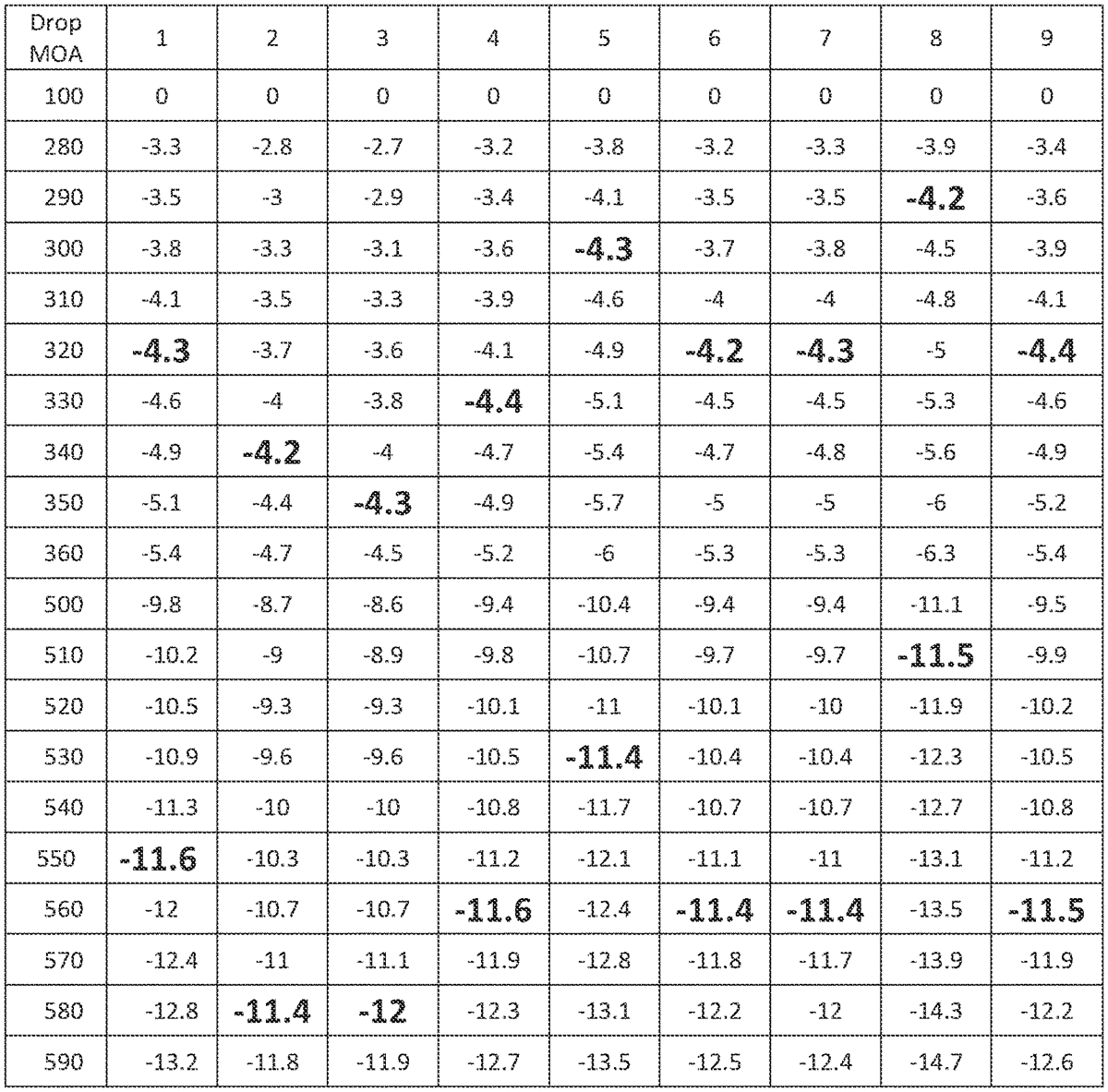

A point blank delta scope reticle, wherein all range and yardage solutions (horizontal x) may be removed and/or ignored and only the vertical Y component is utlized. A vital zone of a target is viewed as a Y value and a ballistic curve can be calculated that will pass thru the determined Y value. The Y value becomes a constant in all calculations. The constant then yields one or more unique ratios that all ammunition follows since the vertical Y component is the constant. The aiming reticle includes a reticle and one or more subsequent or successive reference marks formed in an aligned fashion between the reticle and a last reference mark, wherein a relative distance between each adjacent pair of the subsequent or successive reference marks decreases as the subsequent or successive reference marks are formed from the reticle to the last of the subsequent or successive reference marks.

Inventors: Jacob D. Baker, John L. Baker
Filing date: 2022-10-26

scopereticlefirearmaiming

The patent describes a point blank delta scope reticle designed to simplify aiming by focusing solely on the vertical component of a target’s vital zone, allowing for consistent ballistic calculations. It features a vertically aligned reticle with multiple aim points that are progressively closer together, enhancing precision in targeting.

Claim 1

A scope for aiming a gun, said scope comprising: a reticle comprising a plurality of aim points, wherein: the plurality of aim points are vertically aligned; each aim point of the plurality of aim points are vertically separated from one another; the plurality of aim points comprises a first aim point, a second aim point, and a third aim point; the first aim point is above the second aim point; the second aim point is above the third aim point; and the first aim point is further from the second aim point than the second aim point is from the third aim point. a reticle comprising a plurality of aim points, wherein: the plurality of aim points are vertically aligned; each aim point of the plurality of aim points are vertically separated from one another; the plurality of aim points comprises a first aim point, a second aim point, and a third aim point; the first aim point is above the second aim point; the second aim point is above the third aim point; and the first aim point is further from the second aim point than the second aim point is from the third aim point. the plurality of aim points are vertically aligned; each aim point of the plurality of aim points are vertically separated from one another; the plurality of aim points comprises a first aim point, a second aim point, and a third aim point; the first aim point is above the second aim point; the second aim point is above the third aim point; and the first aim point is further from the second aim point than the second aim point is from the third aim point.
