Jun 17, 2025

US12332014 - Foldable break barrel airgun

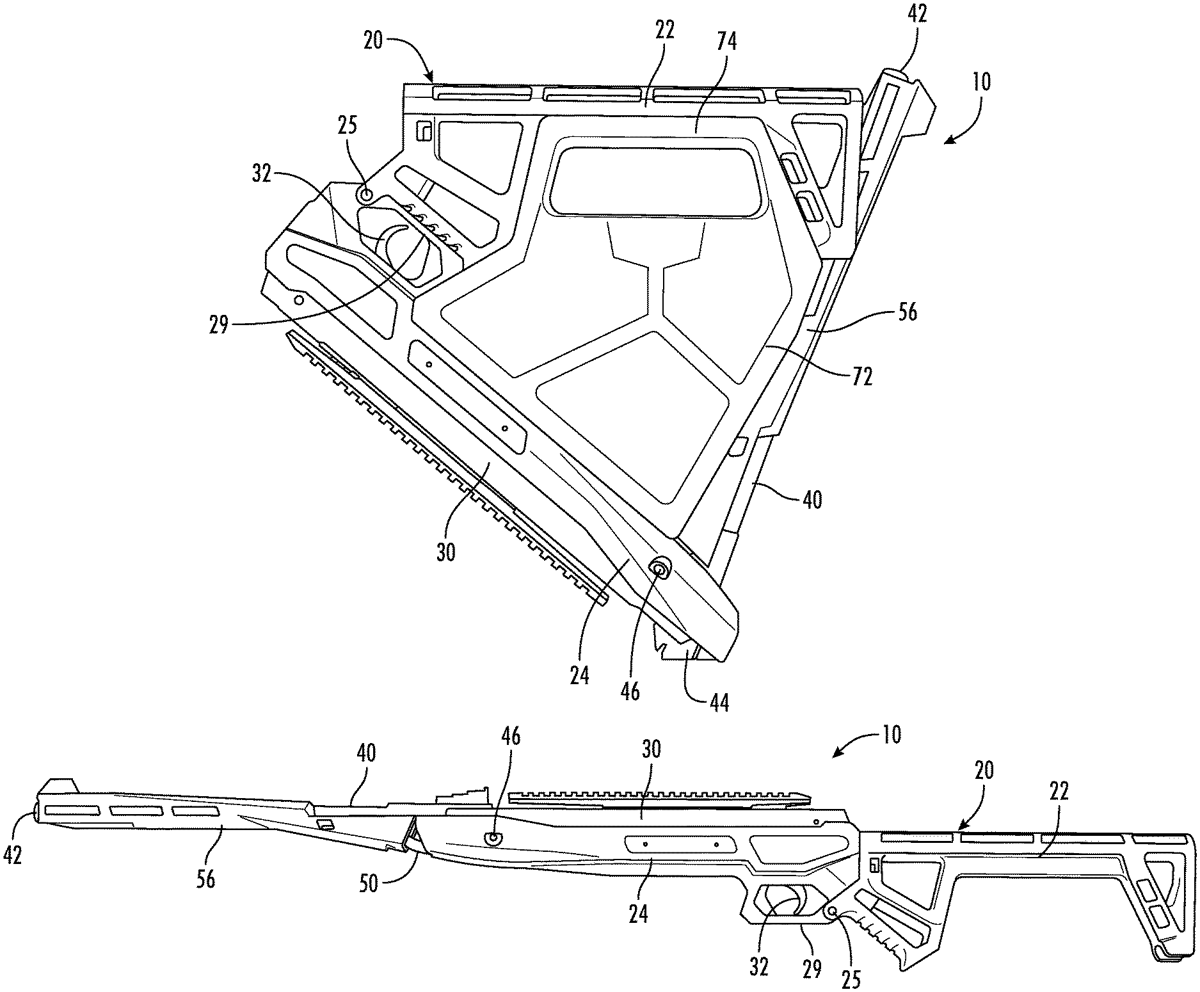

A foldable break barrel air gun that is movable from a stowed configuration to a use configuration. The foldable break barrel air gun includes a stock having a butt stock pivotally connected to a forestock in which a firing engine is located. A barrel having a muzzle end and a breech end is provided, with the barrel being pivotally connected to the forestock proximate the breech end. A cocking linkage has a first portion that is pivotally connected to the barrel and a second portion that is connected and/or engaged with the firing engine by a releasable linkage connection. With the releasable linkage connection released, the butt stock is foldable relative to the forestock, and the barrel is foldable relative to the forestock such that the butt stock is arranged in proximity to and preferably attachable to the barrel proximate to the muzzle end in the stowed configuration.

Assignee: Kore Outdoor (US) Inc.
Inventors: Tamir Porat, John Ronald Rice, Martin Stelling
Filing date: 2023-09-08

The patent describes a foldable break barrel airgun that can transition between a stowed and a use configuration, featuring a pivotally connected butt stock and forestock that houses the firing engine. The design allows the barrel and butt stock to fold towards each other, facilitating compact storage while maintaining a releasable linkage for the cocking mechanism.

Claim 1

A foldable break barrel air gun that is movable from a stowed configuration to a use configuration, the foldable break barrel air gun comprising: a stock including a butt stock pivotally connected to a forestock in which a firing engine is located; a barrel having a muzzle end and a breech end, the barrel being pivotally connected to the forestock proximate the breech end; a cocking linkage having a first portion that is pivotally connected to the barrel and a second portion that is held in at least one of connected or engaged position with the firing engine by a releasable linkage connection; wherein, with the releasable linkage connection in a released position and the second portion of the cocking linkage is disengaged from the firing engine, the butt stock is foldable relative to the forestock, and the barrel is foldable relative to the forestock such that the butt stock is attachable to the barrel proximate to the muzzle end in the stowed configuration. a stock including a butt stock pivotally connected to a forestock in which a firing engine is located; a barrel having a muzzle end and a breech end, the barrel being pivotally connected to the forestock proximate the breech end; a cocking linkage having a first portion that is pivotally connected to the barrel and a second portion that is held in at least one of connected or engaged position with the firing engine by a releasable linkage connection; wherein, with the releasable linkage connection in a released position and the second portion of the cocking linkage is disengaged from the firing engine, the butt stock is foldable relative to the forestock, and the barrel is foldable relative to the forestock such that the butt stock is attachable to the barrel proximate to the muzzle end in the stowed configuration.
