US12305968 - Arrow system

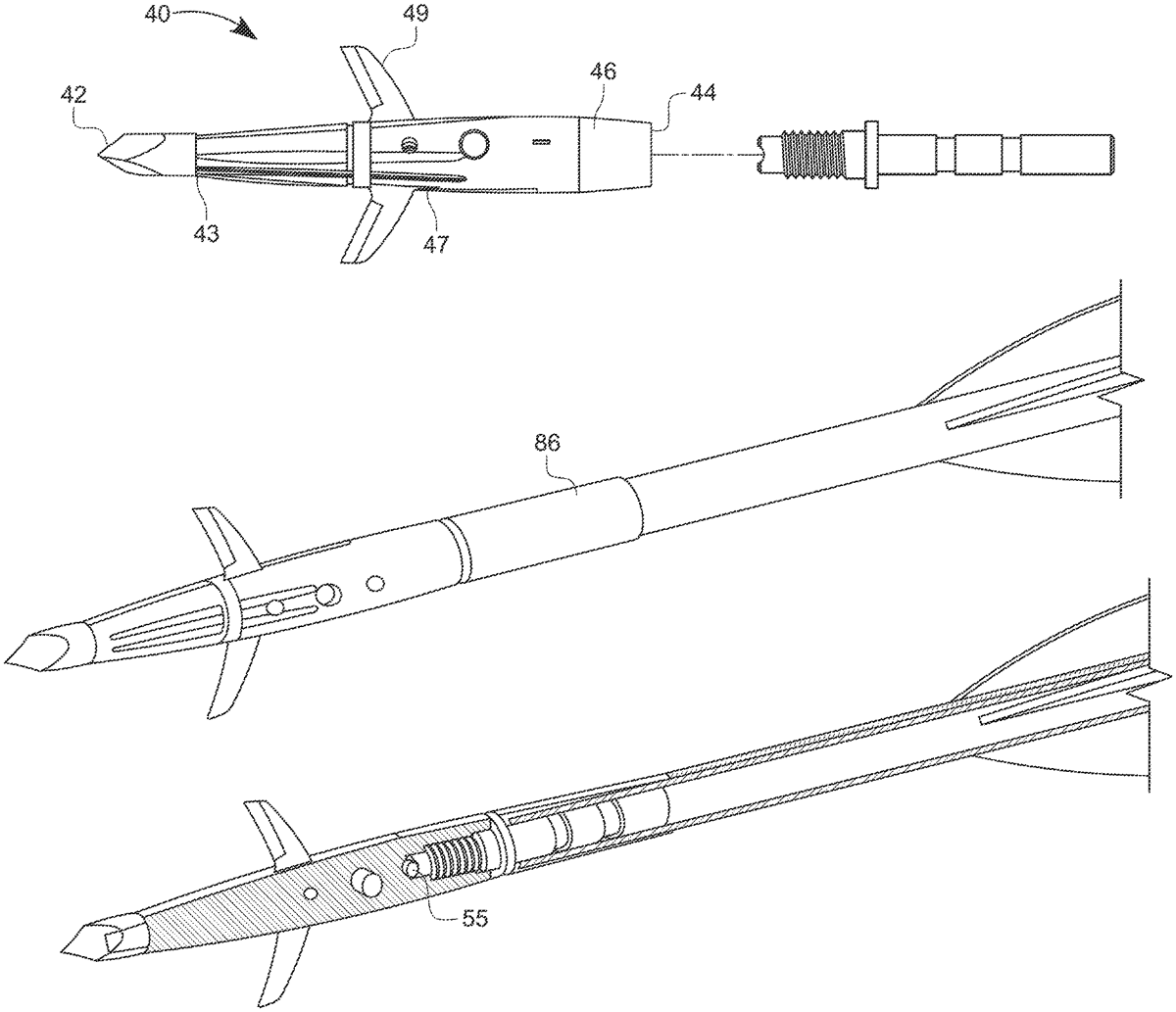

The patent describes an arrow system featuring a broadhead with internal female threading that connects to an insert with external male threading, allowing for a secure attachment to the arrow shaft. This screw-over configuration enhances the stability and performance of the arrow during use.

Claim 1

1. An arrow system comprising: a broadhead having a shank, wherein the shank has internal female threading; an insert extending between a distal end and a proximal end, wherein an external circumference of the proximal end is threadless for snugly sliding into an arrow shaft, and wherein the distal end provides an external male threading for selectively mating with said internal female threading; and a boss feature at a terminus of the distal end of the insert. a broadhead having a shank, wherein the shank has internal female threading; an insert extending between a distal end and a proximal end, wherein an external circumference of the proximal end is threadless for snugly sliding into an arrow shaft, and wherein the distal end provides an external male threading for selectively mating with said internal female threading; and a boss feature at a terminus of the distal end of the insert.
