May 20, 2025

US12305966 - Disruptive projectiles and method of making the same

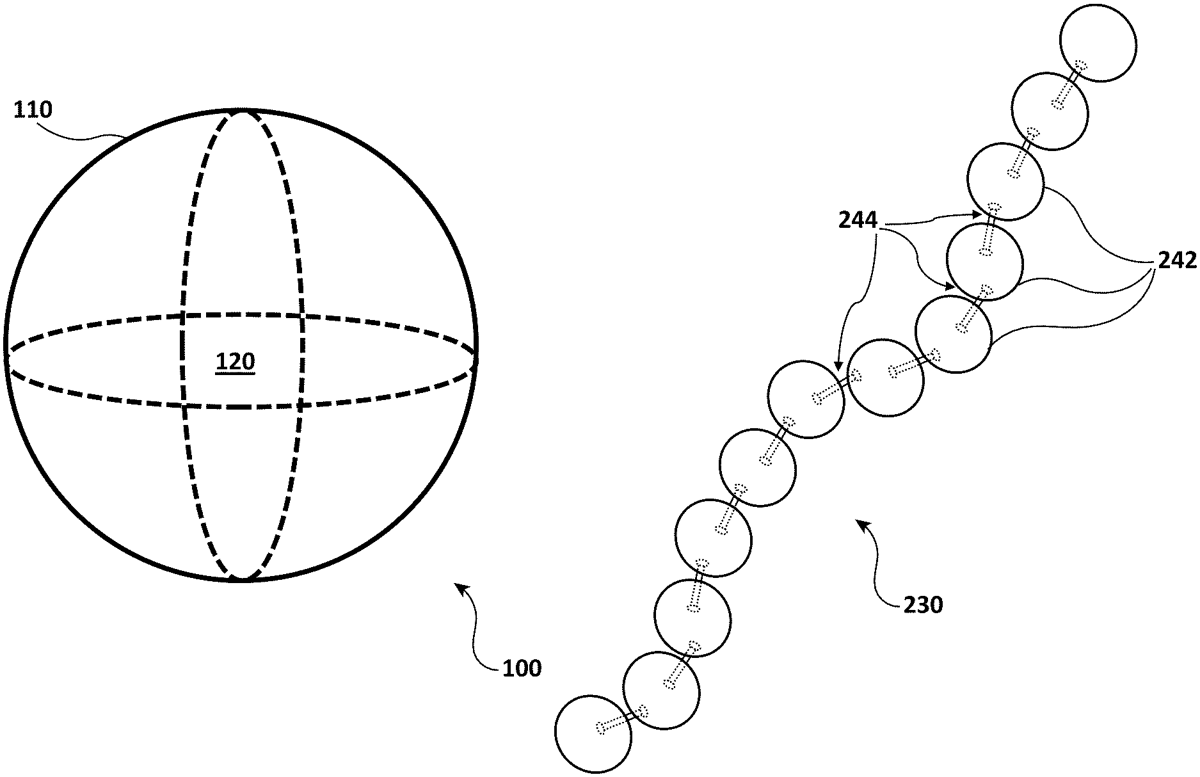

A disruptive projectile for use with a pneumatic weapon or similar device can include a shell defining an interior volume, the shell being frangible on impact with a target. The interior volume may be provided with a flexible line that may be arranged to extend and/or expand when released from the frangible shell on impact with the target, increasing an effective impact zone on the target. The flexible line may entangle with or otherwise impede operation of a rotatable element of the target.

Assignee: ROBOROUNDS, LLC
Inventors: Charles Barton Bollfrass
Filing date: 2023-08-07

The patent describes a frangible projectile designed for pneumatic weapons that ruptures upon impact, releasing a flexible line intended to expand and entangle with targets. This innovative design aims to increase the effective impact zone and disrupt the operation of rotatable elements on the target.

Claim 1

A projectile comprising: a shell defining an interior volume within, the shell configured to rupture upon impact with a target; and a flexible line contained within the interior volume of the shell; wherein the flexible line comprises a core material surrounded by a peripheral material, the core material having a greater hardness than the peripheral material. a shell defining an interior volume within, the shell configured to rupture upon impact with a target; and a flexible line contained within the interior volume of the shell; wherein the flexible line comprises a core material surrounded by a peripheral material, the core material having a greater hardness than the peripheral material.

Google Patents

https://patents.google.com/patent/US12305966

USPTO PDF

https://image-ppubs.uspto.gov/dirsearch-public/print/downloadPdf/12305966
