Apr 29, 2025

US12287187 - Method for reducing blasting vibration of tunneling

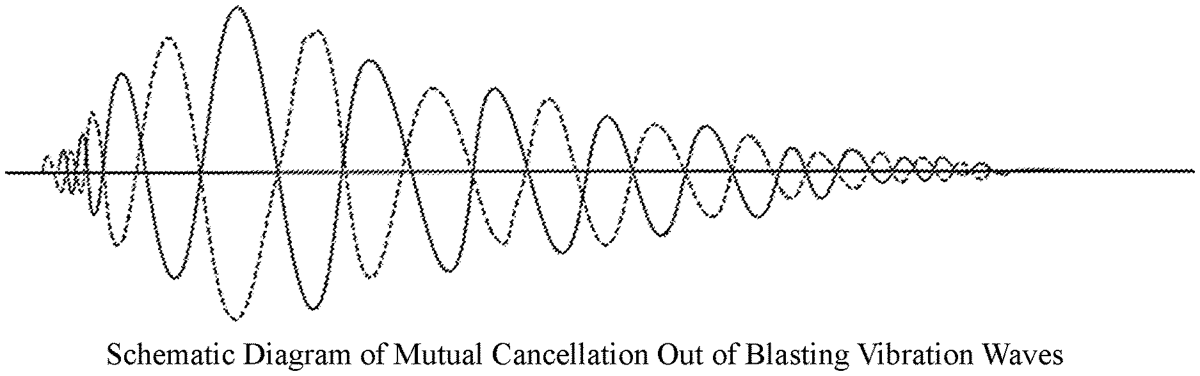

A method for reducing blasting vibration of tunneling includes the steps of: dividing the cutting holes into several groups according to different cutting methods; conducting layout and test blasting on one group of cutting holes; testing blasting parameters for the layout and test blasting; calculating an interval t; conducting layout and test blasting on at least two groups of cutting holes again; testing blasting parameters for the layout and test blasting of each group for the second time; taking the minimum interval t of each group as the interval for formal blasting of the remaining groups of cutting holes. The use of the characteristics of the wave in the invention can superpose the peaks and troughs of the vibration wave, and further cancel out mutually; reduce the peaks of the blasting vibration and fill the troughs of the blasting vibration.

Assignee: CHINA MCC5 GROUP CORP. LTD
Inventors: Yixin Luo, Li Luo
Filing date: 2022-08-11

This patent describes a method for reducing blasting vibrations during tunneling by organizing cut holes into groups and conducting test blasts to determine optimal intervals for formal blasting. The method utilizes the characteristics of vibration waves to minimize peak vibrations and enhance safety during the blasting process.

Claim 1

A method for reducing blasting vibration of tunneling, comprising: drilling a plurality of groups of cut holes on a wall of a tunnel; carrying out a first test blasting on a first group of cut holes; carrying out the first test blasting according to a first set of parameters comprising a period of a vibration wave of the first test blasting; calculating a first interval that equals one half of the time period from a peak to an adjacent trough in the vibration wave; carrying out a second test blasting on a second group of cut holes; carrying out the second test blasting according to a second set of parameters comprising a period of a vibration wave of the second test blasting; calculating a second interval that equals one half of the time period from a peak to an adjacent trough in the vibration wave in the second test blasting; and comparing a value of the first interval and a value of the second interval and assigning the value of the smaller interval as an interval for a formal blasting; blasting a remainder of the plurality of groups of cut holes according to the interval for the formal blasting; and blasting additional blast holes in the tunnel according to inter-row group millisecond blasting or single hole millisecond blasting according to an interval having a value that is the larger of the first interval and the second interval. drilling a plurality of groups of cut holes on a wall of a tunnel; carrying out a first test blasting on a first group of cut holes; carrying out the first test blasting according to a first set of parameters comprising a period of a vibration wave of the first test blasting; calculating a first interval that equals one half of the time period from a peak to an adjacent trough in the vibration wave; carrying out a second test blasting on a second group of cut holes; carrying out the second test blasting according to a second set of parameters comprising a period of a vibration wave of the second test blasting; calculating a second interval that equals one half of the time period from a peak to an adjacent trough in the vibration wave in the second test blasting; and comparing a value of the first interval and a value of the second interval and assigning the value of the smaller interval as an interval for a formal blasting; blasting a remainder of the plurality of groups of cut holes according to the interval for the formal blasting; and blasting additional blast holes in the tunnel according to inter-row group millisecond blasting or single hole millisecond blasting according to an interval having a value that is the larger of the first interval and the second interval.

Google Patents

https://patents.google.com/patent/US12287187

USPTO PDF

https://image-ppubs.uspto.gov/dirsearch-public/print/downloadPdf/12287187
