Apr 15, 2025

US12276486 - Method for producing a warhead component

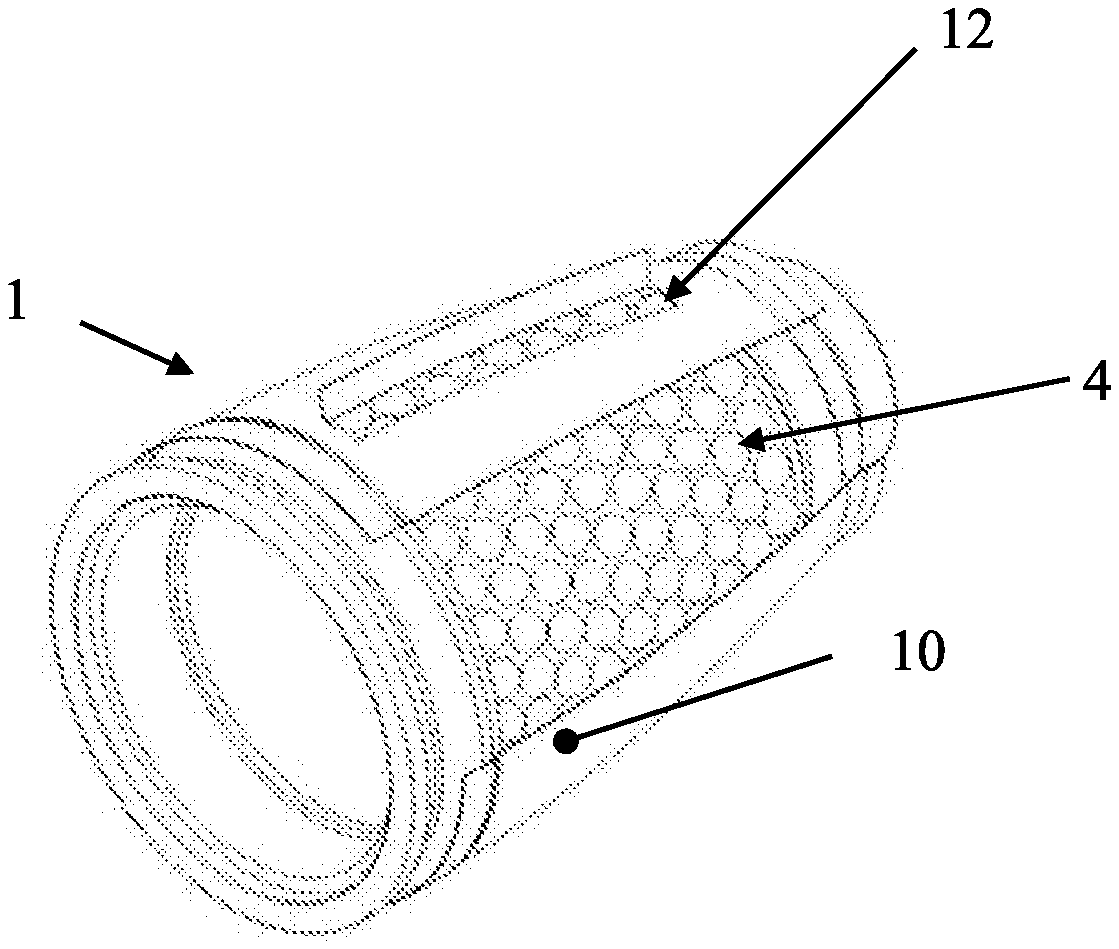

A method is provided for producing a warhead component including an inner shell. The method includes arranging a first casing of a thermoplastic to enclose the inner shell, arranging pre-formed projectiles between the first casing of thermoplastic and the inner shell, and heat-treating the first casing so that the first casing shrinks and fixes the pre-formed projectiles to the inner shell. A warhead, a projectile, and a bomb are also provided.

Assignee: BAE SYSTEMS BOFORS AB
Inventors: Christer Thuman, Hamzah Hamdan, Fredrik Thuvander, Oskar Malmqvist, Björn Johansson, Alexander Bark
Filing date: 2022-04-30

The patent describes a method for manufacturing a warhead component that involves enclosing an inner shell with a thermoplastic casing and positioning pre-formed projectiles between them. The process includes heat-treating the casing to shrink it, thereby securing the projectiles to the inner shell.

Claim 1

A method of manufacturing a component for a warhead including an inner shell, wherein the method includes the following steps: arranging a first casing of a thermoplastic around the inner shell, arranging pre-formed projectiles between the first thermoplastic casing and the inner shell, and heat treating the first casing so that the first casing shrinks and fixes the pre-formed projectiles to the inner shell. arranging a first casing of a thermoplastic around the inner shell, arranging pre-formed projectiles between the first thermoplastic casing and the inner shell, and heat treating the first casing so that the first casing shrinks and fixes the pre-formed projectiles to the inner shell.
