Apr 15, 2025

US12276478 - Firearm holster

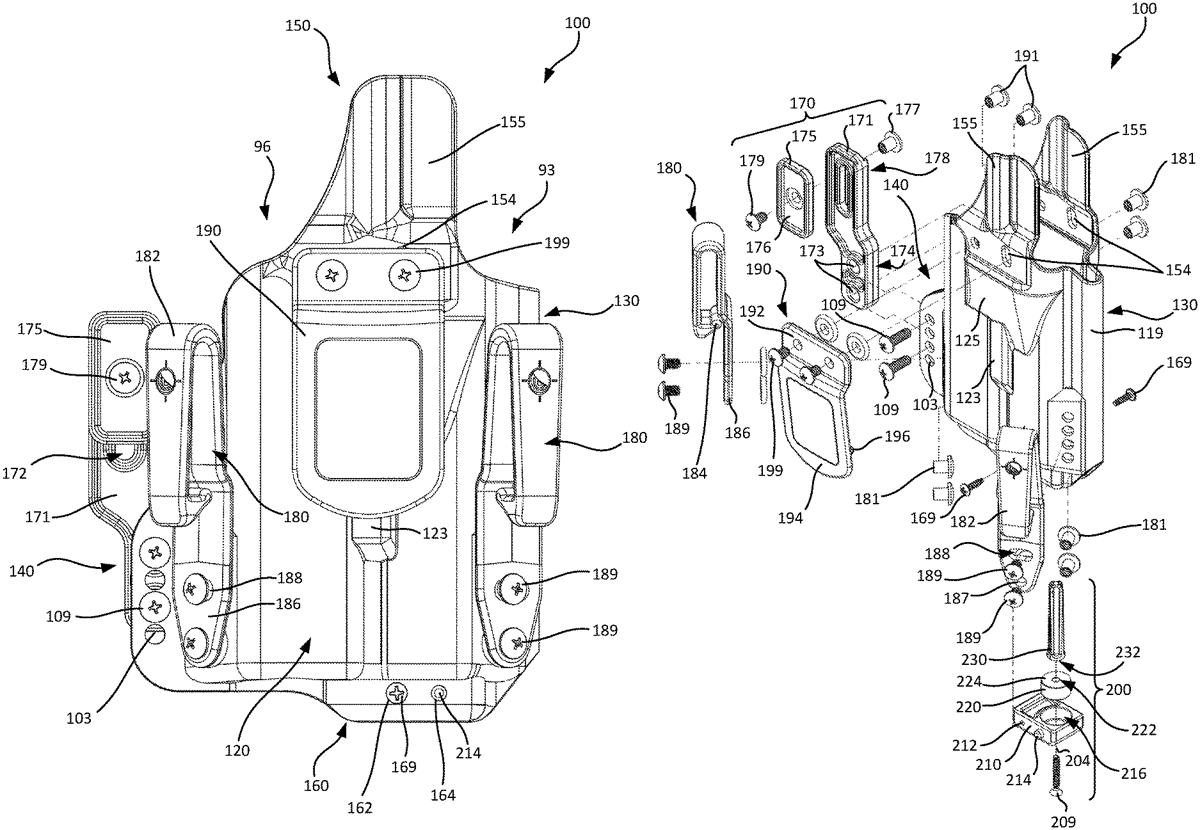

A firearm holster has an outer wall, extending between a muzzle end and a breech end, defining a cavity configured to receive a firearm. A magnet and/or magnet assembly may be included, wherein the magnet is at least partly in the cavity at the muzzle end. The magnet assembly is coupled to the muzzle end and includes a magnet housing coupled to the outer wall and connected to the magnet. The holster may include a protruding wedge on a side panel of the outer wall, wherein the protruding wedge comprises a surface formed at an angle from the longitudinal holster axis. The wedge presses against a user's body to help alleviate the holster sagging. The holster may also have a spacer assembly, a portion of which can be configured to press against a user's body to achieve a desired resting angle of the holster.

Assignee: Mission First Tactical, LLC
Inventors: Bobby McGee, Christopher Pettit
Filing date: 2022-11-08

firearmholster

The patent describes a firearm holster featuring an outer wall that defines a cavity for receiving a firearm, with a magnet assembly positioned at the muzzle end to enhance retention. Additionally, the holster includes a protruding wedge and a spacer assembly designed to improve comfort and stability when worn by a user.

Claim 1

A firearm holster comprising: (a) an outer wall defining a cavity configured to receive a firearm, wherein the outer wall has a muzzle end configured to house a muzzle of the firearm and a breech end; and (b) a magnet assembly coupled to the muzzle end, wherein the magnet assembly comprises a magnet housing coupled to the outer wall, a magnet coupled to the magnet housing, and a fastener connecting the magnet housing and the magnet, wherein the magnet housing comprises a housing coupling aperture, and the magnet comprises a magnet coupling aperture, wherein the housing coupling aperture and the magnet coupling aperture are disposed along a common axis, wherein the fastener couples the magnet housing and the magnet along the common axis, wherein the magnet is positioned at least partially in a muzzle end of the cavity and is configured to be in magnetic communication with a crown of the muzzle of the firearm when the firearm is positioned in the cavity, and wherein the common axis spans along a bore of the firearm when the firearm is positioned in the cavity. (a) an outer wall defining a cavity configured to receive a firearm, wherein the outer wall has a muzzle end configured to house a muzzle of the firearm and a breech end; and (b) a magnet assembly coupled to the muzzle end, wherein the magnet assembly comprises a magnet housing coupled to the outer wall, a magnet coupled to the magnet housing, and a fastener connecting the magnet housing and the magnet, wherein the magnet housing comprises a housing coupling aperture, and the magnet comprises a magnet coupling aperture, wherein the housing coupling aperture and the magnet coupling aperture are disposed along a common axis, wherein the fastener couples the magnet housing and the magnet along the common axis, wherein the magnet is positioned at least partially in a muzzle end of the cavity and is configured to be in magnetic communication with a crown of the muzzle of the firearm when the firearm is positioned in the cavity, and wherein the common axis spans along a bore of the firearm when the firearm is positioned in the cavity.

Google Patents

https://patents.google.com/patent/US12276478

USPTO PDF

https://image-ppubs.uspto.gov/dirsearch-public/print/downloadPdf/12276478
